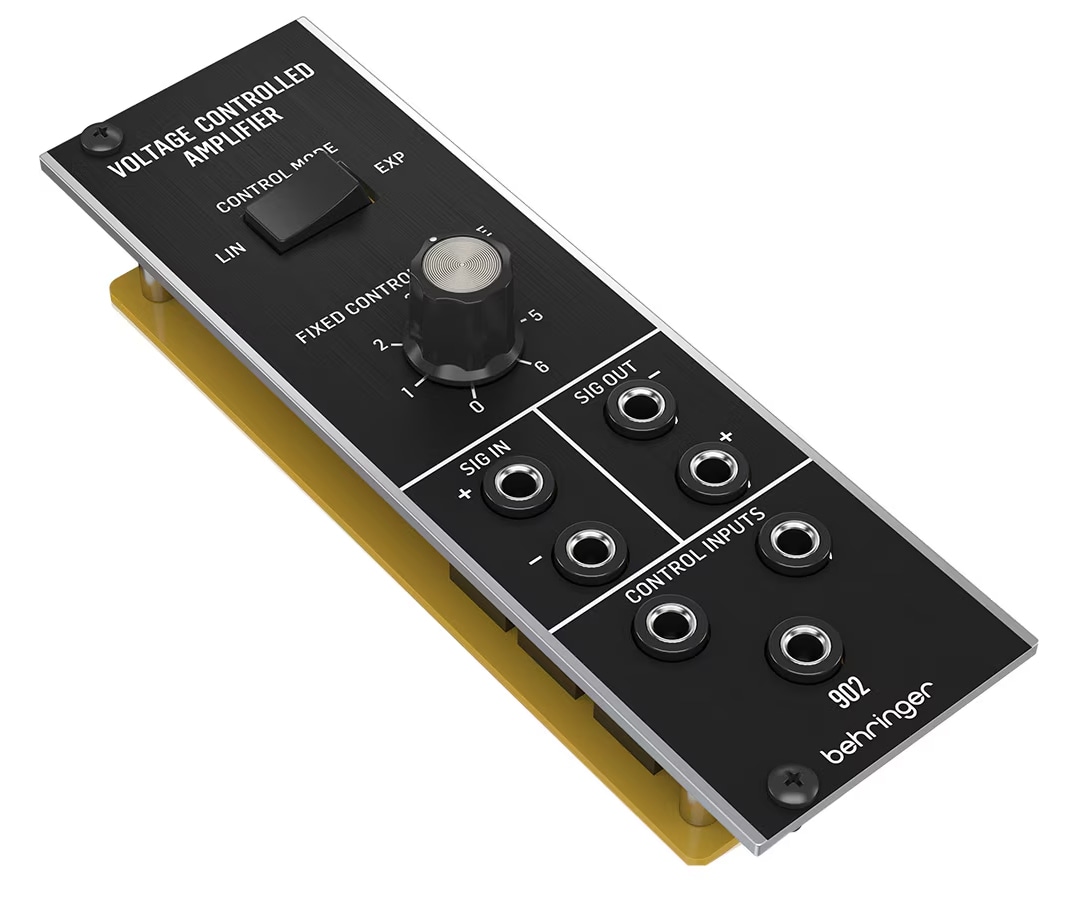

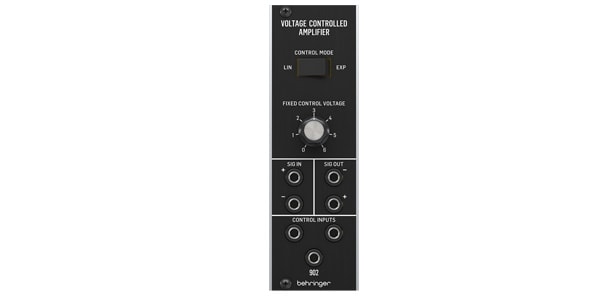

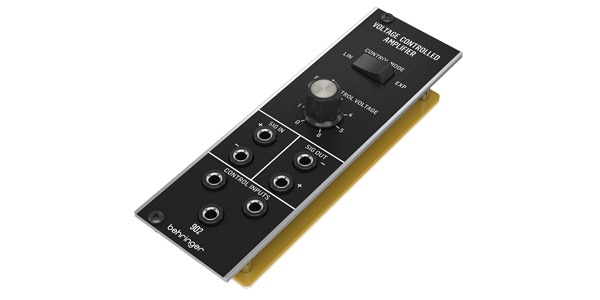

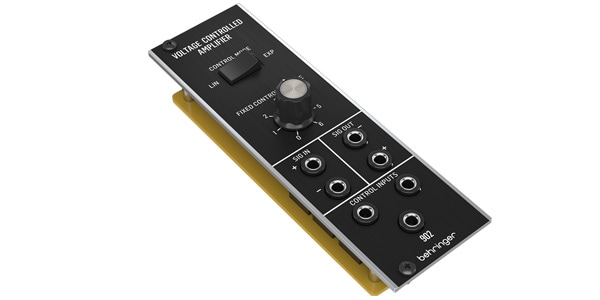

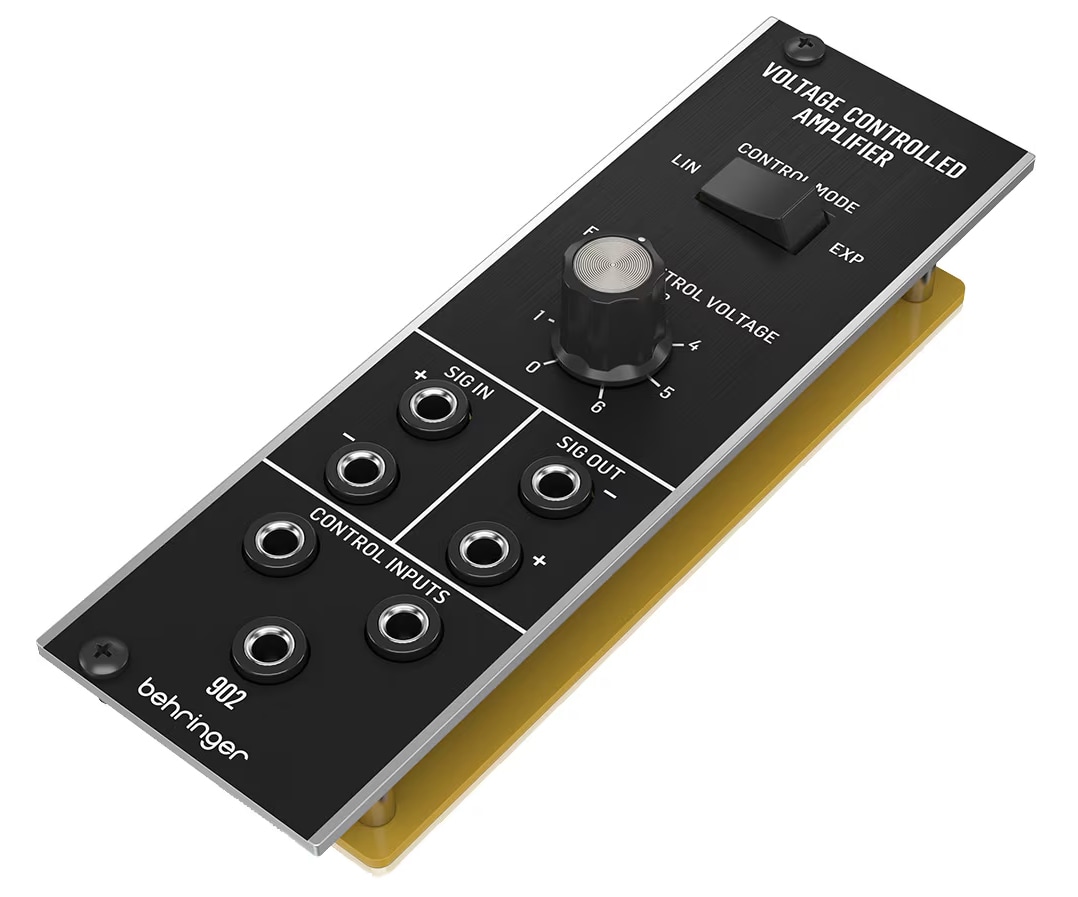

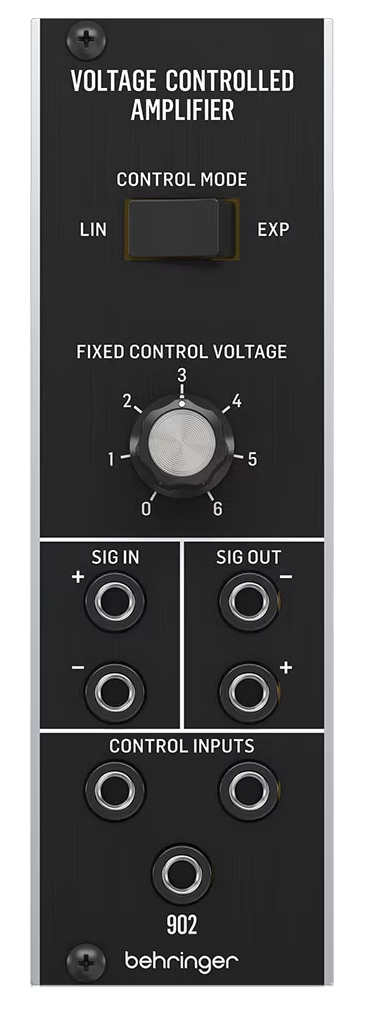

BEHRINGER / 902 VOLTAGE CONTROLLED AMPLIFIER

Faithfully reproduces the vintage sound of the 70's. Module capable of amplifying both audio and CV signals.

Analog modular synthesizerFeatures

902 VCA module with vintage 70's sound
Features reproduction circuits from the Modular 55, 35, and 15 series
Module has inverted and non-inverted signal inputs and outputs for simultaneous use
Amplification of both audio and CV signals possible
Switchable audio response both linearly and logarithmically
CV input and very flexible manual control are also provided
Eurorack specifications: 8 HP, 50 mA +12 V, 45 mA -12 V


◆Analog synthesizer module

Control mode: Rocker switch, linear/logarithmic response switchable
Fixed control voltage: 1 rotary knob, 0-6 V, selectable
Signal In: 3.5 mm TS jack, 2 mono x 2
Impedance: 9 kΩ unbalanced
Signal Out: 3.5 mm TS jack, 2x mono
Impedance 1.1 kΩ unbalanced
Output Noise: -78 dBu @ unity gain, 22 Hz-22 kHz
Control Inputs: 3.5 mm TS jack, 3 mono x 3
Impedance: 100 kΩ unbalanced
CV Input Range: -6 V to +6 V
Power supply: Eurorack
Current consumption: 50 mA (+12 V), 45 mA (-12 V)
Power supply: 100 V AC, 50/60 Hz
Dimensions: 40 x 129 x 35 mm
Rack unit: 8 HP
Mass: 0.09 kg
