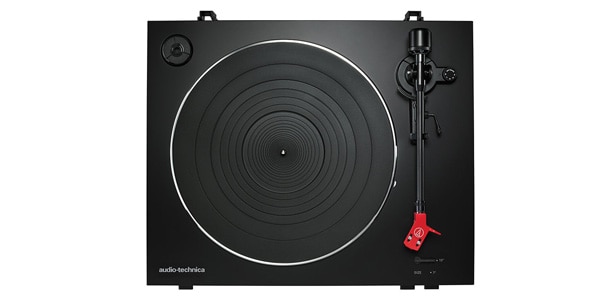

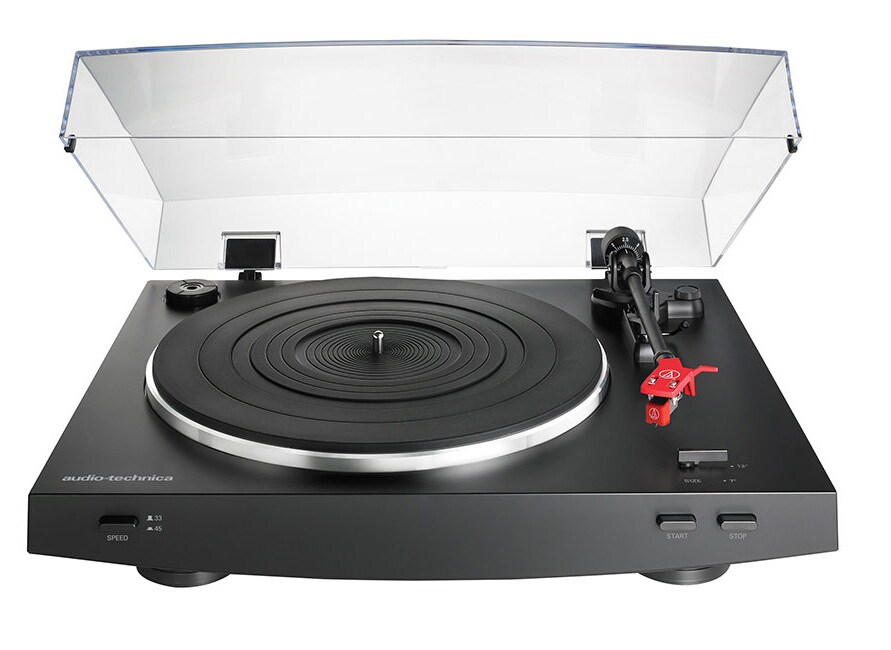

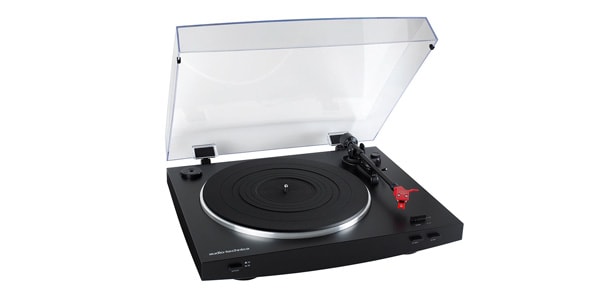

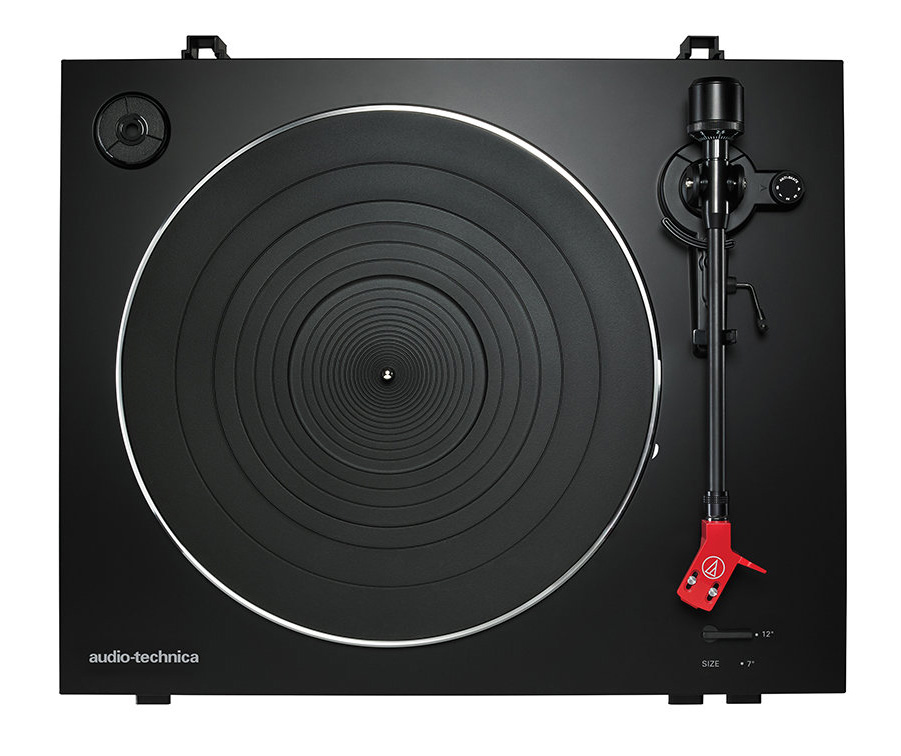

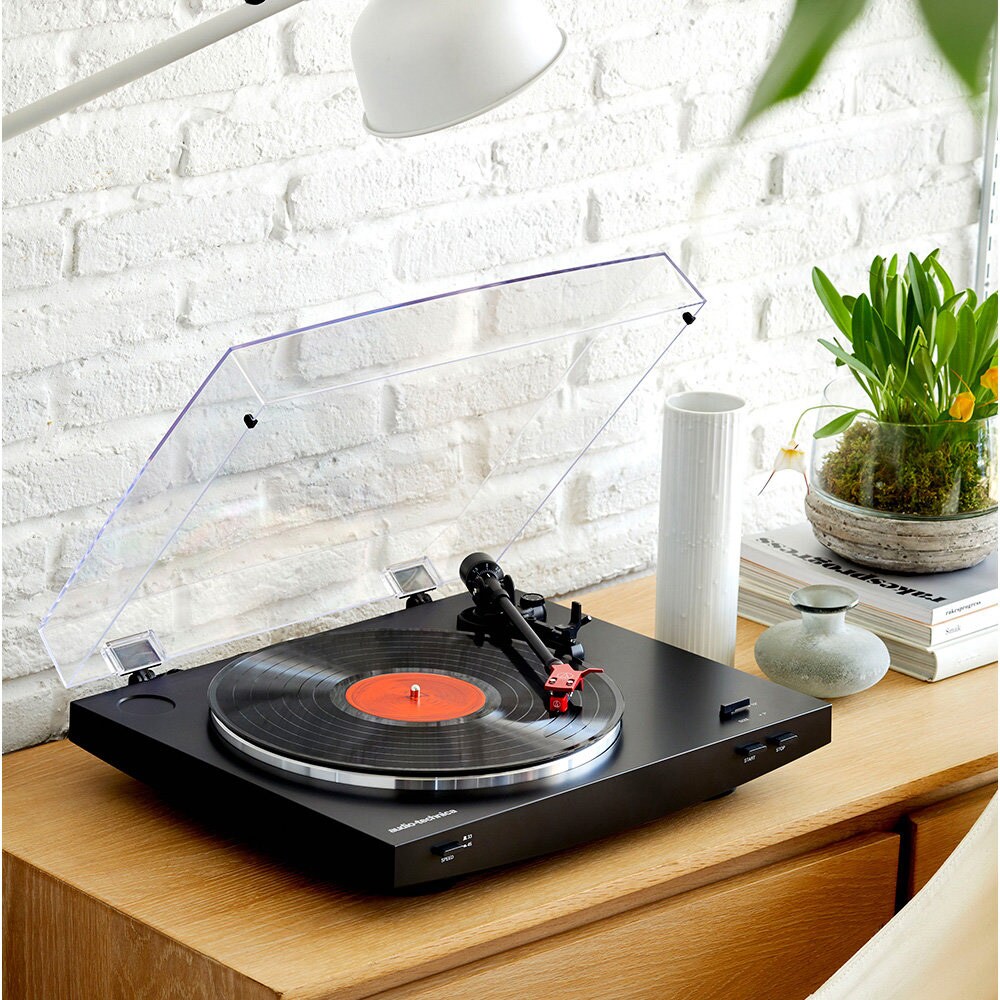

audio technica / AT-LP3 Fully automatic turntable

Belt drive type fully automatic playback turntable with universal type tone arm and head shell.

■ Fully automatic turntable
■ Belt drive type
■ Output level
PHONO: Standard value 3.5mV (1kHz, 5cm / sec)
LINE: Standard value 220mV (1kHz, 5cm / sec)
■ PHONO preamp gain (MM): standard value 36dB, equalizer characteristic RIAA
■ PHONO preamp gain (MC): standard value 56dB, equalizer characteristic RIAA

■ Tone arm specifications
Type: Static balance type straight tone arm
Effective length: 221.5mm
Overhang: 19mm
Maximum tracking error angle: less than 3°
Needle pressure adjustment range: 1 to 4 g
Usable cartridge mass range: 14.5 to 20g (including head shell)

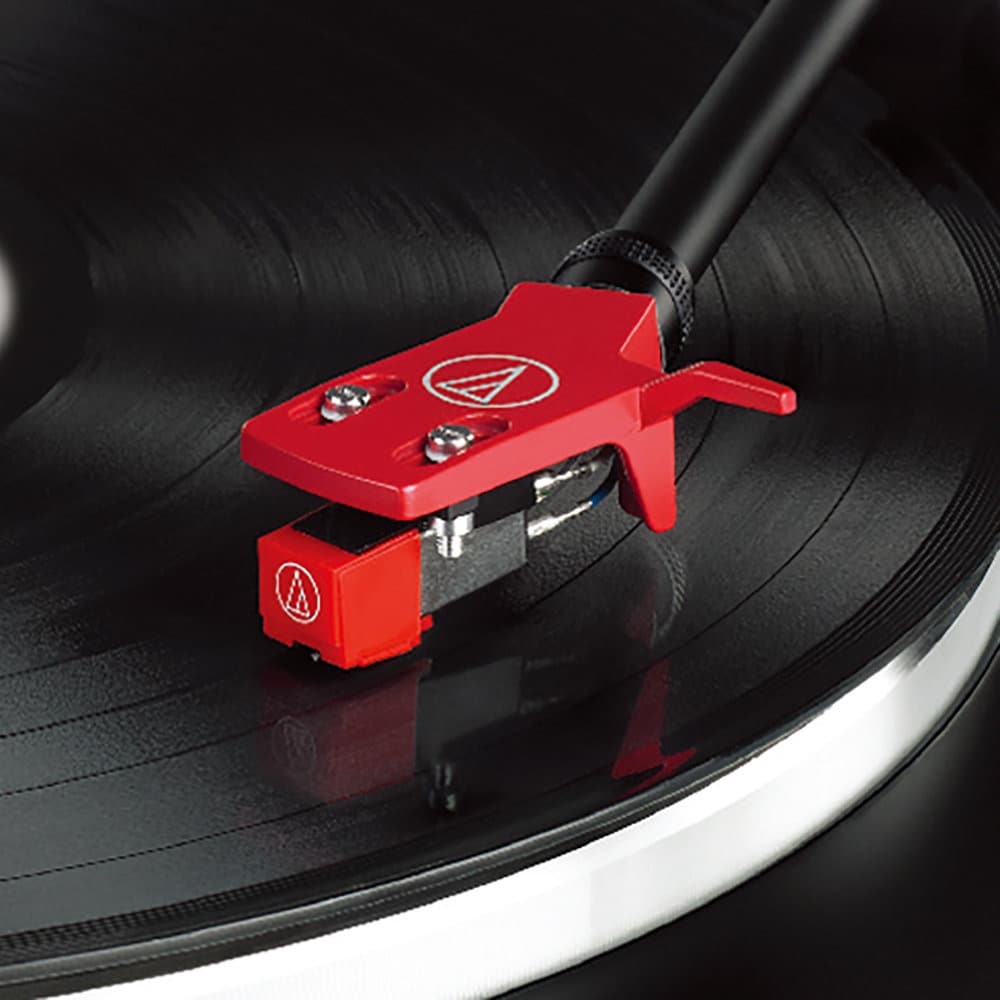

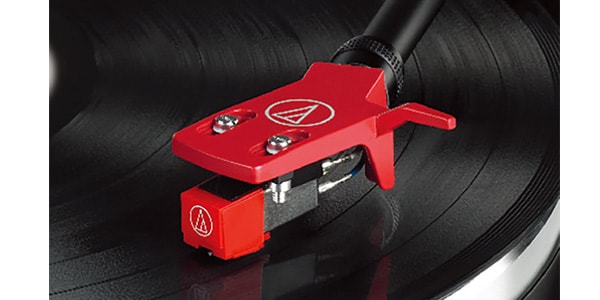

■ Cartridge and headshell specifications

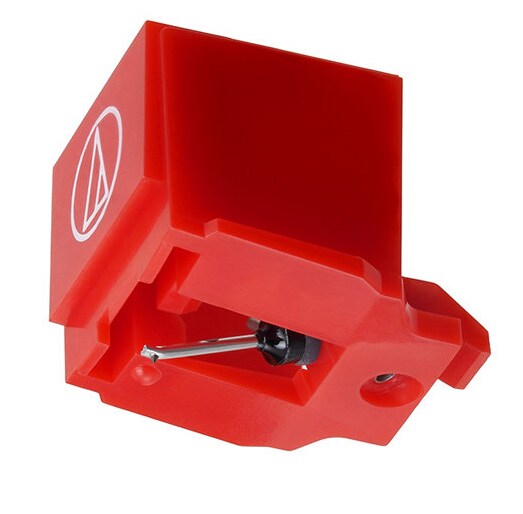

Cartridge model: AT91R
Cartridge type: VM type stereo cartridge
Recommended load impedance: 47kΩ
Output voltage: 3.5mV (1kHz, 5cm / sec)
Stylus: Joined round needle (0.6mil)
Cantilever: Aluminum pipe
Stylus pressure range: 1.5 to 2.5 g (standard value 2.0 g)
Cartridge weight: 5g
Head shell model: AT-HS3
Headshell mass: 11.1g
Headshell overhang adjustment range: ± 8 mm

■ General specifications
Power condition: AC100V, 50Hz / 60Hz
Power consumption: 2W
External dimensions: H128 x W435 x D353mm
Weight: 5.2kg

■ Accessories
Rubber mat, dust cover, platter (with drive belt), counterweight, VM type stereo cartridge (AT91R) with head shell (AT-HS3), EP adapter, power cable
