Make Noise / System Shared Black & Gold Plus

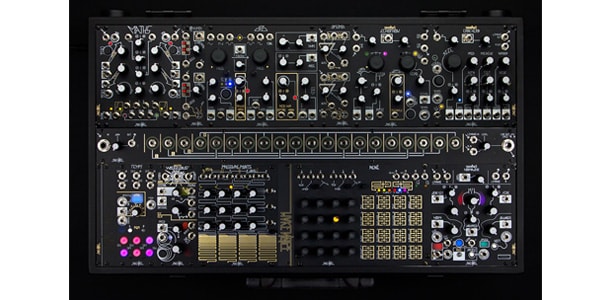

A flagship system of Make Noise modules with 11 representative modules in a robust 7U Steel CV Bus Case. Luxuriously mounted modules required for sound creation and performance, which includes oscillators, sequencers, and low-pass gates. The “CV Bus” utility module allows you to efficiently patch modules together.

Installed modules
Model name Main function WIDTH
Maths Multifunction Module 20 HP
modDemix Audio / CV Processor 6 HP
DPO Dual Primary Oscillator 28 HP
Optomix Dual Lowpass Gate 8 HP
Echophon Pitch Shifter / Echo 20 HP
Erbe-Verb Stereo Reverb 20 HP
Tempi Polyphonic Timeshift Clock 10 HP
Richter Wogglebug Random Voltage Generator 10 HP
Pressure Points Controller Module 20 HP
Rene Cartesian Sequencer 34 HP
Morphagene Tape Recorder 20 HP
Blind Plate Blind Plate Total 12 HP
Case
7U Steel CV Bus Case Make Noise Original Portable Case 208 HP
CV Bus
A 1U size "CV Bus" utility module is mounted in the center of the case. The CV Bus has three functions, and it greatly improves the usability and patching efficiency of the system.

1/4-inch phone input with gain control, ideal for capturing external signals-minijack output
5x4 multiples with a layout designed to allow easy connection between distant modules
L/R input with level control for final system output-headphone / TRS stereo output
Robust 7U Steel CV Bus Case
The case is portable with a handle and a detachable lid. You can easily take it to the studio or a live venue.

You can add up to 12 HP of Eurorack modules by removing the blank panels.

Width 104 HP
6.5mm depth
External dimensions
Width: 54.6 cm
Depth: 13 cm
Height: 7 cm
Weight 1.93Kg
