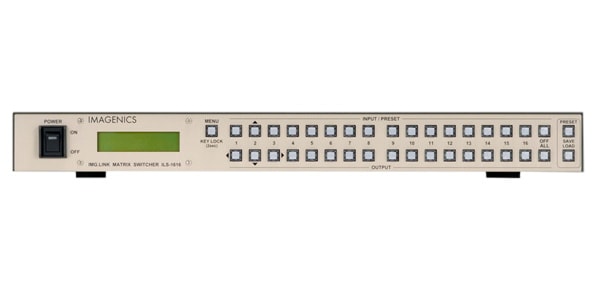

IMAGENICS / ILS-1616/0804

IMAGENICS' original coaxial transmission standard for HDMI (DVI) signals, a matrix switcher for IMG.Link signals.

■IMG.Link switcher signal 8 input 4 output specifications
■Input digital serial video signal (INPUT 1 to 8):
Original re-encoding digital serial signal 8 lines 1.0 Vp-p 75 Ω BNCx8
Video bit rate after original re-encoding 2.592 Gbps NRZI signal (fixed bit rate, audio is 9.216 Mbps)
Original bidirectional communication link function
■Output digital serial video signal (OUTPUT 1 to 4):
Original re-encoding digital serial signal 4 lines 1.0 Vp-p 75 Ω BNCx4
Video bit rate after original re-encoding 2.592 Gbps NRZI signal (fixed bit rate, audio is 9.216 Mbps)
Original bidirectional communication link function
■Coaxial transmission distance:
(Cable name manufactured by Kanare Electric, maximum extension distance/average actual distance)
L-3C2V: 30m/approx. 40m
L-3CFB: 60m approx. 80m
L-5C2V: 60m approx. 80m
L-5CFB: 110m approx. 130m
L-7CFB: 150m approx. 170m
L-7CHD: 210m approx. 230m
(The distance may be shorter depending on the installation environment, etc.)
■SIZE: 422(W)x44(H)x230(D)mm (excluding protrusions) Approx. 4.5 kg
