MXL / MXL-REVELATION II

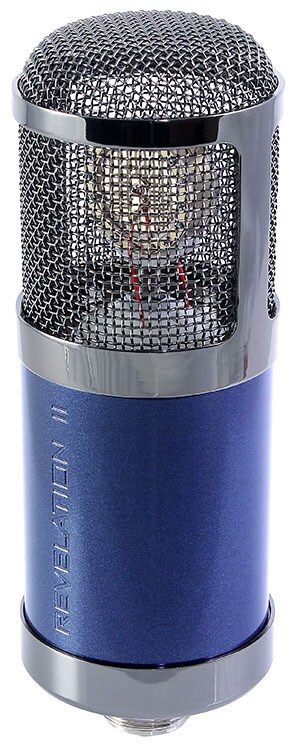

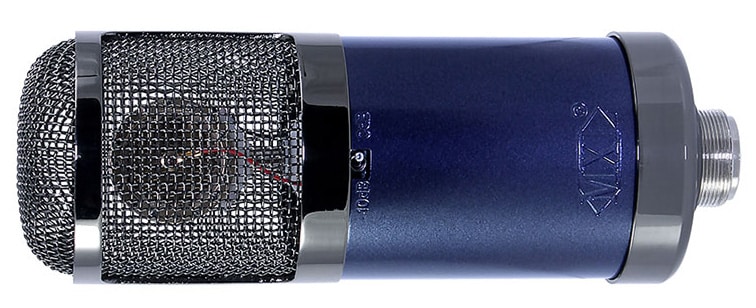

The MXL Revelation II is a studio microphone that delivers the warmth of classic tube mics with a rich midrange for a unique sound.

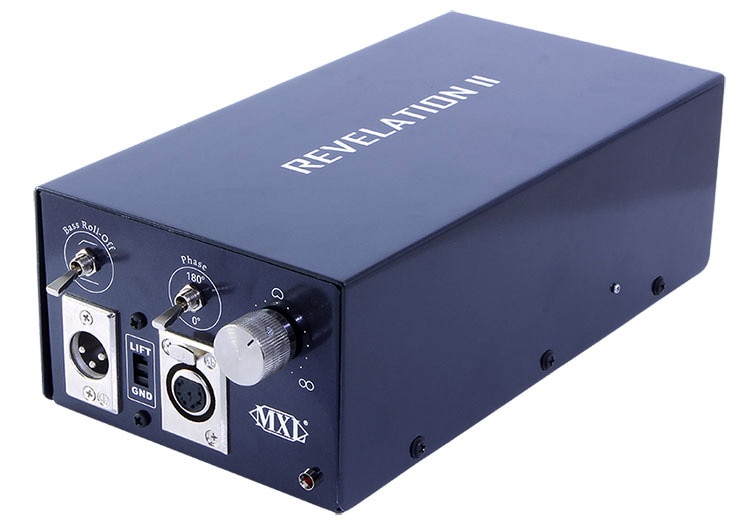

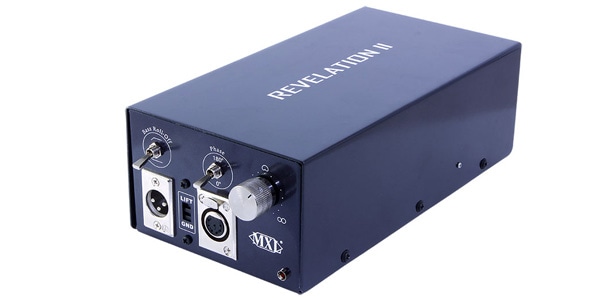

Dual gold-sputtered 6-micron diaphragms and hand-selected EF86 pentodes give Revelation II its iconic warmth and character. A variable knob on the power module allows for seamless selection of cardioid, omnidirectional, or figure-8 patterns. Deliver classic sound for any recording application, including vocals, instruments, and percussion. ■Vacuum Tube Microphone
■Diaphragm: Dual-sputtered gold, 6 micron
■Vacuum Tube: EF86

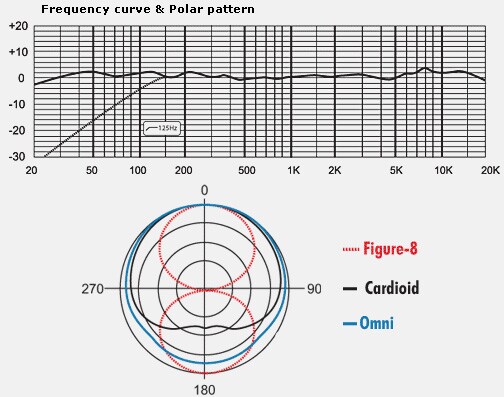

■Frequency Response: 20 Hz - 20 kHz
■Directivity: Continuously continuous
■Sensitivity: -40 dB re 1 V/Pa
■Impedance: 140 Ω
■PAD: 0 dB, -10 dB
■High-Pass Filter: 12 dB/octave @ 125 Hz
■Equivalent Noise: -18 dB (A-weighted IEC 651)
■Signal-to-Noise Ratio: 76 dB
■Maximum SPL: 138 dB SPL
■Dimensions: 190 mm x 63.5 mm
■Weight: 907 g
■Accessories: Cable (power module to microphone), aluminum flight case, cloth, power module, suspension holder, microphone cable
