audio technica / ATW-DT3101HH1

Variations

A high quality transmitter equipped with audio technica's unique codec. It uses a cH-style input connector that is waterproof and sweat-resistant. It achieves low latency of 2.5 ms. Up to 10 waves can be operated simultaneously in the B band.

A high-quality transmitter equipped with a newly developed proprietary codec.

■Features
-Equipped with Audio-Technica's original codec designed for high quality sound.
-Realizes latency of 2.5 ms.
-Can operate 10 waves in the same space simultaneously with high stability in the B band.
-Reliable maximum output of 10 mW.
-Available in multi-channel mode (HD mode).
-Equipped with a mute switch that allows you to switch modes.
-Multifunction button with many functions.

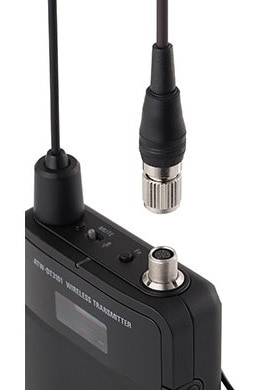

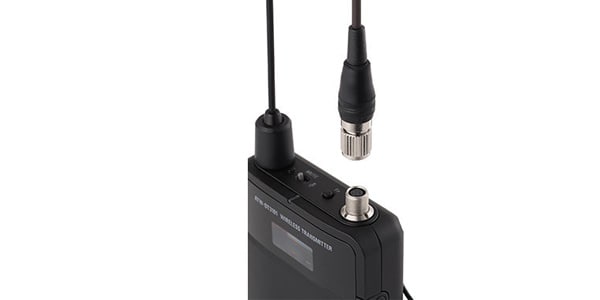

-Uses a cH-style input connector that is waterproof and sweat-resistant and compatible with both microphones and instruments.
-Can be changed from -10 to 20 dB in 2 dB steps. Equipped with a +10 dB (sense) function for tie clip microphones.
-Uses an OLED display that is easy to see in any environment.
-Simple operation is possible when used with a Ni-MH compatible charger.
-Total management is possible with the dedicated software ""Wireless Manager"".

■System specifications
Communication frequency band: 806.125 - 809.750MHz
Minimum frequency step: 125kHz
Modulation method: π/4shift DQPSK
Occupied bandwidth: 192kHz or less
Dynamic range
ATW-DT3101 Mic input: 120dB or more, A-weighted, typical
ATW-DT3101 Inst input: 108dB or more, A-weighted, typical
Total harmonic distortion: 0.1% or less (at 1kHz, -20dBFS)
Delay: 2.5ms or less *When outputting XLR.
Operating range: 120m *In an open environment with no interfering signals.
Frequency response: 20 - 22,000Hz
*Varies depending on the microphone installed.
Number of simultaneous channels: 10ch (normal mode), 15ch (HD mode)

*Varies depending on radio environment and usage conditions.

ATW-DT3101HH1
RF output: High: 10mW, Low: 2mW
Input terminal: 4-pin locking connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +5V
High-pass filter (low-freq. roll-off): 80Hz, 120Hz, 160Hz 12dB/Octave

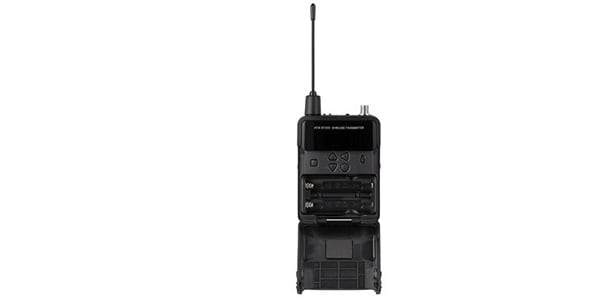

Power supply: 2 x AA alkaline batteries or 2 x AA NiMH rechargeable batteries
Operating temperature range: -5℃ - +40℃
Battery life:
When using AA NiMH rechargeable batteries: Approximately 7 hours (1900mAh) (High), approximately 9 hours (2500mAh) (High)
When using AA alkaline batteries: Approximately 6 hours (High)
External dimensions: H82×W64×D23mm
Weight (excluding batteries): Approx. 105g

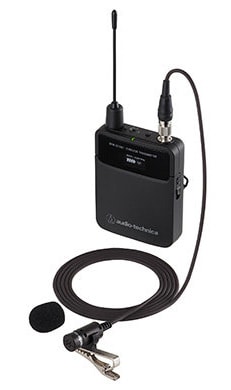

Accessories: Pouch, lavalier microphone AT829cH
