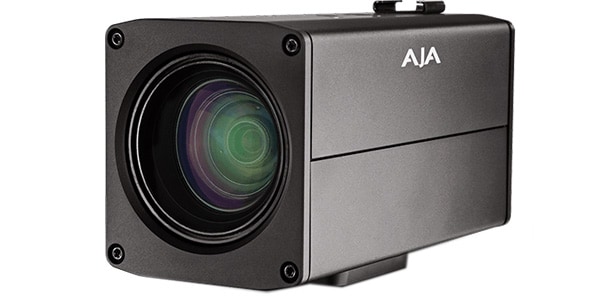

AJA Video Systems / RovoCam

Compact cameras developed for industrial, enterprise, security, audiovisual and broadcast applications.

■Compact video camera with HDBaseT
■Camera module:
・Sony FCB-ER8300
■Video format:
・(UltraHD) 3840x2160p 25, 29.97
・(HD) 1080p 50, 59.94
・(HD) 1080i 50, 59.94
・(HD) 720p 50, 59.94
・(SD) 720x480p 59.94
・(SD) 720x576p 50
■Pixel format:
・YUV 4:2:2
・RGB 4:4:4
・Sensor
・Progressive scan CMOS, 1/2.3 3840x2160 8.93 megapixels
■Image processing:
・Noise reduction (2D/3D)
・Visibility Enhancer ICR (continuous) Slow AE
・High sensitivity
・Gamma
・Character generator
・Defog
・Color enhancement picture effect
・Spherical privacy zone masking
・E-Flip
■Lens: Focal length: 3.9mm-46.8mm
■Focus: Auto, manual, one-push trigger mode
■Lens control:
Zoom, focus, iris, IRCS
■F-stop: 1.8-2.0
■Horizontal angle of view:
70.7 degrees (wide side), 6.2 degrees (telephoto side)
■Magnification:
12x optical zoom, 20x (UltraHD) or 24x (HD) with Sony Super Resolution Zoom
■Optical zoom: 12x
■Super Resolution Zoom:
・UHD: 1.67x (up to 20x in combination with 12x optical zoom)
・HD: 2.0x (up to 20x in combination with 12x optical zoom) 24x)
■White balance:
Auto, Auto Trace White Balance (ATW), Indoor, Outdoor, One Push, Manual, Sodium Vapor
■Digital video output:
・HDBaseT (RJ-45, requires receiver)
・Cat 5e 70m (230 ft) or Cat 6a 100m (328 ft)
■Analog audio input:
1 x 3.5mm TRS input with 3V PiP (plug-in power)
■Control:
1 x 3.5mm TRS input supporting RS232/VISCA camera control *RS-232 control from RovoRx-HDMI is also possible
■User interface:
・VISCA compatible control software and hardware
・AJA control software
・1 x USB port supporting RS-232 control via 3.5mm TRS cable connection

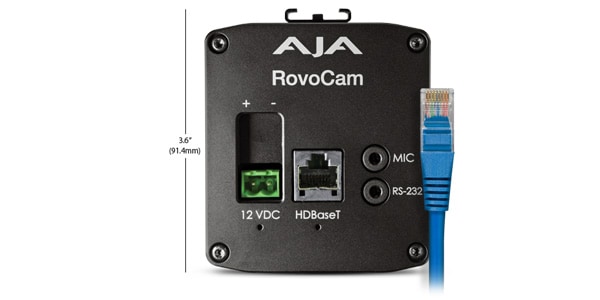

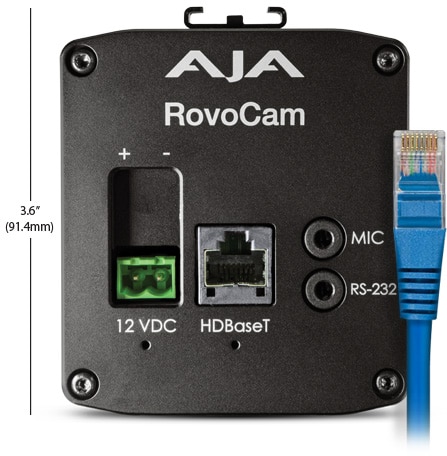

■SIZE: 71(W)x91.4(H) x149.9(D) 1.0 kg (2.2 lbs)
*Includes tripod mount and cold shoe
