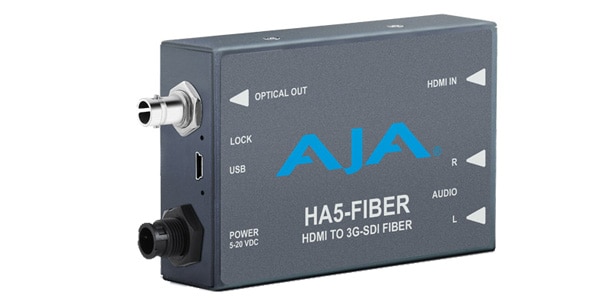

AJA Video Systems / HA5-Fiber

Converts DMI to 3G-SDI over single mode 1310 nm fiber optic cable (ST connector).

■Converter (HDMI to 3G-SDI)
■Input formats:
・(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
・(HD) 1080i 25, 29.97, 30
・(HD) 720p 50, 59.94, 60
・(SD) 625i
・(SD) 625p
・(SD) 576p
・(SD) 525i
・(SD) 525p
・(SD) 480p
Note: HDCP content is not supported

■Output formats:
・(HD) 1080i 25, 29.97, 30
・(HD) 1080p 23.98, 24, 25, 29.97, 30
・(HD) 1080p 50, 59.94, 60 - SMPTE 425-1 Level A mapping structure 1 (1920 x 1080 4:2:2 10-bit YCbCr)
・(HD) 720p 50, 59.94, 60
・(SD) 625i 25
・(SD) 525i 29.97
■Video input:
・HDMI embedded audio, up to 8 channels
■Video output:
・Single mode optical fiber, ST connector compatible with SMPTE-259/292/424 3G/HD/SD-SDI
■Audio input:
・2 channels of RCA analog audio (nominal -10dBu)
■Audio output:
・SDI Embedded Audio
■Optical fiber output:

・Wavelength: 1310nm
・Power output: -2dBm (standard)
■SIZE: 112(D)x25mm (H)x61mm(D) 0.2 kg
