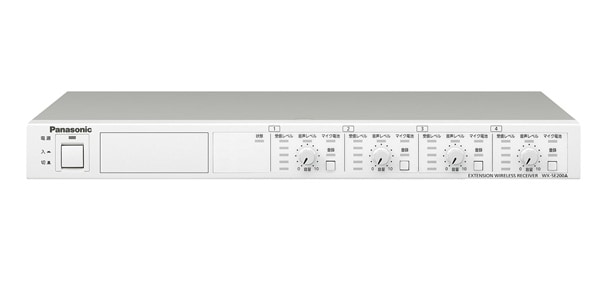

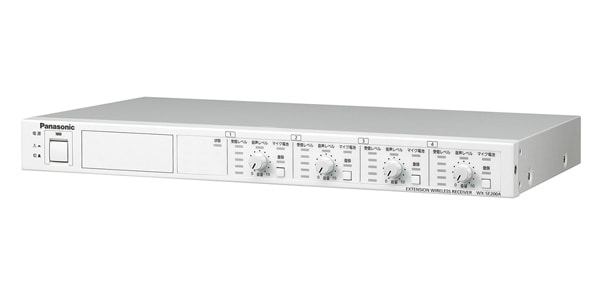

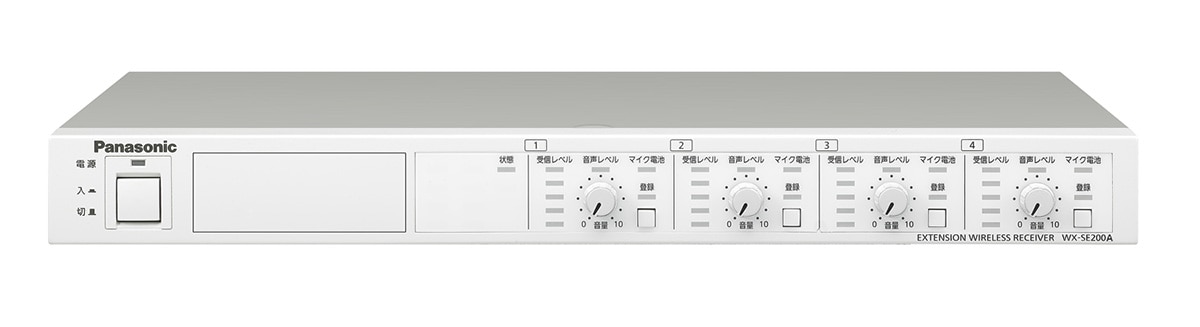

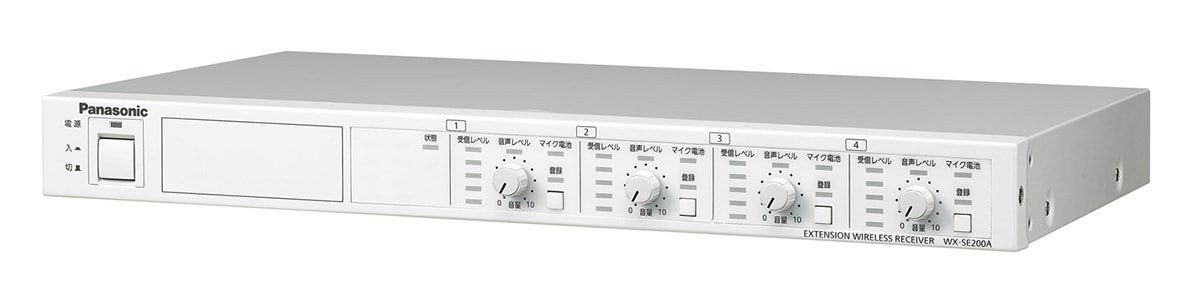

PANASONIC / WX-SE200A

This is an additional wireless receiver for the PANASONIC 1.9 GHz digital wireless microphone system, WX-SR200 series. It comes standard with a 4-channel tuner. You can connect up to 3 units to the WX-SR202 or WX-SR204 to increase the number of channels. Comes with rack mount brackets.

This unit is an additional wireless receiver for the 1.9GHz digital wireless microphone system.
By connecting this unit to a wireless receiver, it receives audio from a wireless microphone or portable wireless transmitter via the wireless antenna and wireless receiver, and outputs it with the volume adjusted.
This unit can use four wireless microphones or portable wireless transmitters.

■ Features
Up to 16 wireless microphones can be used in a single system
By connecting this unit to a wireless receiver (up to three units), up to 14 wireless microphones can be used in a WX-SR202A system, and up to 16 wireless microphones can be used in a WX-SR204A system. However, if a coaxial conversion unit is used for wiring with the wireless antenna, the maximum number of wireless microphones is eight. (Up to one additional wireless receiver is allowed)
Up to 16 wireless microphones can be used in a single system
Audio output is available as separate channel output or mixed output, and can be selected according to the connected device.

■Specifications
- Power supply: AC100 V 50/60 Hz
- Power consumption: 10 W
- Frequency response: 50 Hz - 15 kHz
- S/N
- Channel output: 70 dB or more
- Mixing output: 64 dB or more

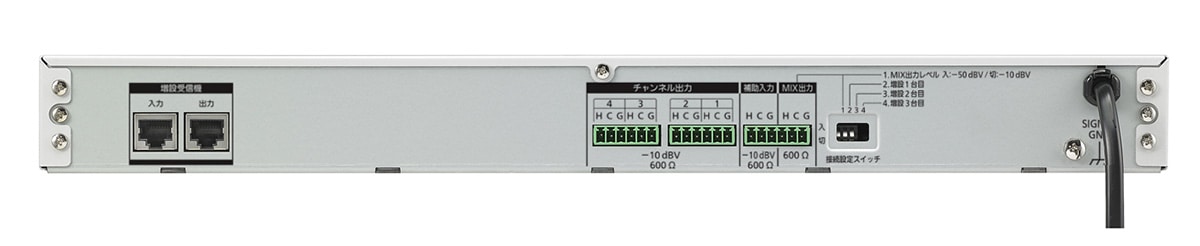

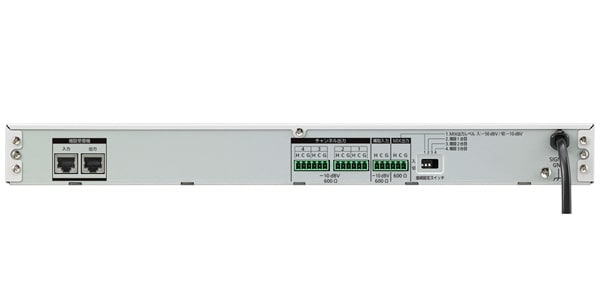

- Expansion wireless receiver connection terminal
- Number of terminals: 2 (input: 1, output: 1)
- Connector: RJ-45
- Cable used: CAT5/CAT5e/CAT6 straight cable
- Auxiliary input terminal
- Connector: Connector type terminal block
- Input characteristics: -10 dBV balanced 600 Ω
- Channel output terminal
- Number of systems: 4
- Connector: Connector type terminal block
- Output characteristics: -10 dBV balanced 600 Ω
- Mixing output terminal
- Connector: Connector type terminal block
- Output characteristics: -10 dBV/-50 dBV balanced 600 Ω
・Display (indicator)

Common: Power, status

Each channel: Reception level (5 levels), audio level, microphone battery, registration
・Connection terminal for setting and maintenance

Connector: USB micro B
・Operating temperature range: 0 ℃ - 45 ℃
・Operating humidity range: 0 % - 90 % (no condensation)

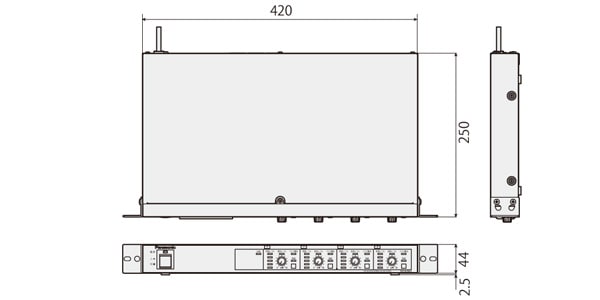

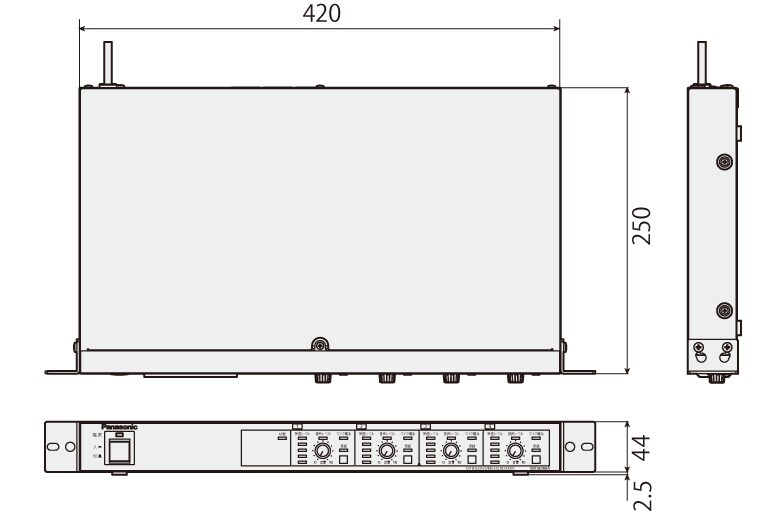

・Dimensions: Approximately 420 mm (width) x 44 mm (height) x 250 mm (depth) (excluding protruding parts such as rubber feet and knobs)
・Weight: Approximately 2.8 kg
・Finish: AV light gray paint
