PANASONIC / WX-SR202A

PANASONIC 2ch wireless receiver. Up to eight WX-SA250A/WX-SA250 wireless antennas can be connected. Rack mount brackets included.

◆Main features
- Equipped with 2-channel tuner as standard
- Can connect up to 8 WX-SA250A or WX-SA250 wireless antennas
- Rack mounting brackets included
* If the device you are connecting to this unit includes even one WX-SE200 or WX-SA250, be sure to set the compatibility mode to ""On"".

Power supply: AC100V 50/60Hz
Power consumption: 55 W (until October 2020: TJ lot), 70 W (November 2020: TK lot and after)
Frequency response: 50 Hz to 15 kHz
S/N: Channel output 70 dB or more, mixing output 64 dB or more
Number of wireless microphones that can be used: Up to 16 (up to 8 when one or more coaxial conversion units are connected to the wireless receiver)
Wireless antenna connection terminal
Number of connections: 8
Connector RJ-45
Cable used: CAT5/CAT5e/CAT6 straight cable
Extension wireless receiver connection terminal
Connector: RJ-45
Cable used: CAT5/CAT5e/CAT6 straight cable
Auxiliary input terminal
Connector: Connector type terminal block
Input characteristics: -10 dBV balanced 600 Ω

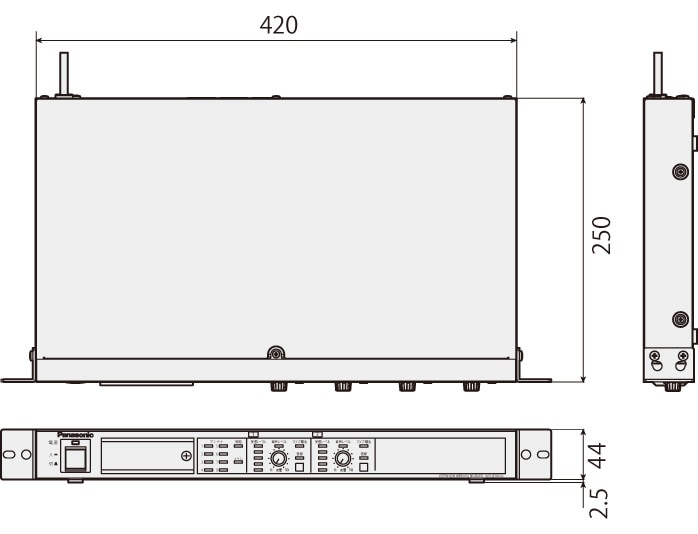

Channel output terminal Number of systems: 2 Connector: Connector-type terminal block Output characteristics: -10 dBV, balanced 600 Ω Mixing output terminal Connector: Connector-type terminal block Output characteristics: -10 dBV/-50 dBV, balanced 600 Ω Network connection terminal Connector: RJ-45 Communication method: 100BASE-TX Setting and maintenance connection terminal Connector: USB micro B Display (indicator) Common: Power, antenna 1 to 8, synchronization, main, PHS detection, constant power Each channel: Reception level (5 levels), audio level, microphone battery, registration Operating temperature range: 0 ℃ to 45 ℃ Operating humidity range: 0 % to 90 % (no condensation) Dimensions: Approximately 420 mm (width) x 44 mm (height) x 250 mm (depth) (excluding protruding parts such as rubber feet and knobs)
Weight: Approx. 2.8 kg
Finish: AV light gray paint
