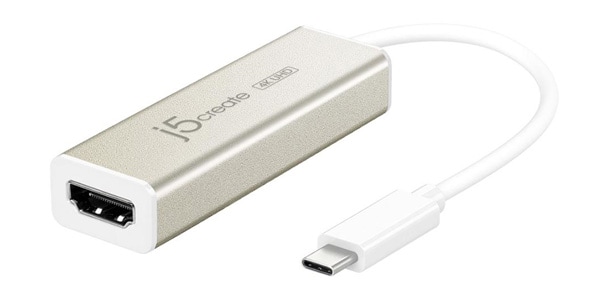

j5 create / JCA153J

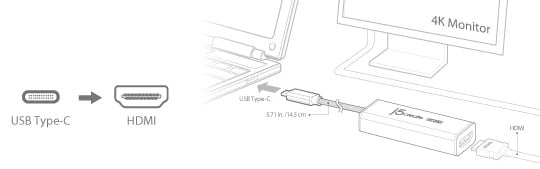

This is a display adapter that converts a USB Type-C terminal to an HDMI terminal. By inserting it into a computer that supports DP Alt mode such as a MacBook, you can expand the projector or monitor.

■USB Type-C to 4K HDMI Display Adapter

Product Features
● HDMI female connector
● Easy-to-use cable
● Maximum resolution: 4K @ 60 Hz
● Supports Displayport Alt Mode via USB Type-C

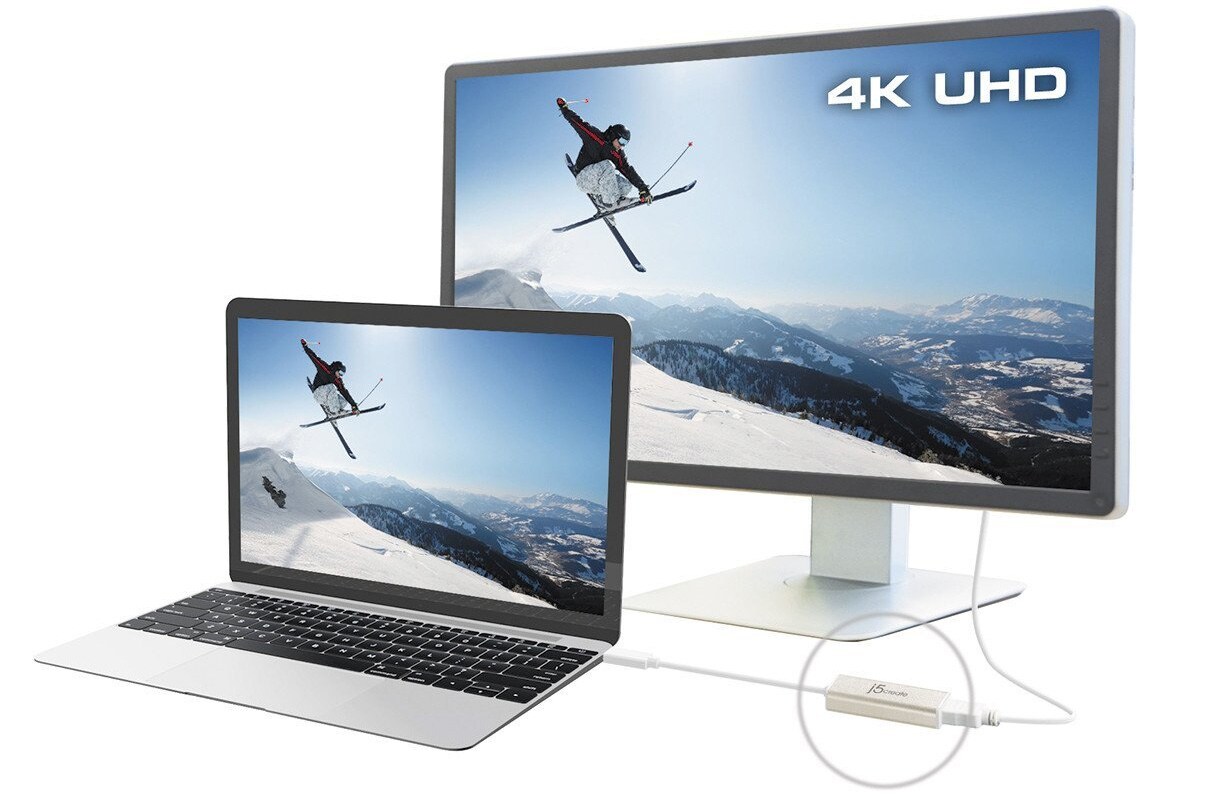

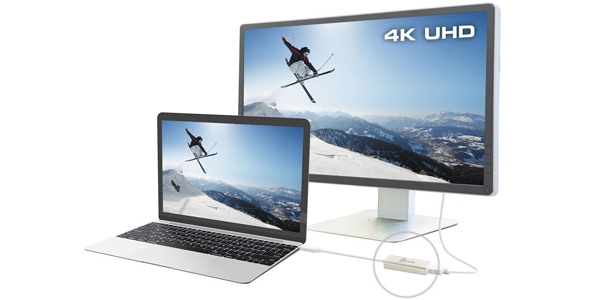

● The perfect accessory for MacBooks, Chromebooks, and other laptops with USB-C ports
● USB Type-C cable: 14.5 cm
● Aluminum housing
■Product Specifications

Power supply method: Bus powered
Power consumption: Less than 500mA


Connector shape: USB Type-C male -HDMI
Maximum resolution: Up to 4K@60Hz *


External dimensions: Main unit: 23.4 (W) x 68 (H) x 14.4 (D) mm
Cable length: 145 mm
Case material: Plastic + aluminum
Weight: Approximately 30.2 g (including cable)

Required environment
● The host side equipped with USB TYPE-C must support Displayport Alternate mode.
● To display a maximum resolution of 4K/2K＠60Hz, the graphics card must support DisplayPort v1.2a.

Package Contents
● JCA153J USB Type-C Display Adapter Series
● Quick installation guide, warranty card
