j5 create / JCD384

A multi-function multi-adapter compatible with USB Type-C terminals. By inserting it into a computer that supports DP Alt mode, such as a MacBook, you can expand wired LAN, USB hub, HDMI or VGA. This model is excellent for adding USB peripherals while charging your computer.

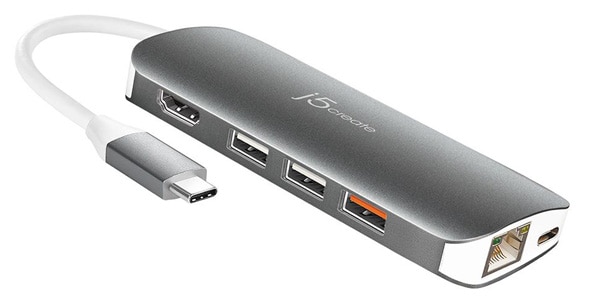

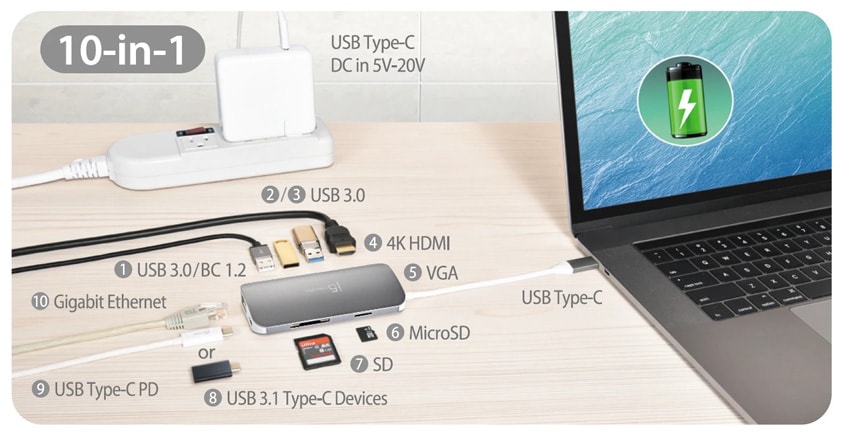

■USB Type-C 10 in 1 Multi-Dock

■Product Features
Power delivery support allows you to use additional devices while charging your computer

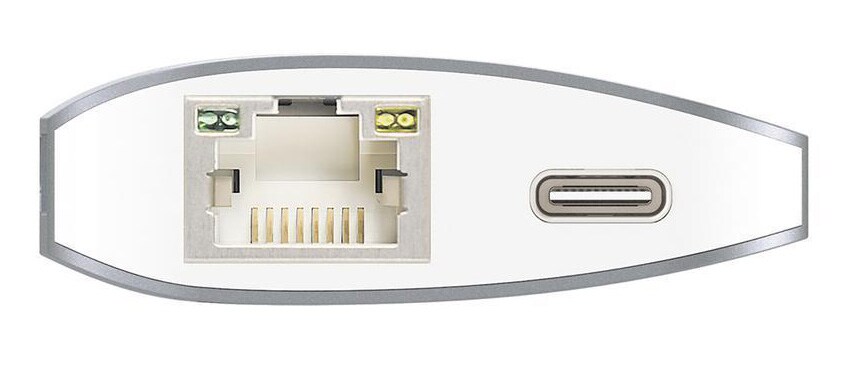

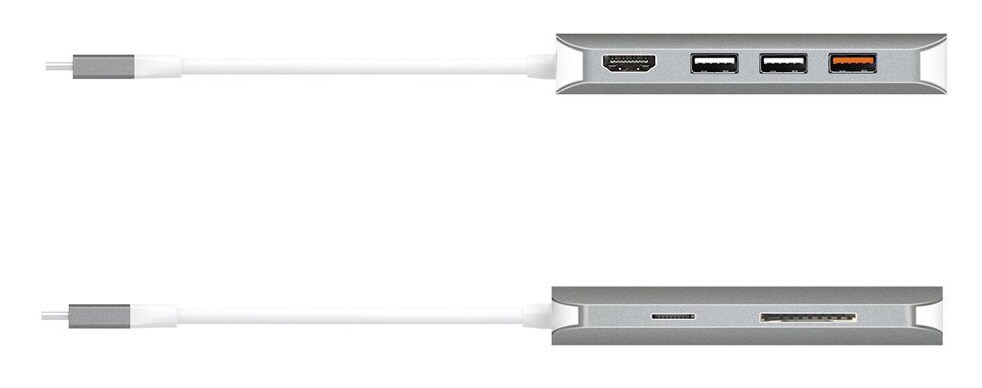

1 USB Type-C charging port, 1 4K HDMI, 1 VGA, 1 Gigabit wired LAN port, 3 USB 3.0 ports, 1 SD slot, 1 MicroSD slot
1 USB fast charging port (max. 2.4A)
HDMI maximum resolution 4K @30Hz
VGA maximum resolution 1920x1200@60Hz
Supports Power Delivery 3.0 up to 60W
Metal housing with a luxurious feel and excellent heat dissipation

■Product Specifications
Host interface: USB 3.1 Gen 1 Type-C (male)

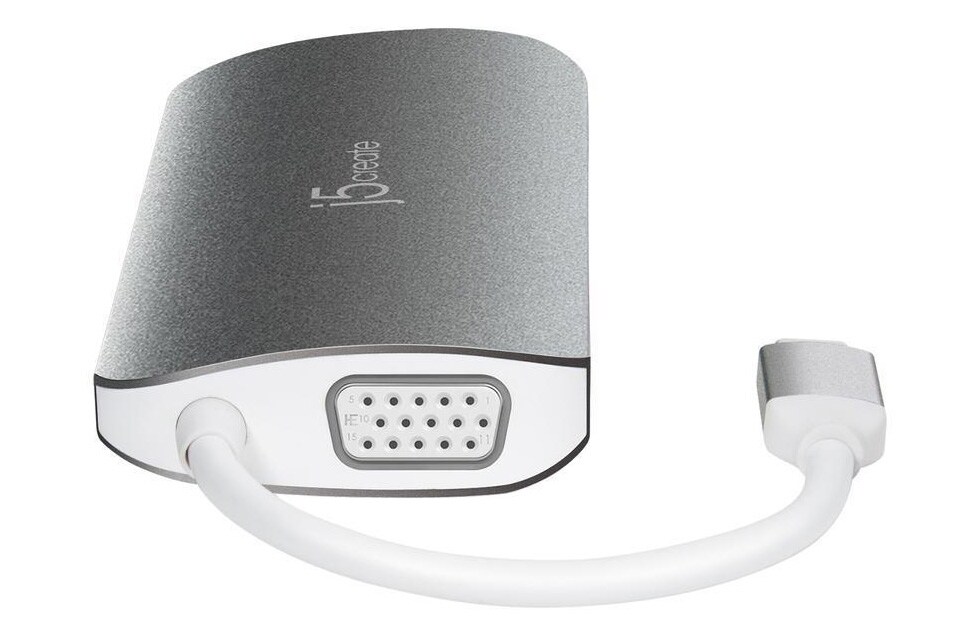

Video interface: 1 HDMI port, 1 VGA port
USB port: 3 USB 3.1/3.0, 1 USB 3.1Gen1 Type-C
Card reader: 1 SD slot, MicroSD Slot x 1
Power supply method: Bus power/Self power
Display resolution: *HDMI 4K@30Hz, VGA 1920x1200@60Hz
External dimensions: 50 (W) x 120 (H) x 16.5 (D) mm
Cable: Approx. 14 cm
Weight: Approx. 88 g (including cable)
*The host side equipped with USB Type-C must support DisplayPort Alternate mode

*The USB Type-C port of this product only supports Power Delivery input and hub functions, and does not support DisplayPort Alternate Mode. Please note that video output to a display using the USB Type-C port of this product is not possible.

*Please note that ""Apple USB SuperDrive"" is not supported due to manufacturer restrictions.

*The aluminum housing has excellent heat dissipation properties. The hub housing becomes hot to dissipate excess heat generated during use.

The normal operating temperature is 35 to 55°C, depending on the functions used.

Package contents
* JCD384 main unit, quick installation guide, warranty card
