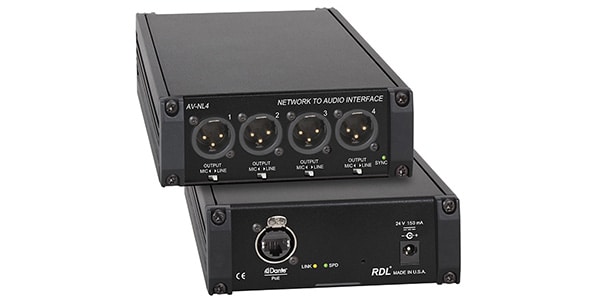

RDL / AV-NL4

RDL ( アールディーエル )のAV-NL4は、Danteネットワークオーディオ4チャンネルをXLRコネクタの4つのバランスオーディオ出力に変換するラインレベルインターフェースです。

■Converts Four Dante Network Audio Signals to Balanced Analog
■Selectable Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
■Each Output Switch-Selectable for Mic or Line Level
■Normal (-20 dBFS) Line-Level Output is +4 dBu with 20 dB Headroom
■Microphone Output Level is Attenuated 50 dB
■Each Output is Protected Against Phantom Voltage up to 48 Vdc
■Special Software Not Required for Module Setup
■Exceptional Low-Noise and Low-Distortion Performance
■High Resolution 24 Bit Digital to Analog Conversion
■Legendary RDL Analog Filtering Enhances Superb Audio Performance
■LED Indicator for Valid Power and Network Sync
■Operation from PoE Power (Class 0, IEEE 802.3af) or external 24 Vdc
■Mounts on a Microphone Stand using an RDL SF-MSM1
