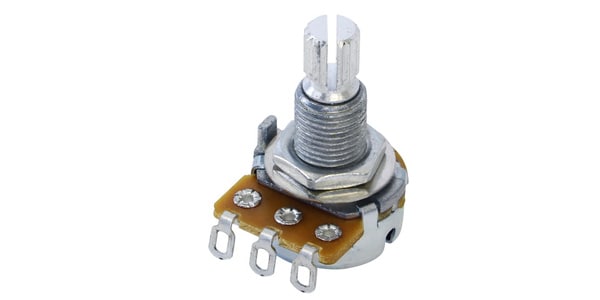

ALPHA / ALP-2501B

ALPHA's metric mini-sized pot, ALP-2501B. It has a resistance of 250kΩ and a B curve, which is mainly used for single coil pickups.

■Mini size control pot
■B curve
■250kΩ
■Split shaft
■Millimeter standard

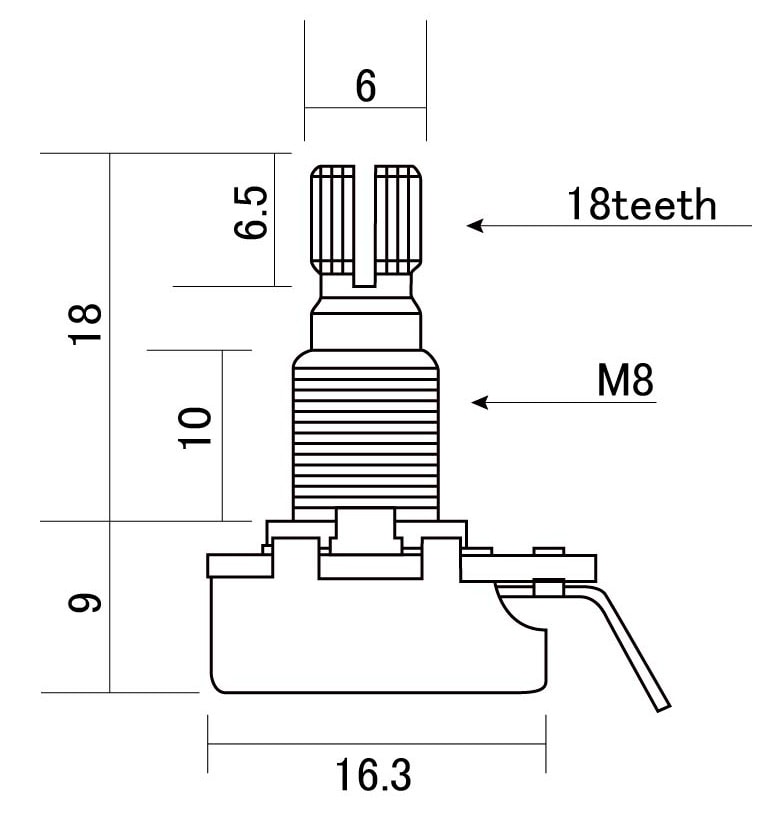

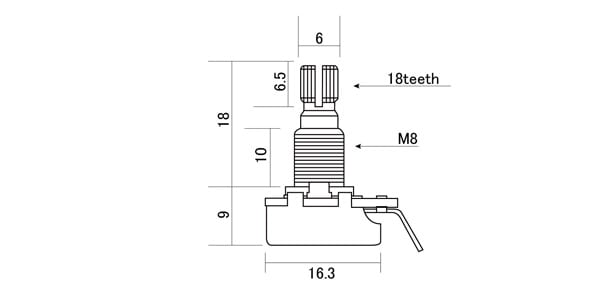

■Dimensions
・Outer diameter of main body: approx. 16.3mm
・Height of main body: approx. 9mm
・Height of shaft: approx. 18mm
・Threaded part diameter: M8
・Height of threaded part: approx. 10mm
・Diameter of knurled part for mounting knob: approx. 6.0mm
・Height of knurled part for removing knob: approx. 6.5mm

*Images are for illustrative purposes only.
