ALPHA / ALP-2501

ALPHA's metric mini-sized pot, ALP-2501. It has a resistance of 250kΩ and an A-curve, which is mainly used for single coil pickups.

■Volume/tone control pot
■Split shaft
■250kΩ A curve

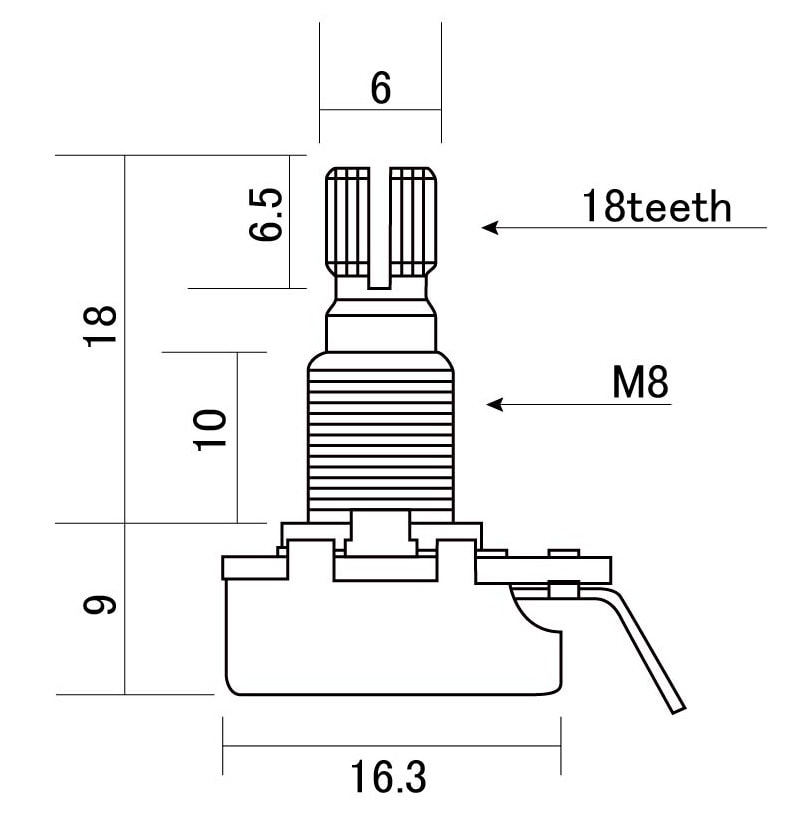

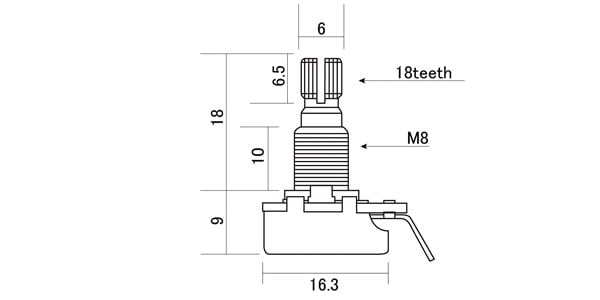

■Size
・Outer diameter of main body: approx. 16.3mm
・Height of main body: approx. 9mm
・Height of shaft: approx. 18mm
・Threaded part diameter: M8
・Height of threaded part: approx. 10mm
・Diameter of knurled part for knob attachment: approx. 6.0mm
・Height of knurled part for knob removal: approx. 6.5mm
■Millimeter standard

*Image is for illustrative purposes only.
