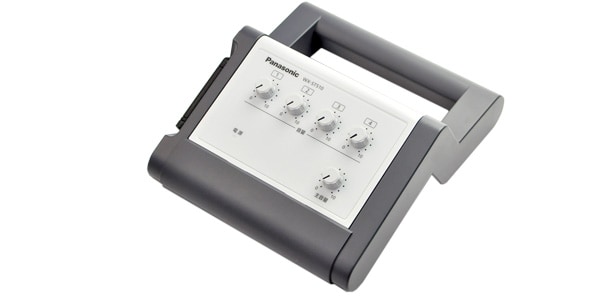

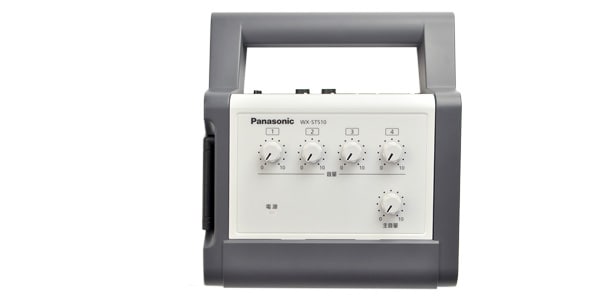

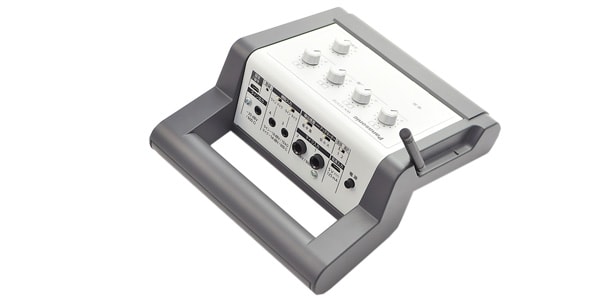

PANASONIC / WX-ST510

Panasonic's portable wireless transmitter. In addition to two wired microphones, it can connect two audio media inputs such as a CD player, for a total of four inputs.

■Wireless transmitter

- Wirelessly transmits up to four inputs, including microphones.

- Can connect two wired microphones and two audio media inputs, such as a CD player, for a total of four inputs.

■Specifications
Frequency: 1895.616 MHz - 1904.256 MHz
Antenna: External whip antenna
Power supply: Dry batteries (4 AA alkaline batteries) or USB power supply
Battery life (25°C continuous use with Panasonic batteries): Approximately 24 hours (when using LR6XJ AA alkaline batteries)
Display (indicator): Power
Microphone 1, 2 input terminals: Balanced input: Large duplex jack, 600 Ω Input sensitivity: -54 dBV
Auxiliary input 3, 4 terminals: Unbalanced input: φ3.5 mini duplex jack, 600 Ω/10 kΩ Input sensitivity: -54 dBV / -14 dBV switchable
Line output terminals: Unbalanced output: φ3.5 mini duplex jack (L+R mono) Rated output: -20 dBV, 600 Ω
Main volume: Adjustable volume after mixing inputs 1 - 4
Volume volume: Adjustable volume of inputs 1 - 4
Frequency response: 100 Hz - 15 kHz
Attenuator function: Attenuates other input levels when mic input 1 is detected. Attenuator amount switch: Off/Low/Large Detection sensitivity switch: Low/Medium/High
Operating temperature range: 0 ℃ - 40 ℃
Dimensions: 178 mm (width) x 65 mm (height) x 200 mm (depth) (excluding protrusions)
Weight: Approximately 700 g (including 4 LR6XJ dry batteries)
Finish
Panel cover: AV light gray paint
Case: Dark gray ABS resin
