ESI / U24 XL Audio Interface

A 2-in/2-out 24-bit USB audio interface. Maintaining high quality in an extremely compact design. In addition to analog input and output terminals with balanced TRS connectors, it is equipped with coaxial and optical digital input and output terminals. It boasts a wide range of input and output systems and high sound quality. Comes with a reassuring 3-year Sound House warranty!

■USB Audio Interface
■24-bit - 2x2

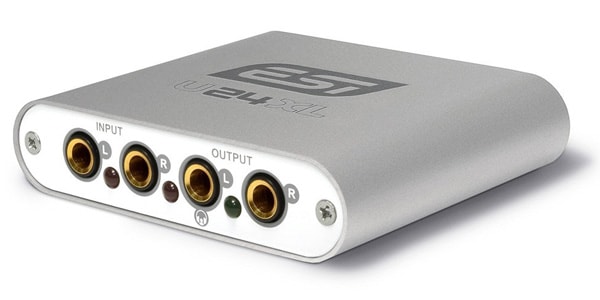

The U24 XL is an extremely compact 2-in/2-out 24-bit USB audio interface.

Its palm-sized body features TRS balanced analog inputs and outputs, as well as coaxial and optical digital inputs and outputs. It boasts a wide range of input and output options and high sound quality.

■Product Details

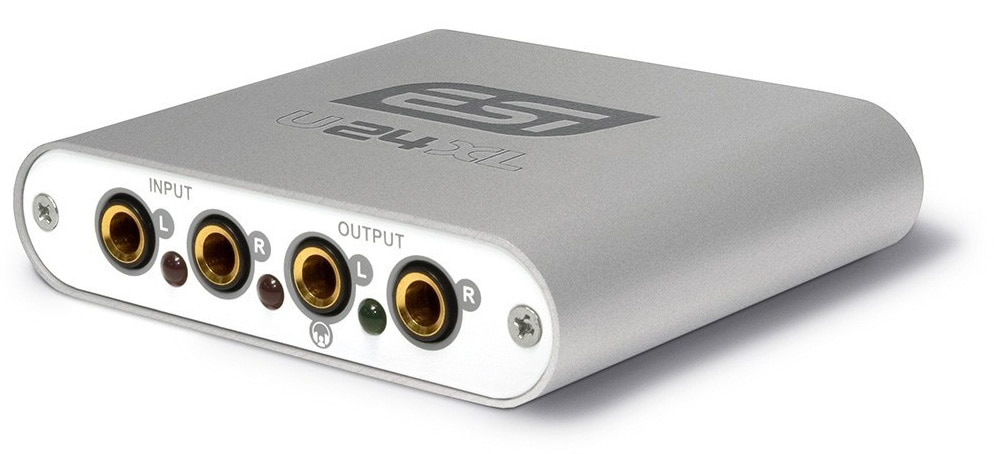

Analog Input Terminal (TRS)
Analog Output Terminal (TRS) - Left channel is shared with the headphone output jack
Left channel input peak LED
Right channel input peak LED
Power LED

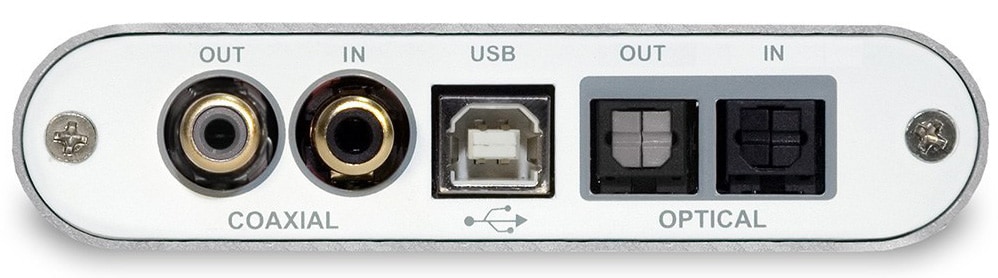

S/PDIF coaxial input/output jack
USB connector (Type B)
S/PDIF optical input/output jack

■Features
・2-in/2-out - 24-bit USB audio interface
・TRS analog input/output jacks
・S/PDIF input/output jacks with optical and coaxial jacks
・Digital output format switchable to AES/EBU via dedicated control panel
・24-bit AD/DA converter
・Real-time input monitoring
・USB bus-powered
・Windows XP/10 (low latency, ASIO 2.0 compatible)
・macOS 10.4 or later (CoreAudio compatible, no driver installation required)
・Size: 10 x 9cm

Specifications
USB Controller
USB 2.0 Full Speed / USB Audio Class 1.0
I2S Codec Interface, 2-in/2-out, 24-bit/48kHz
Built-in Digital I/O (S/PDIF)
Built-in I2S Input Gain (12dB)
2-in/2-out Full Duplex Recording and Playback
Analog Output
Up to 24-bit/48kHz
1/4"" Phone Jack (TRS)
Headphone Output Jack (Shared with L-Channel Output)
Output Level (0dB): Max. 6.9dBu
Analog Input
Up to 24-bit/48kHz
1/4"" Phone Jack (TRS)
Input Level (0dB): +4.7dBu
Digital Input/Output
Up to 24-bit/48kHz
Coaxial & Optical
Format: IEC-958 Consumer (S/PDIF) Default (AES/EBU output format can be switched using the dedicated control panel)
Sample Rate
32, 44.1, 48 kHz
