ESI / MAYA44 USB+

A 4-in/4-out USB audio interface with excellent cost performance. Its compact body features four RCA analog input/output terminals, and an optical S/PDIF output terminal that also doubles as a headphone jack. Ideal for recording at home or in the studio. In addition to the standard functions, it can also be used as an interface for DJ software. It is also compatible with mobile streaming and recording apps. Comes with a reassuring 3-year Sound House warranty!

■USB Audio Interface
■4 x 4

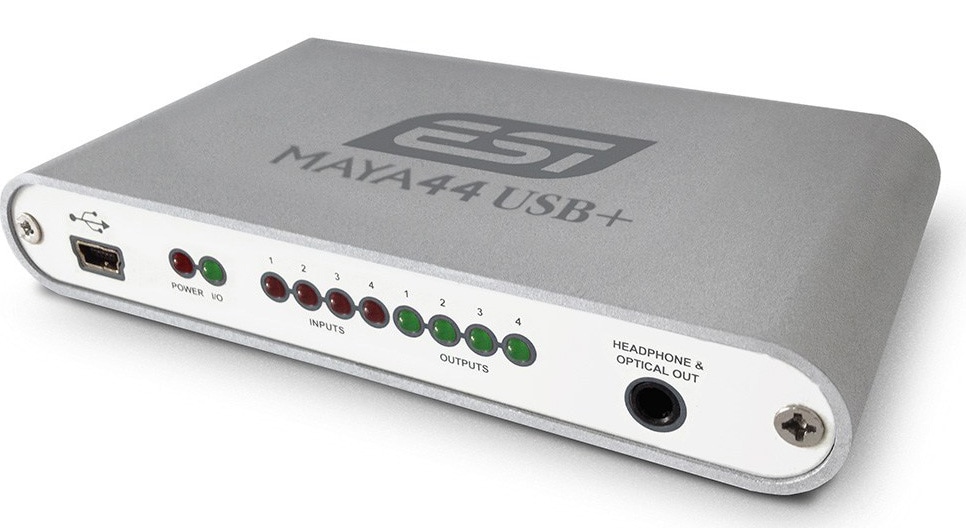

The MAYA44 USB+ is an extremely compact 4-in/4-out USB audio interface.

With four analog input/output jacks (RCA) and an optical S/PDIF output jack (shared with the headphone jack) in its palm-sized body, it's ideal not only for home recording but also as an interface for DJ software.

■Product Details

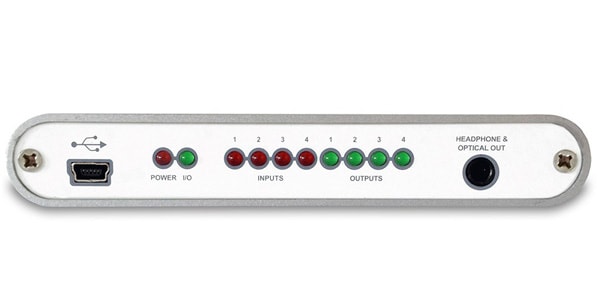

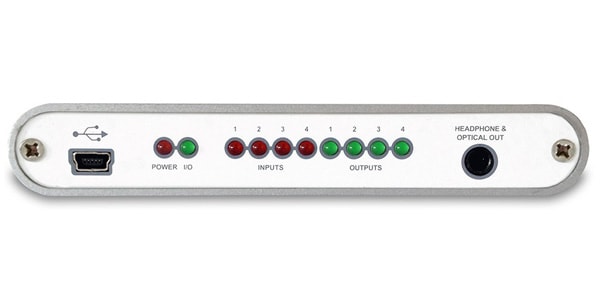

USB Connector (Mini-B Connector)
Power I/O LED
Input/Output Channel LEDs
S/PDIF Optical Output & Headphone Output

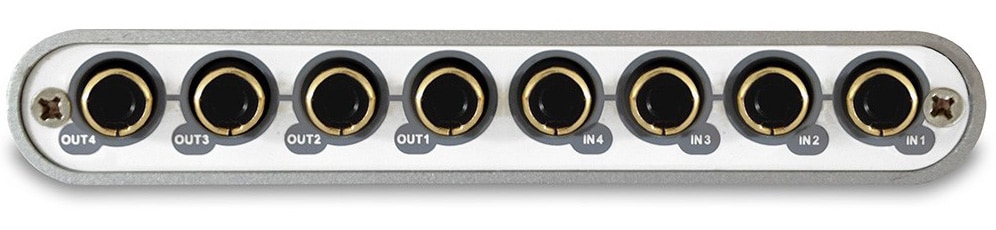

4 Analog Outputs
4 Analog Inputs

■Specifications
・4-in/4-out - USB Audio Interface
・4 x 4 Analog Input/Output Connectors (RCA)
・S/PDIF Output Connector (Optical Mini-Plug)
・60mW Headphone Amplifier
・USB Bus Powered
・Compatible with Windows XP/10 (ASIO 2.0, MME, WDM, DirectSound)
・macOS 10.4 or later (CoreAudio compatible, no driver installation required)
・Dimensions: 12 x 7 x 2cm

■Specifications
Analog Section
Sample Rate:
44.1kHz / 48kHz
Analog Input:
RCA Connector 4
-10dBV, unbalanced
Impedance: 10KΩ
Analog Output:
RCA jacks x 4
-10dBV, unbalanced
Impedance: 100Ω
Headphone Amplifier:
THD+N/S: -70dB, 0.03% (typical)
Output Power: Max 60mW
S/N Ratio: 110dB (typical)
Digital Section
Sample Rate:
44.1kHz / 48kHz
AD Converter:
Resolution: 18-bit
Dynamic Range: 85dBA
Frequency Response: 20-20KHz (@ fs=48kHz)
DA Converter:
Resolution: 20-bit
Dynamic Range: 87dBA
Frequency Response: 20-20KHz (@ fs=48kHz)
Digital Output:
Connector: Optical mini-plug
Format: IEC-958 Consumer (S/PDIF)
Resolution: 16-bit
Sample Rate: 44.1 kHz, 48 kHz
System Requirements
Windows:
Windows XP 10 (ASIO 2.0, MME, WDM, DirectSound)
Mac:
macOS 10.4 or later (CoreAudio compatible)
