SONY / UWP-D22

A set of the bodypack transmitter UTX-M40 and the portable diversity tuner URX-P40. It uses a true diversity reception method that ensures stable signal reception. By combining it with a small camcorder, it is possible to build a mobile system for ENG and EFP applications. It is equipped with an auto gain mode that does not require volume adjustment.

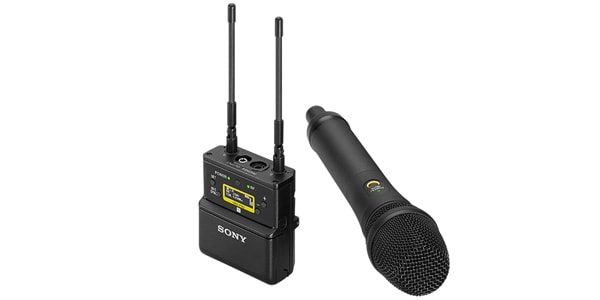

This set includes a handheld microphone (transmitter: UTX-M40) and a portable diversity tuner (receiver: URX-P40). When combined with a small camcorder, it allows you to build a highly mobile system for ENG and EFP applications. [Receiver]
Portable diversity tuner (URX-P40)
Antenna: 1/4λ wavelength wire antenna (angle adjustable)
Audio output level: -60dBV (φ3.5mm locking 3-pole mini jack, analog output, audio output level 0dB)
-20dBFS (external connection terminal, digital output, audio output level 0dB)
-50dBV (external connection terminal, analog output, audio output level 0dB)
Audio output level variable range: -12 to +12dB (3dB steps)
Audio output terminal: φ3.5mm locking 3-pole mini jack, external connection terminal
Headphone output level: Maximum 10mW (16-ohm)
Headphone output terminal: φ3.5mm mini jack
Reception method: True diversity method
Local oscillation: Crystal-controlled PLL synthesizer
Reception frequency: 806.125-809.750MHz
Signal-to-noise ratio: 60dB (1kHz sine wave, 5kHz modulation)
Audio delay: Approx. 0.35ms (analog output)
Approx. 0.24ms (digital output)
De-emphasis: 50μs
Reference frequency deviation: ±5kHz
Frequency response: 40Hz-15kHz (Typical)
Distortion rate: Less than 0.9% (1kHz sine wave, 5kHz modulation)
Tone signal frequency: When compander mode is set to UWP-D...32.382kHz
When compander mode is set to UWP...32kHz
When compander mode is set to WL800...32.768kHz
Indicators: POWER, RF
Permitted operating temperature: 0-50℃
Permitted storage temperature: -20 to +55°C

NFC function: Yes

USB port: Type-C

Power supply voltage: DC3.0V (2 AA alkaline batteries)

DC5. 0V (supplied from USB port)

Battery life: Approximately 6 hours (Sony alkaline batteries, AA size (LR6), 25°C,

when DISPLAYMODE is set to AUTO OFF)

Accessories

Microphone holder (1), belt clip (1), shoe mount adapter (1), XLR-BMP conversion output cable for URX-P40 (1), stereo mini-BMP conversion cable (1), Before use (1), Quick start guide (1), CD-ROM (1), warranty card (1)
