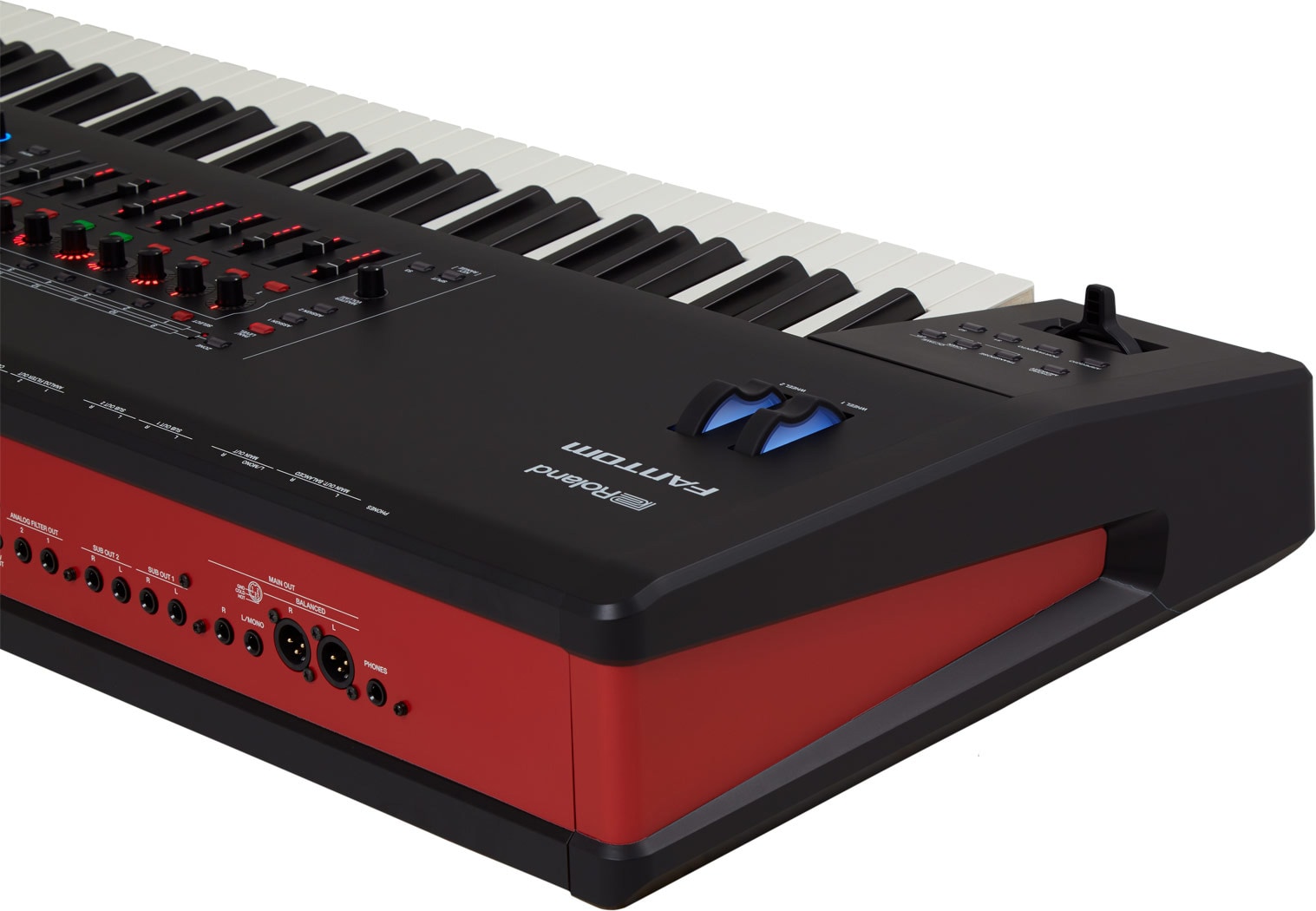

ROLAND / FANTOM-8 MUSIC WORKSTATION

ROLAND（ローランド）の88鍵盤・シンセサイザー。ライブパフォーマンス、楽曲制作、外部コントロールなどの機能を極めて高いクオリティとバランスで実現します。

● Keyboard
Number of keyboards: 88 keys (PHA50 hybrid structure (wood x resin center frame), with escapement, ivory tone/ebony tone, aftertouch compatible)

■ Sound source section
ZEN-Core
V-Piano Technology

● Number of parts
16 zones (Internal + External)

● Number of scenes
128 scenes x 4 banks

● Number of tones
Over 3,500 tones
90 drum kit or more

● Effects
Multi-effect: 16 systems, 90 types
Part EQ: 16 lines
COMP for drum parts: 6 lines
Insert effect: 2 systems, 90 types
Chorus: 8 types
Reverb: 6 types
Master compressor
Mic input reverb: 6 types

● Analog filter
stereo
TYPE: LPF1/LPF2/LPF3/HPF/BPF/Bypass
Drive
Amp

■ Sequencer
Number of MIDI tracks: 16
Group: 16
Pattern: 8 (per track)
Pattern length: 32 measures
Recording method: Real-time recording, step recording, TR-REC

■Sampler
●PAD sampler section
Format: 16-bit linear, 44.1kHz/48KHz, WAV/AIFF import supported
Polyphony: 8 notes
Number of samples: 16 pads x 4 banks

■ Other
● Rhythm pattern

● Arpeggio

● Code memory

● Controller
Pitch bend/modulation lever
S1/S2 button
Control knob x 8
Slider x 8
USB AUDIO slider
Wheel x 2
FUNCTION knob x 6
Sound modify knob x 11
4x4 pad

● Display
7-inch graphic color LCD (WVGA 800 x 480 dots) with touch screen

● Connection terminal
HPNES terminal (stereo standard type)
MAIN OUTPUT jacks (L/MONO, R) (TS standard type)
MAIN OUTPUT jacks (L, R) (XLR type)
SUB OUT1 terminals (L, R) (TS standard type)
SUB OUT2 terminals (L, R) (TS standard type)
ANALOG FILTER OUT (1, 2) (TS standard type)
MIC/LINE INPUT jacks (1, 2) (XLR/TRS standard combo type)
CV OUT terminals (1, 2), GATE terminals (1, 2)
FOOT PEDAL terminals (HOLD, CTRL1, CTRL2, CTRL3)
MIDI terminals (IN, OUT1, OUT2/THRU)
USB MEMORY terminal
USB COMPUTER terminal (AUDIO/MIDI compatible)
EXTERNAL DEVICE terminals (1, 2, 3)

● External memory
USB memory (sold separately)

● Power supply
AC100V (50/60Hz)

● Power consumption
50W


1432 (width) x 439 (depth) x 153 (height) mm

● Mass
27.7kg

● Accessories
User's manual
Power cord
Warranty
Roland user registration card

● Sold separately
Keyboard stand: KS-G8B, KS-10Z, KS-12
Pedal switch: DP series, RPU-3
Expression pedal: EV-5
USB memory (*)
*Please use a commercially available USB memory. However, we do not guarantee the operation of all commercially available USB memories.
