CLASSIC PRO/CWR242 Hand microphone +Lavalier set

CLASSIC PRO / CWR242 Hand microphone +Lavalier set

Variations

Wireless set of one handheld type and one lavalier microphone that realizes clear sound quality without noise unique to 2.4GHz digital. You can expect great performance when using the two microphones, for live vocals, karaoke, and speech. The definitive version of digital wireless that achieves 8 channels for simultaneous use.

■ 8 waves can be used simultaneously.

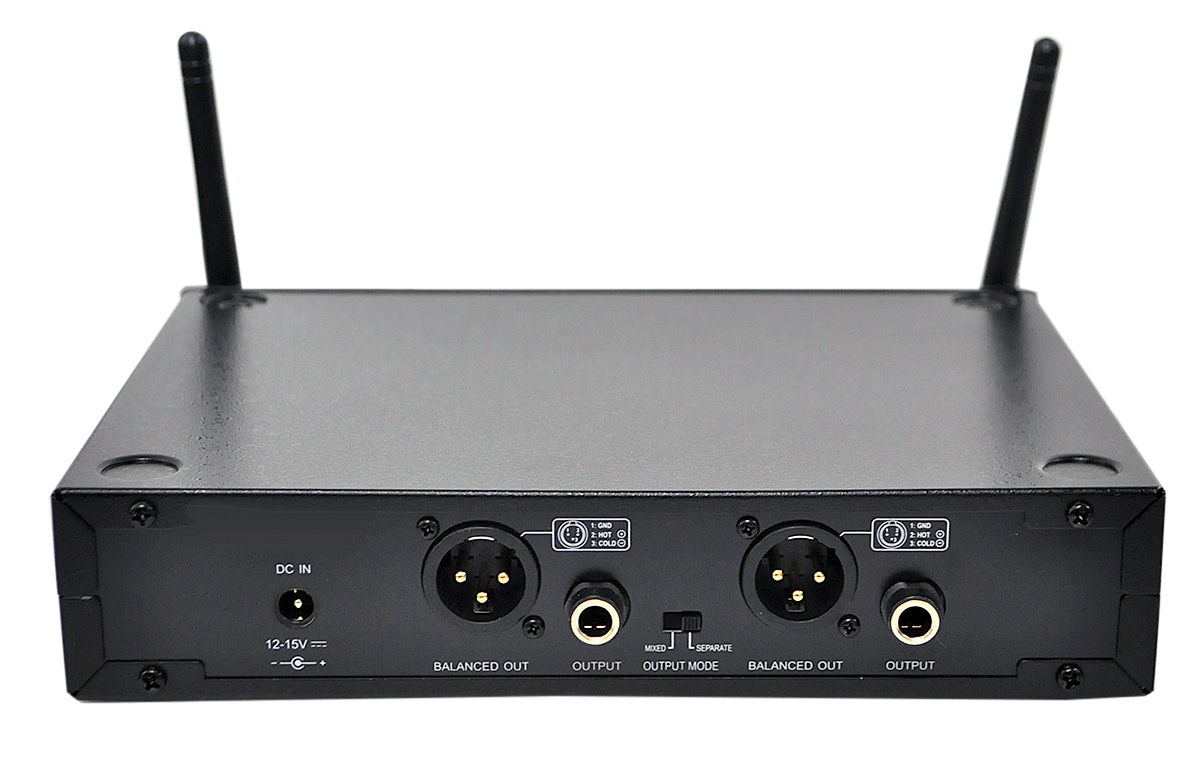

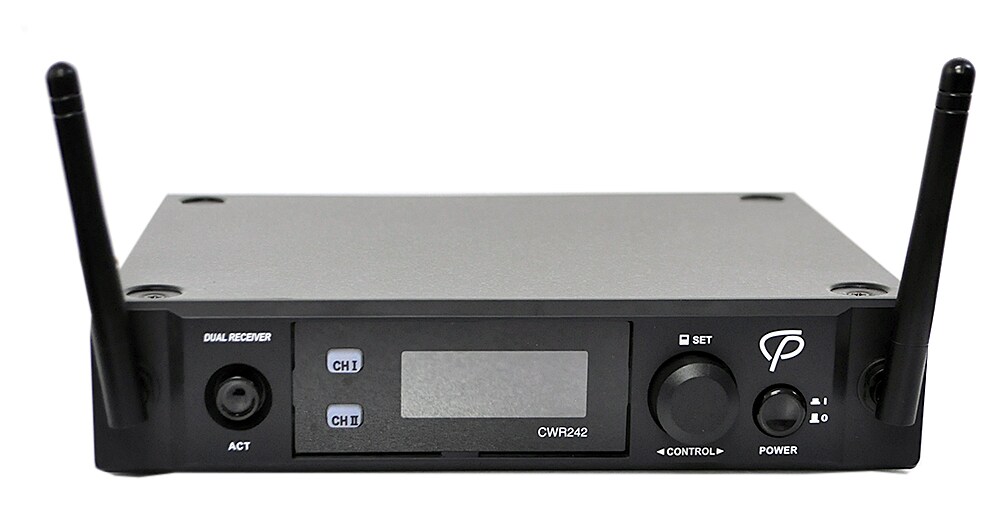

■ CWR242 (Dual receiver) x1
・ Wireless receiver
・ Dual channel
・ Transmission frequency: 2.4GHz band
・ Frequency characteristics: 20-20KHz
・ Frequency stability: ± 0.005%
・ THD:> 0.1%, @ 1 kHz
・ Latency: 4.0ms
・ Sensitivity: -95 dBm
・ SN ratio: 115 dB (A)
・ Output level: -10 to +20 dB
・ Output terminal: XLR & 6.3 mm (1/4")
・ Antenna: 2 x 50 Ω (fixed type)
・ Adapter: 12-18V DC / 300mA
・ Dimensions: 210 × 180 × 40mm
・ Weight: 750 g

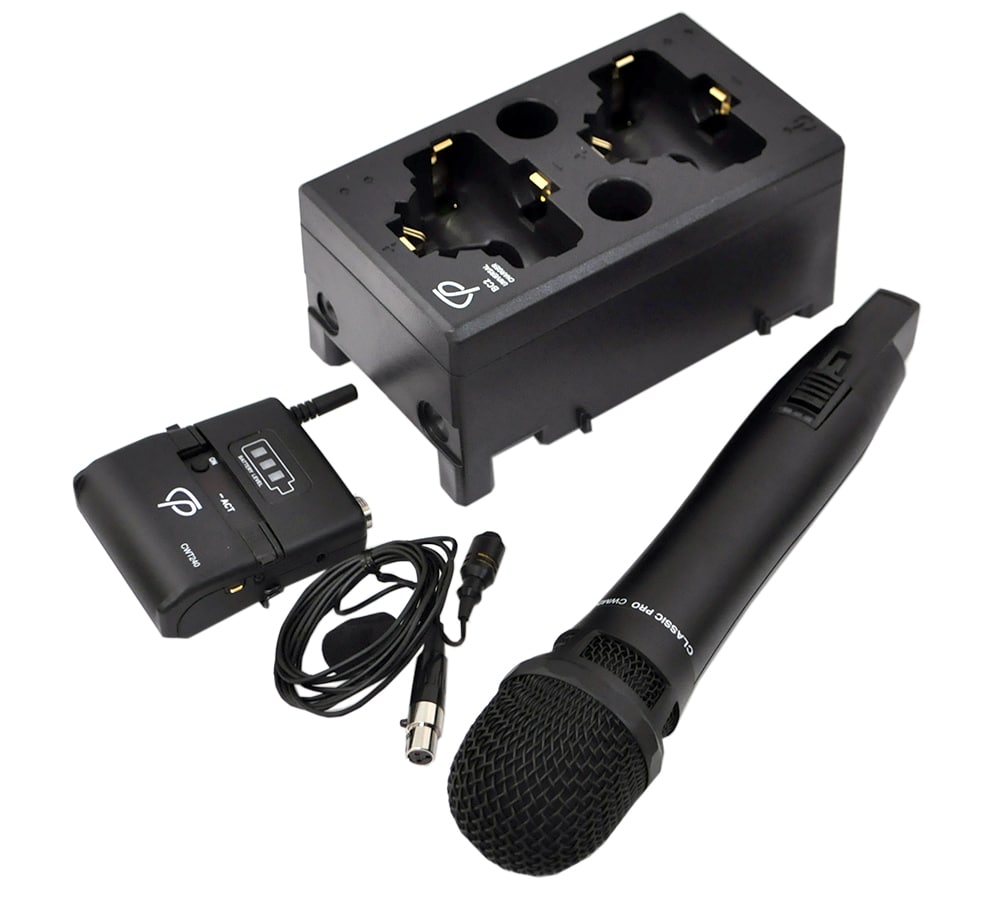

■ CWM240 (hand microphone) x1
・ Transmission frequency: Digital band
・ Frequency characteristics: 20-20KHz
・ Transmission output: 2mW / 10mW (switchable)
・ Channel setting: ACT SYNC (one-touch setting)
・ Power consumption: 138 mA
・ Battery meter: 4 levels -level Green / Red LED display
・ Driving time: 10 hours
・ Power supply: rechargeable battery (included)
・ Size: 248x51mm
・ Weight: 255g

■ CWT240 (with belt pack transmitter / lavalier microphone) x1
・ Transmission frequency: 2.4Ghz ISM band
・ Frequency characteristics: 20-20KHz
・ Transmission output: 2 mW / 10 mW (switchable)
・ Channel setting: ACT SYNC (one-touch setting)
・ Power consumption: 138 mA
・ Battery meter: 4 levels -level Green / Red LED display
・ Driving time: 10 hours
・ Power supply: Rechargeable battery (included)
・ Size: 63 × 70 × 25mm
・ Weight: 66g

■ CWL244 (Lavalier microphone) x1
・ Black
・ Capsule: φ10mm unidirectional condenser microphone
・ Frequency characteristics: 50 Hz to 18 kHz
・ Sensitivity: -46dBV / Pa
・ Maximum SPL: 142dB (typical, 1%, T.H.D.)
・ Cable: 150cm
・ Connector: TA3F
・ Weight ： 19g

■ BC2 (desktop charger) x1
■ Battery charger (CWM240, CWT240)

* The MIX output is valid only for the phone terminal.
