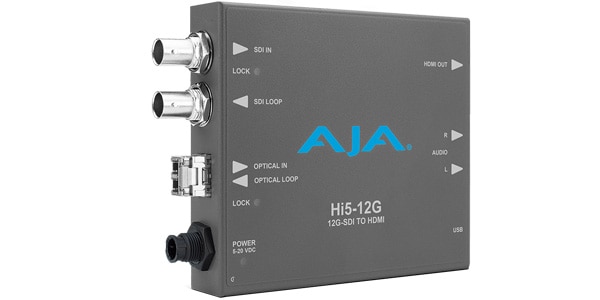

AJA Video Systems / Hi5-12G-R

Supports 4K HDR and converts 12G-SDI to HDMI 2.0! Includes 1ch receiver SFP.

■4K HDR compatible 12G-SDI to HDMI 2.0 converter
■HDMI 2.0 to 12G-SDI converter
■2 12G-SDI DA (distribution) output possible
■Supports up to 8 channels of HDMI audio or 2 channels of analog audio (RCA)
■8 or 2 channels of digital audio embedded in 12G-SDI
■Video format:
・(4K) 4096 × 2160p
・(UltraHD) 3840 × 2160p
・(2K) 2048 × 1080p
・(HD) 1920 × 1080p
・(HD) 1920 × 1080i
・(HD) 1280 × 720p
■Digital video input:
・HDMI Type A terminal × 1, HDMI v2.0b

YCbCr 4:2:2/4:4:4/4:2:0

RGB 4:4:4, SMPTE or full level

8, 10, 12 bit (HFR 4K/UltraHD 4:4:4 up to 8 bit)

HDR infoframe decoder as defined in CTA-861-G and HDMI v2.0b

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

-(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

-(HD) 1920 x 1080i 25, 29.97, 30

-(HD) 1280 x 720p 50, 59.94, 60

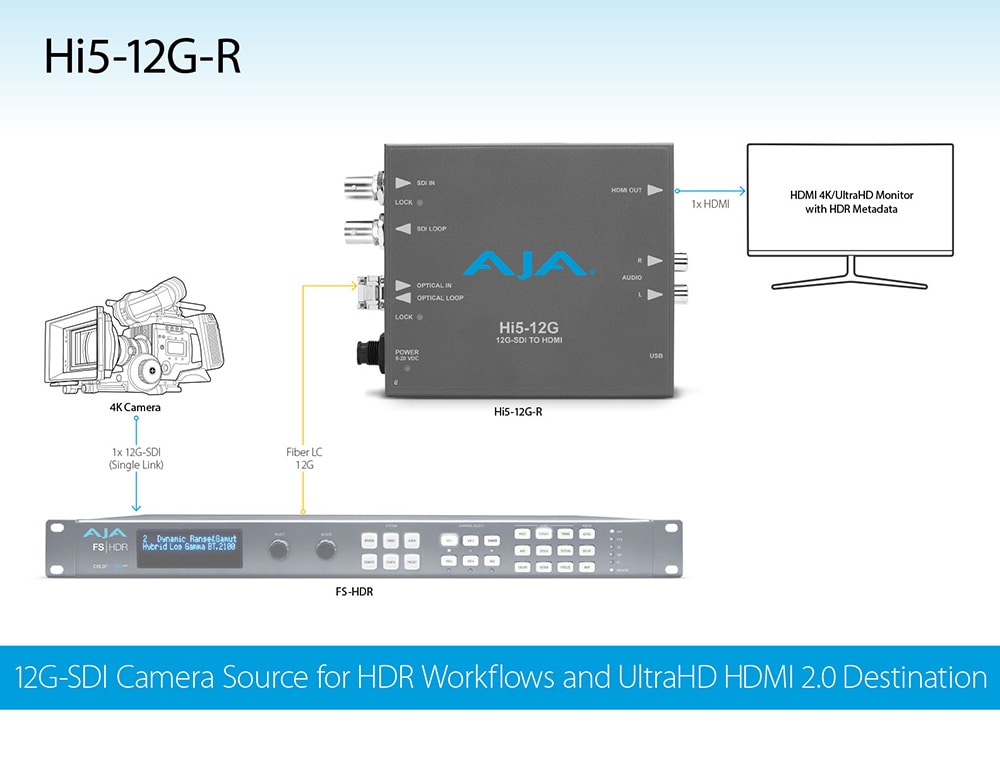

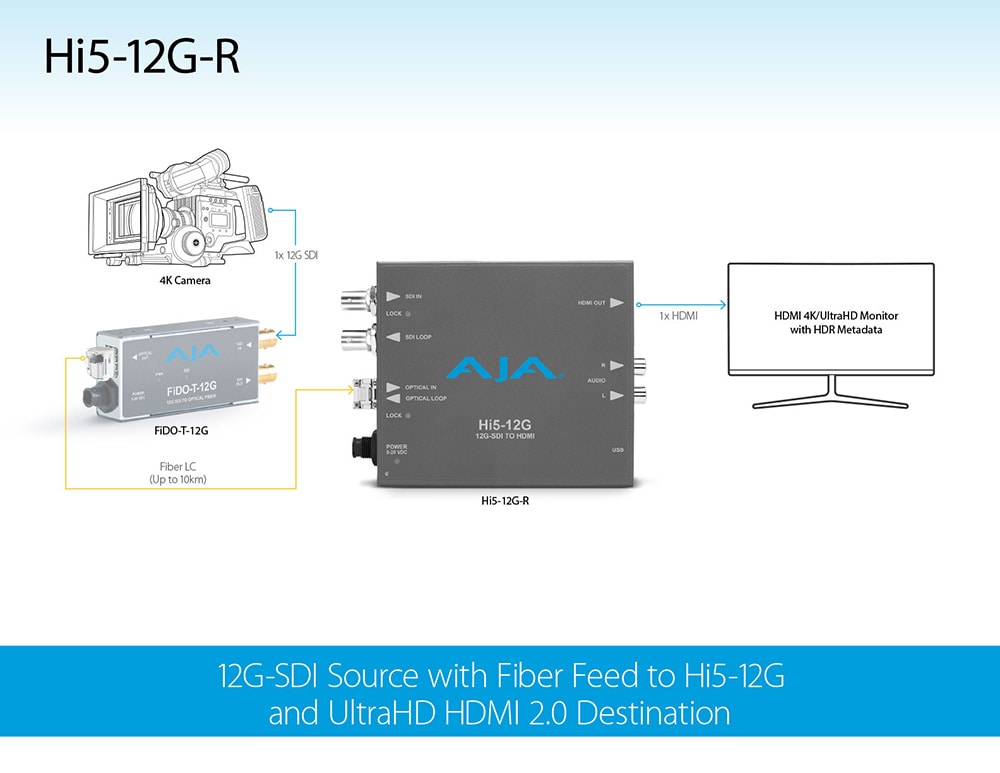

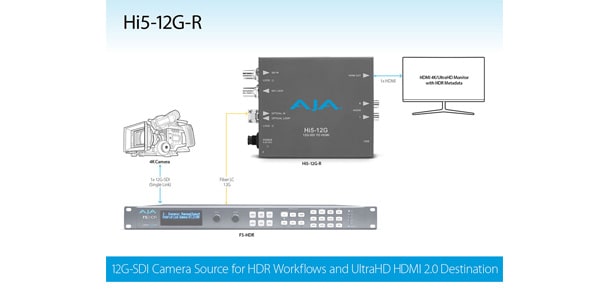

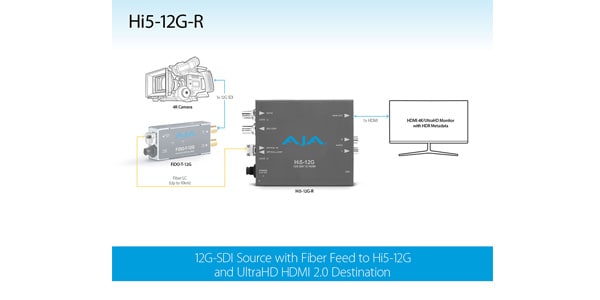

■Input signal selection

-12G-SDI BNC x 1, SMPTE-259/292/424/2081/2082

-12G-SDI Fiber LC Connector x 1, SMPTE 297/259/292/424/2081/2082

-Nominal wavelength: Rx 1260 nm (min), 1620 nm (max)

-Light sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)

-Overload power: -2 dBm (min)

■Digital video output

-1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082

-YCbCr 4:2:2/4:4:4

-RGB 4:4:4, SMPTE or full level

-8 or 10 bit

-2 sample interleave (2SI) 4K/UltraHD source mapping

-1 x 12 Gb SDI

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

・1 x 6 Gb SDI

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080p (RGB 4:4:4) 50, 59.94, 60

・1 x 3 Gb SDI (Level A or B Dual Link)

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(HD) 1920 × 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 × 1080i 25, 29.97, 30
(HD) 1280 × 720p* 50, 59.94, 60
・1.5 Gb SDI x 1
(2K) 2048 × 1080p 23.98, 24, 25, 29.97, 30
(HD) 1920 × 1080p 23.98, 24, 25, 29.97, 30
(HD) 1920 × 1080i 25, 29.97, 30
(HD) 1280 × 720p 50, 59.94, 60
*1280 x 720p is only level A
■Digital audio input: HDMI embedded audio, 24-bit, 8-channel
■Analog audio input: 2 x RCA connectors, 2-channel -10dBu (nominal)
■Digital audio output: SDI embedded audio, 24-bit, 8-channel
■User interface: Connect the included cable to the USB port
and use Mini-Config software to configure and check the device status from Mac or Windows
■SIZE: 116.84(W) x 102.11(D) x 22.86(H) mm 0.3 kg
**HA5-12G consumes approximately 11W of power. Requires convection cooling. It is normal for it to be hot to the touch. When installing the equipment, ensure there is an air passage to properly cool the inside.
Do not stack the HA5-12G with other Mini-Converters.
