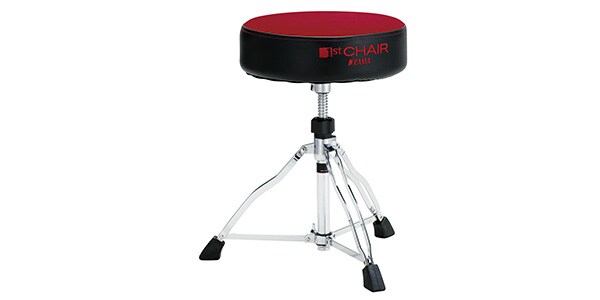

TAMA / HT430DRC

Limited-quantity colored drum throne.

*Limited quantity color

■Drum throne
■3 legs
■Cross top top finish
■Color: Dark red
■Height adjustment range: 485mm - 655mm
■Weight: 5.3kg
■Pipe diameter: 28.6mm-22.2mm
■Triple legs: Double leg
■Seat size:

Thickness: Approx. 120mm

Diameter: Approx. 360mm

*Thickness does not include seat holder

●1st CHAIR Height Adjustment

1st Chair is a drum throne that combines a mechanism that allows you to ""roughly and quickly adjust the height"" like a pipe type, and a mechanism that allows you to ""finely adjust the height"" like a screw type.

■Adjustment method
1. Loosen the T-nut (B), slide the screw rod to the desired height in the same way as adjusting the length of the pipe, and lightly tighten (B).
2. In that state, rotate the height lock (A) to lower it to the position of the nylon bush on the base.
3. If fine adjustment is required, loosen the T nut (B) and then rotate the height lock (A) to adjust. Instead of rotating the height lock, you can also adjust by rotating the seat. Turn the seat to the right (clockwise) to lower it, and turn it to the left (counterclockwise) to raise it.
4. Finally, tighten the T nut (B) firmly to secure it.
[Caution] Before sitting on the seat, be sure to check that the height lock is lowered to the position of the nylon bush. If you loosen the T nut (B) or sit on the seat with the height lock still raised, the seat will suddenly drop, which is very dangerous.

◆FEATURES
・ROCKLOK: Lock Lock
The original mechanism ""ROCKLOK"" is a nylon bush attached to the lower end of the screw rod to prevent the rod from rattling inside the lower pipe. This eliminates the uncomfortable shaking of the seat while playing, while ensuring the throne's own reliability.

・Foot Life: Unlike standard legs, which have the ends of the legs riveted and then covered with rubber legs, this design fixes the legs to a plastic block, and then attaches the rubber legs to the block. This dramatically improves the durability of the rubber legs.

・Seat Link: The nylon bushings inside the seat holder fix the screw rod with a surface. This provides high stability and is resistant to lateral shaking during play. The base can be attached to a pipe/rod with a diameter of 22.2 mm.
