TASCAM / MM-4D/IN-E

This compact, 1U half-rack converter converts 4-channel mic/line input signals to Dante format. It features built-in DSP functionality and supports 24-bit/96kHz audio. The analog mic/line inputs feature Euroblock connectors. It's recommended as an analog unit for Dante systems.

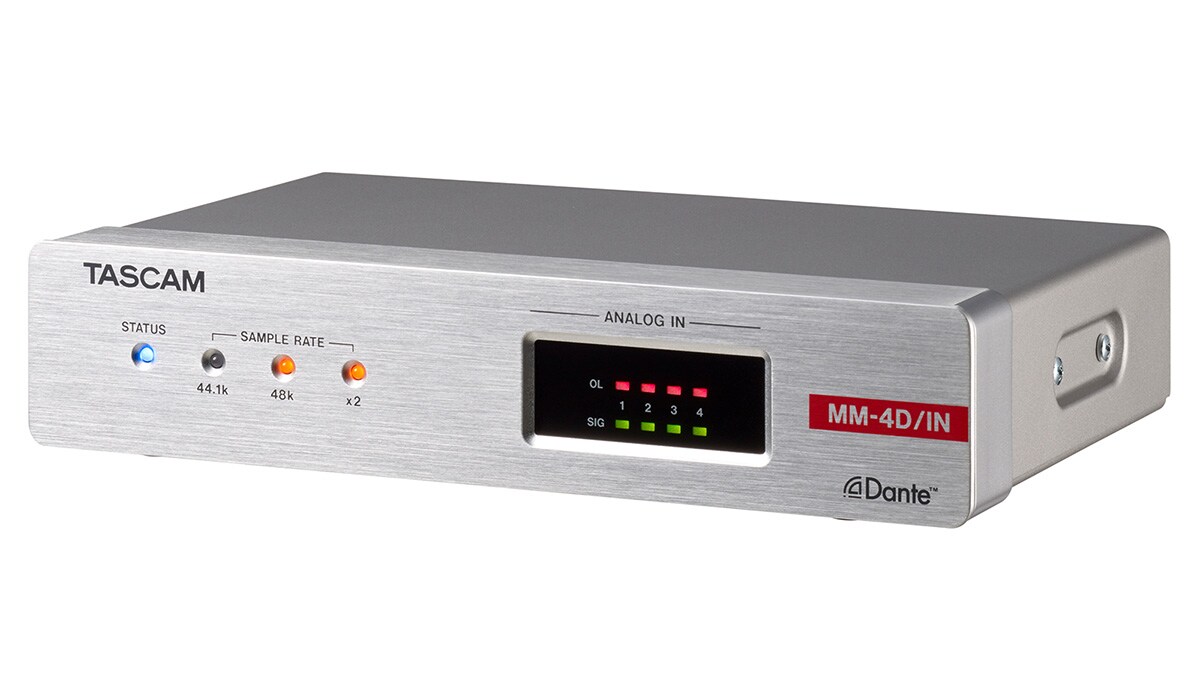

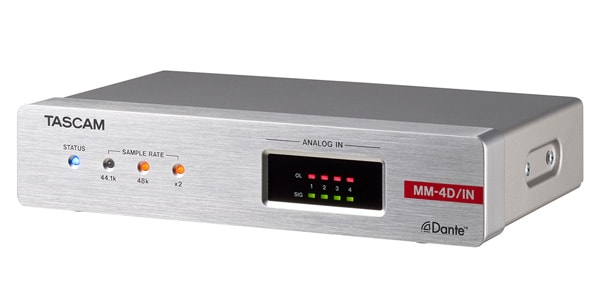

The MM-4D/IN-E is a compact, 1U half-rack size converter that converts 4-channel mic/line input signals to Dante. It is ideal as an analog input unit for any Dante system. It features DSP functionality and can be combined with the Dante Compact Processor Series, which offers a wide range of input and output specifications, to create small-scale systems. Supports 24-bit/96kHz. Analog mic/line inputs feature Euroblock connectors.

■Feature List

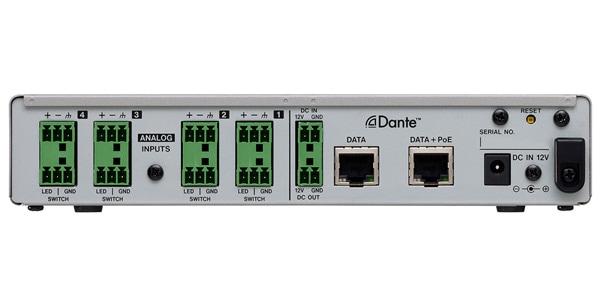

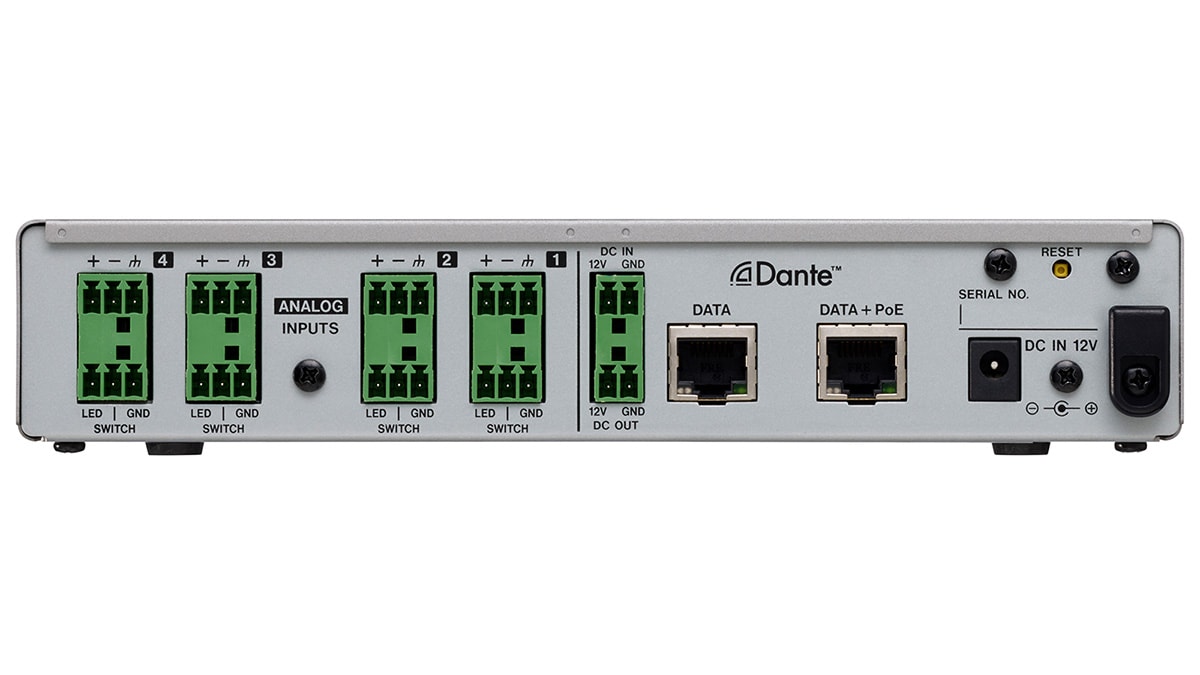

- 4 mic/line inputs with +48V phantom power
- Remote mic gain control
- 4 Dante inputs and outputs
- Supports PoE power over Ethernet
- Supports up to 24-bit/96kHz
- Equipped with a variety of DSP functions for audio processing tailored to the application/environment (input effects, 8-in/4-out matrix mixer)

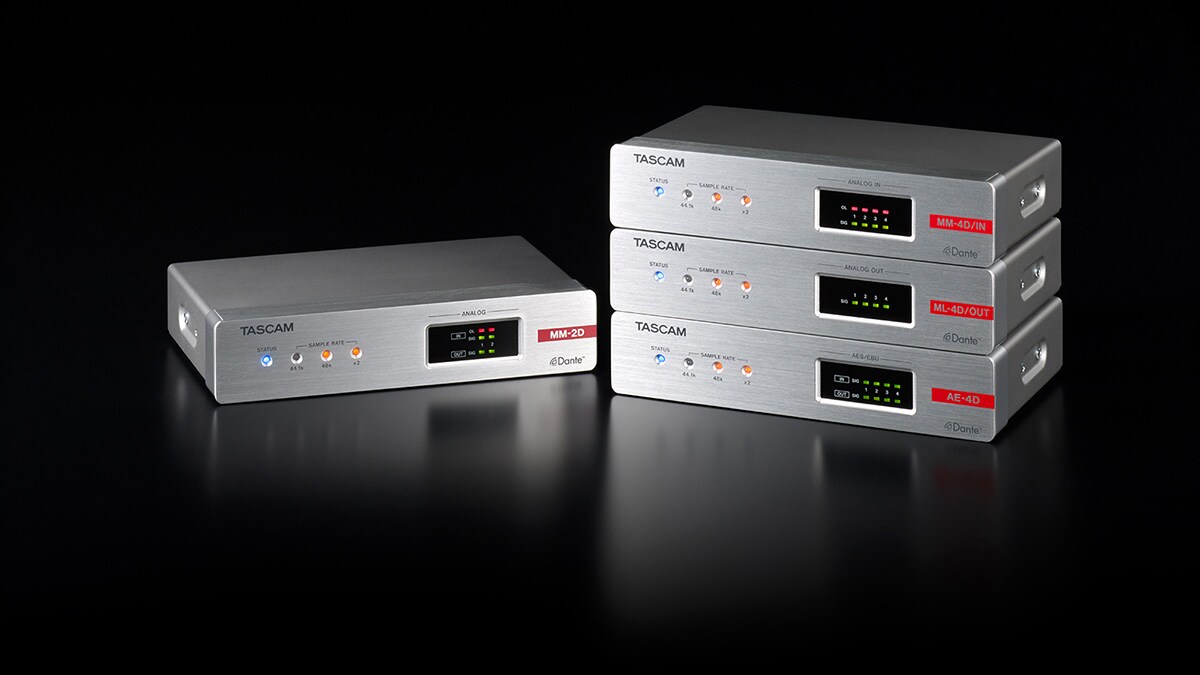

- Supports Dante daisy-chaining, eliminating the need for a network switch when connecting two Dante Compact Processor Series units
- Supports Dante Domain Manager, Dante Supports AES67 mode
- Scene preset function for flexible response to various area situations (up to 50 presets)
- Timer event function allows scene switching at set times (support planned for future upgrades)
- Two types of control software available: Windows, macOS, Android, and iOS
- For integrators: For overall system design/configuration, including input/output routing and DSP settings
- For end users: Simple configuration that brings together all necessary functions, such as area volume adjustment
- Remote control possible via GPI and Dante
- Half-rack mount size

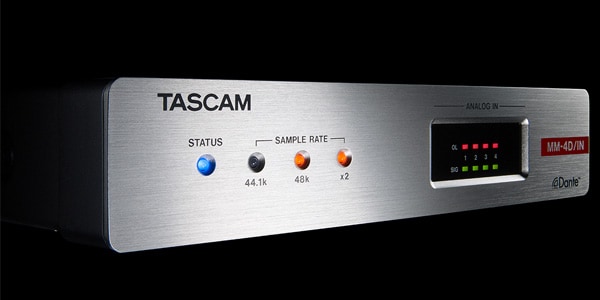

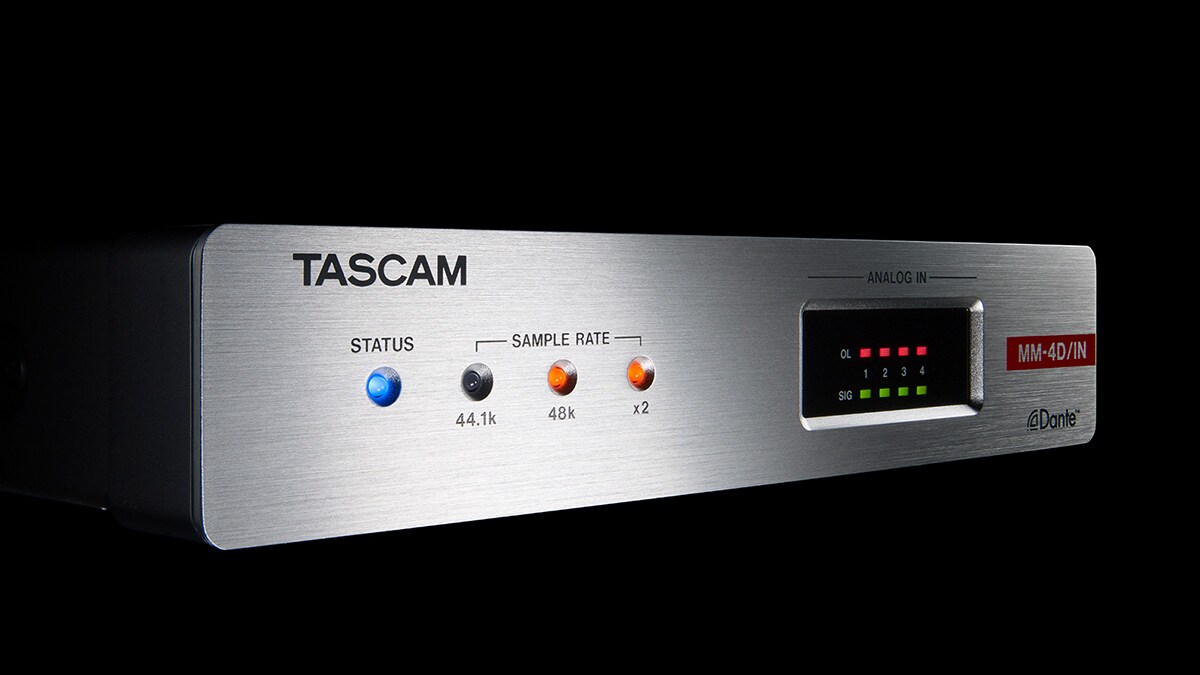

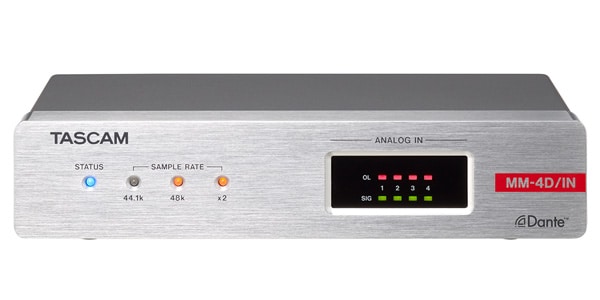

- Interface that displays LAN and Dante connection status and sample rate Equipped with a built-in indicator
- Signal/overload indicators for monitoring microphone/line input signal levels
- Reference level setting available (remote control only)
- Includes a surface rack mount angle for under-desk installation
- Dual power supply possible with the optional PS-P1220E AC adapter

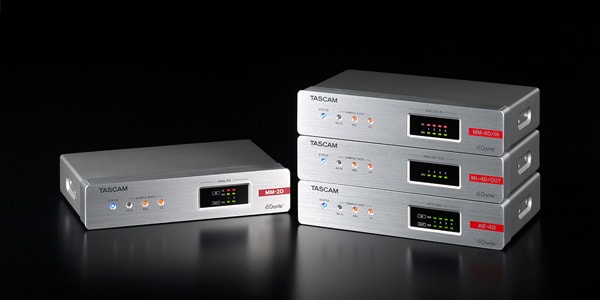

- Up to two Dante Compact Processor Series units can be mounted in a 19-inch rack using the optional AK-RS1 rack mount shelf

■ Rating: 44.1kHz/48kHz/88.2kHz/96kHz, 16bit/24bit, 4 channels
■ Power supply: PoE Class 0
　　　　　Dedicated AC adapter sold separately (TASCAM PS-P1220E)
■Power Consumption: 7.5W
■Dimensions (mm): 214(W) x 44.45(H) x 136.1(D)
■Dimensions with Bracket Attached (mm): 253(W) x 44.45(H) x 136.1(D)
■Weight: 885g
■Operating Temperature: 0-40°C
■Accessories: Mounting Bracket, Euroblock Plug, Cable Band Kit, Instruction Manual
