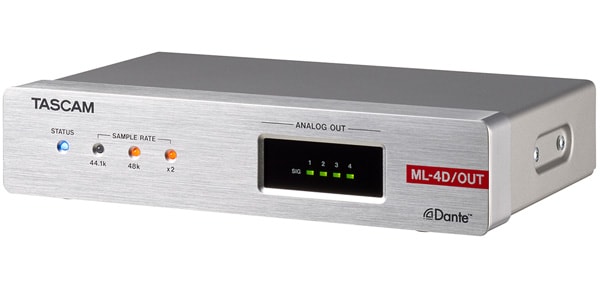

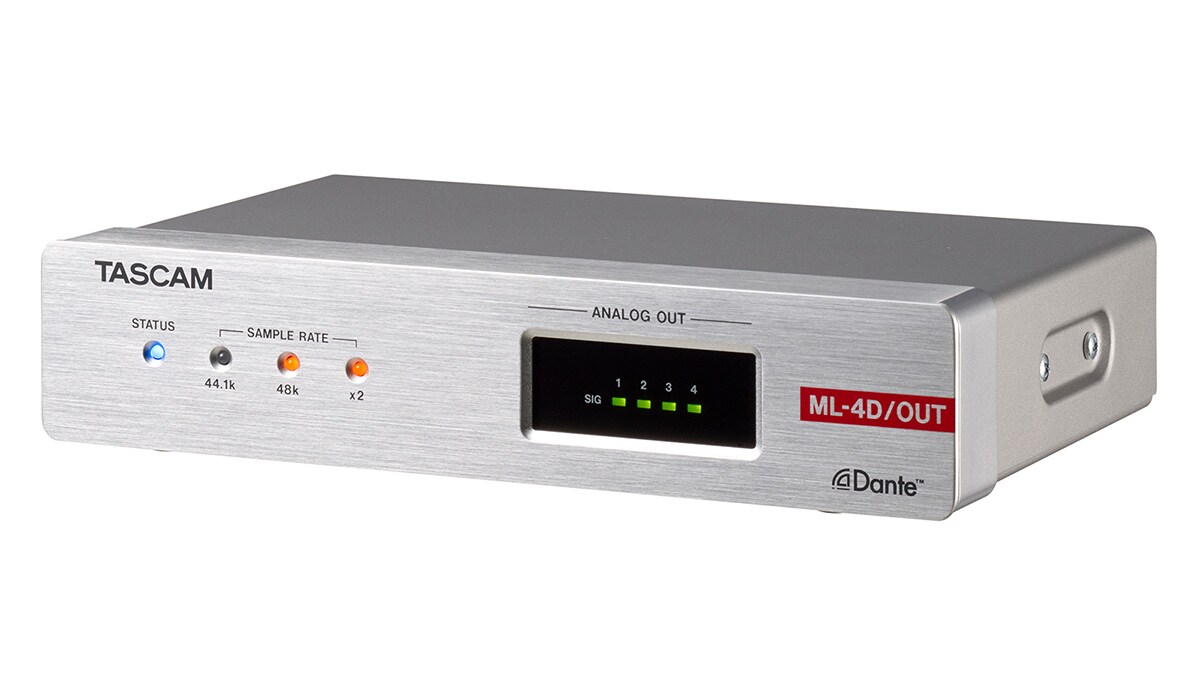

TASCAM / ML-4D/OUT-X

This compact, 1U half-rack size converter converts Dante input signals to 4-channel line outputs. It features built-in DSP functionality and supports 24-bit/96kHz audio. The analog line outputs are equipped with XLR connectors. It's recommended as an analog output unit for Dante systems.

The ML-4D/OUT-X is a compact, 1U half-rack size converter that converts Dante input signals to 4-channel line outputs. It is ideal as an analog output unit for any Dante system. It features DSP functionality and can be combined with the Dante Compact Processor Series, which offers a wide range of input and output specifications, to create small-scale systems. It supports 24-bit/96kHz audio. The analog line outputs are equipped with XLR connectors.

Features

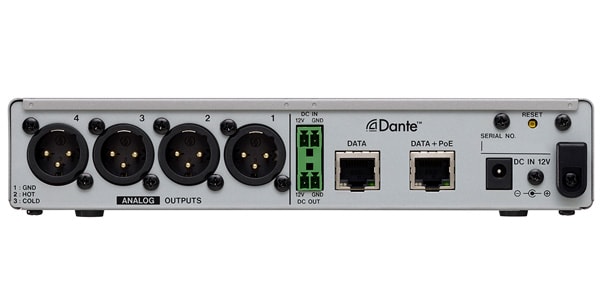

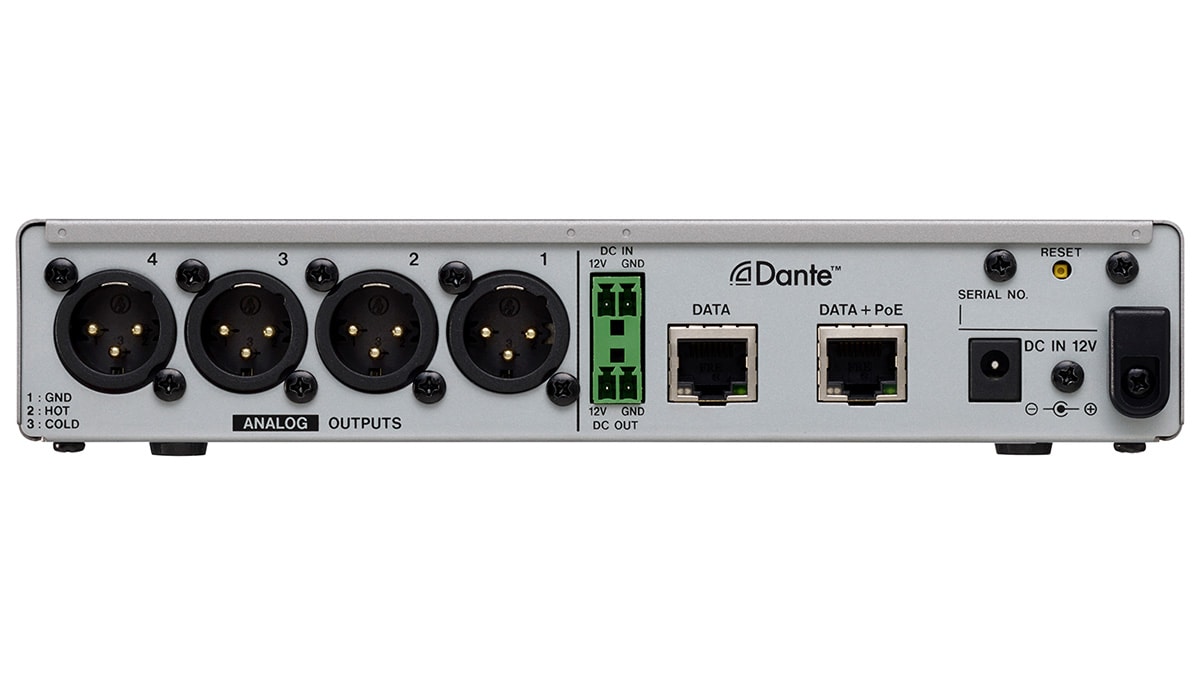

- 4 line outputs
- 4 Dante inputs and outputs
- Supports PoE power over Ethernet
- Supports up to 24-bit/96kHz audio
- Equipped with a variety of DSP functions (output effects, 4-in/4-out matrix mixer) to apply audio processing appropriate for the application/environment
- Supports Dante daisy-chaining when connecting two Dante Compact Processor Series units, eliminating the need for a network switch
- Dante Domain Manager, Dante Supports AES67 mode
- Scene preset function (up to 50 presets) flexibly adapts to various area situations
- Timer event function allows scene switching at set times (support planned for a future upgrade)
- Two types of control software available: Windows, macOS, Android, and iOS
- For integrators: For overall system design/configuration, including input/output routing and DSP settings
- For end users: Simple configuration that brings together all necessary functions, such as area volume adjustment
- Remote control possible via Dante
- Half-rack mount size

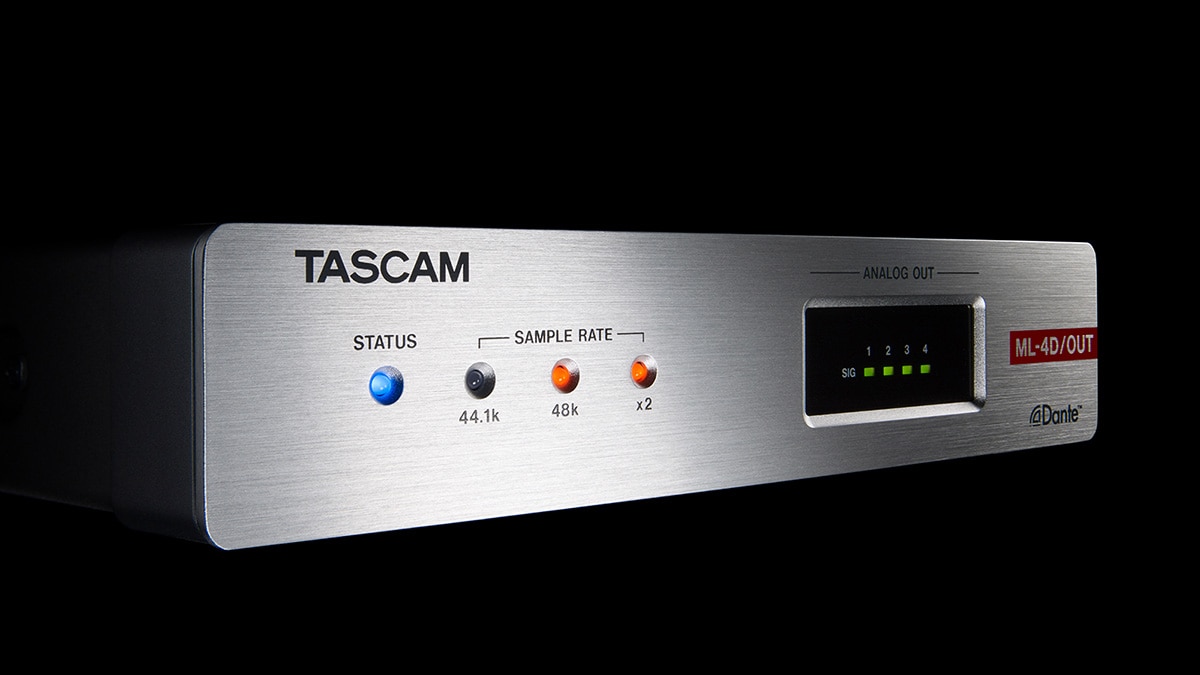

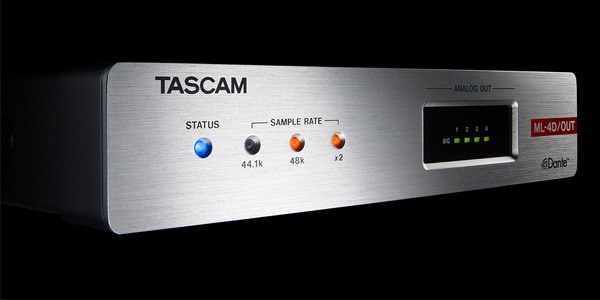

- Displays LAN and Dante connection status and sample rate Equipped with an indicator for monitoring the line output signal
- Equipped with a signal indicator for monitoring the line output signal
- Reference level setting possible (remote control only)
- Includes a surface rack mount angle for under-desk installation
- Power supply can be doubled using the optional PS-P1220E AC adapter

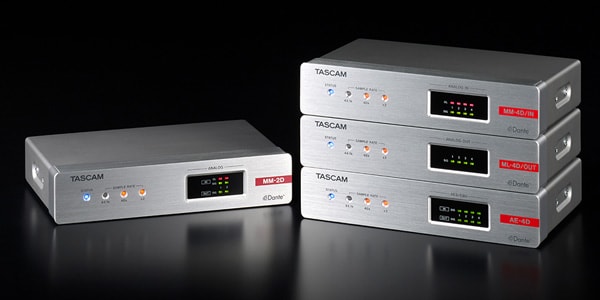

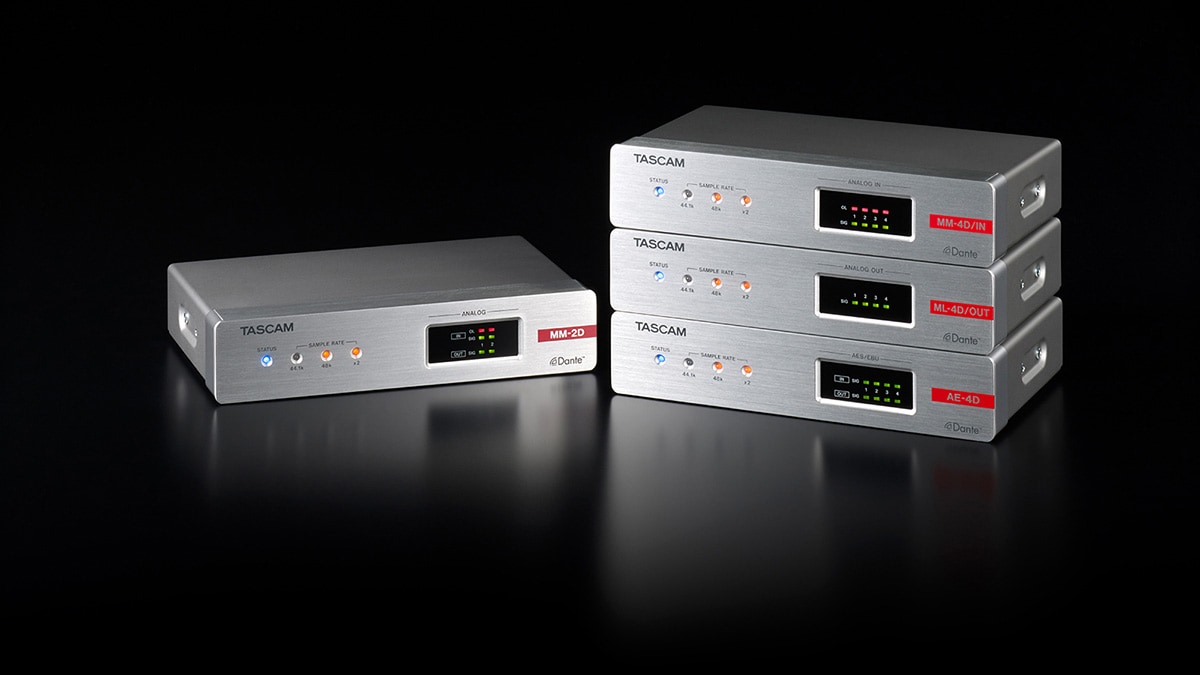

- Up to two Dante Compact Processor Series units can be mounted in a 19-inch rack using the optional AK-RS1 rack mount shelf

■ Rating: 44.1kHz/48kHz/88.2kHz/96kHz, 16bit/24bit, 4 channels
■ Power supply: PoE Class 0
　　　　　Dedicated AC adapter sold separately (TASCAM PS-P1220E)
■Power Consumption: 4W
■Dimensions (mm): 214(W) x 44.45(H) x 136.1(D)
■Dimensions with Bracket (mm): 253(W) x 44.45(H) x 136.1(D)
■Weight: 863g
■Operating Temperature: 0-40°C
■Accessories: Mounting Bracket, Instruction Manual
