TASCAM / AE-4D

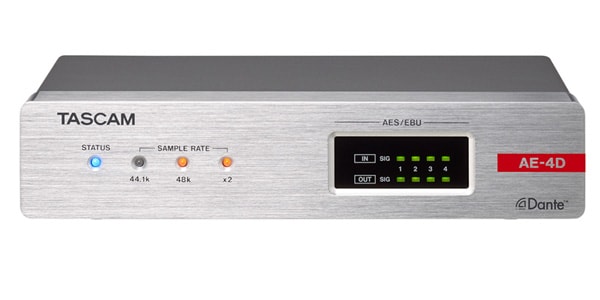

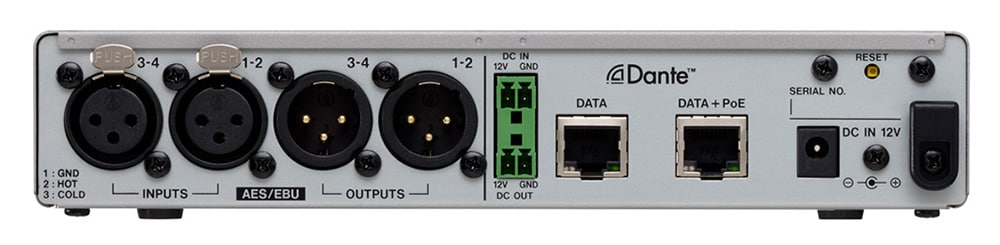

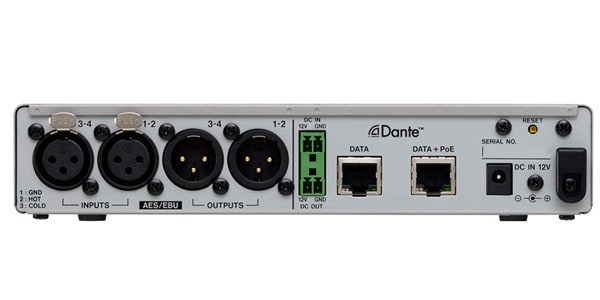

This compact converter from TASCAM is a 1U half-rack size converter that converts 4-channel AES/EBU signals to 4-channel Dante signals and vice versa. It supports 24-bit/96kHz and features XLR connectors for AES/EBU input and output.

The AE-4D is a compact, 1U half-rack size converter that converts 4-channel AES/EBU signals to 4-channel Dante signals and vice versa. It's ideal as an AES/EBU input/output unit for any Dante system. It features DSP functionality and can be combined with the Dante Compact Processor Series, which offers a lineup of models with various input/output specifications, to create a small-scale system. It supports 24-bit/96kHz and features XLR terminals for AES/EBU input and output.

■ Format and Channels
44.1k/48kHz, 16bit/24bit, 4 channels
88.2k/96kHz, 16bit/24bit, 2 channels (Double Speed)

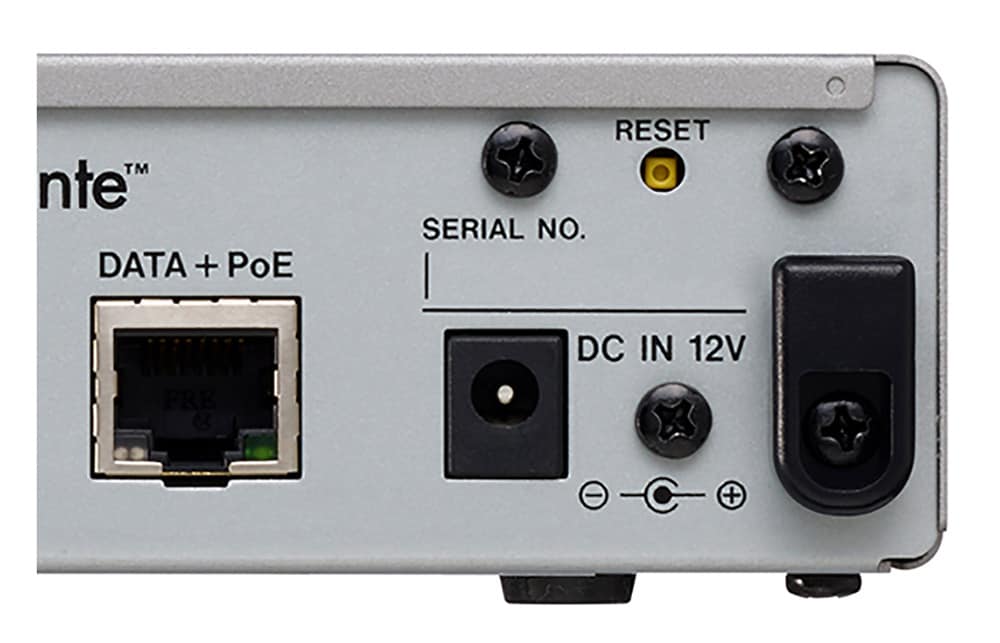

■ Power Supply: PoE Class 0
　　　　　Separate AC Adapter (TASCAM PS-P1220E)
■ Power Consumption: 3W
■ Dimensions (mm): 214(W) x 44.45(H) x 136.1(D)
■ Dimensions with Bracket (mm): 253(W) x 44.45(H) x 136.1(D)
■ Weight: 795kg
■ Operating Temperature: 0-40°C
■ Accessories: Mounting bracket, instruction manual
