audio technica / AT-OC9XEN MC type cartridge

MC cartridge step-up model equipped with a lightweight solid elliptical needle.

■ Specifications:
・Model: MC type
・Reproduction frequency range: 20-30,000Hz
・Output voltage: 0.35mV (1kHz, 5cm/sec.)
・Channel separation: 25dB (1kHz)
・Output balance: 1.5dB (1kHz)
・Needle pressure: 1.8-2.2g (2.0g standard)
・Coil impedance: 12Ω (1kHz)
・DC resistance: 12 Ω
・Recommended load resistance: 100Ω or more (when head amplifier is connected)
・Coil inductance: 25μH (1kHz)
・Static compliance: 20×10-6cm/dyne
・Dynamic compliance: 9×10-6cm/dyne (100Hz)
・Stylus: solid oval needle
・Tip curvature radius: 0.3×0.7mil
・Cantilever: Aluminum pipe
・Vertical tracking angle: 20°
・Outer dimensions: H17.1 x W16.8 x D25.7mm
・Cartridge mounting screw diameter: M2.6 x 2
・Weight: 7.6g

■ Accessories

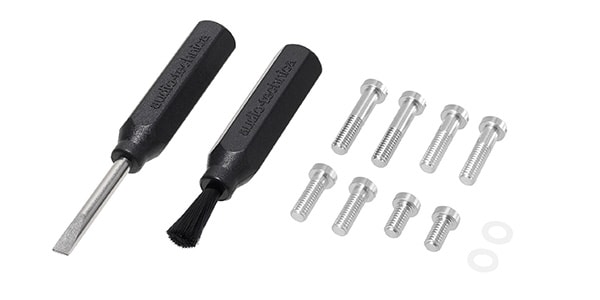

Non-magnetic driver x 1, washer x 2, protector x 1, brush x 1, cartridge mounting screws (M2.6) 12.0/10.0/8.0/5.0mm x 2 each
