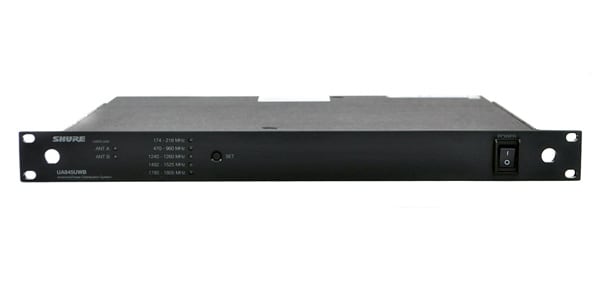

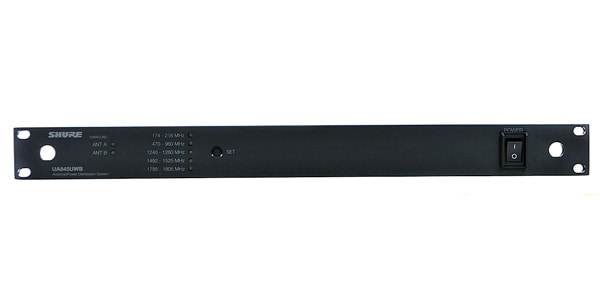

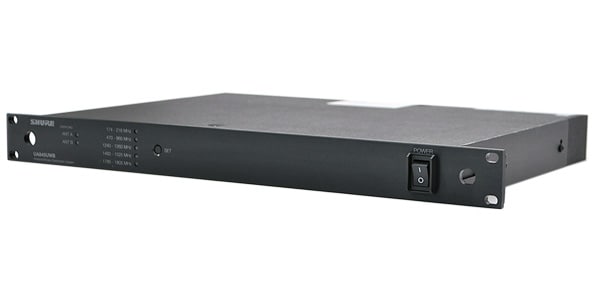

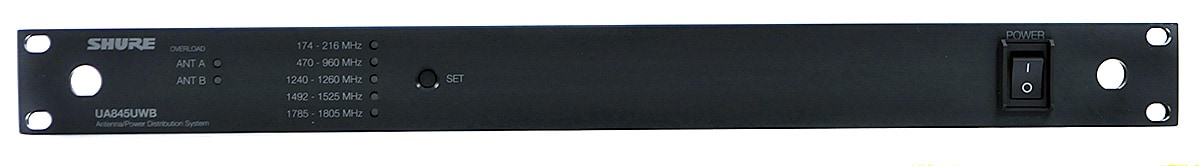

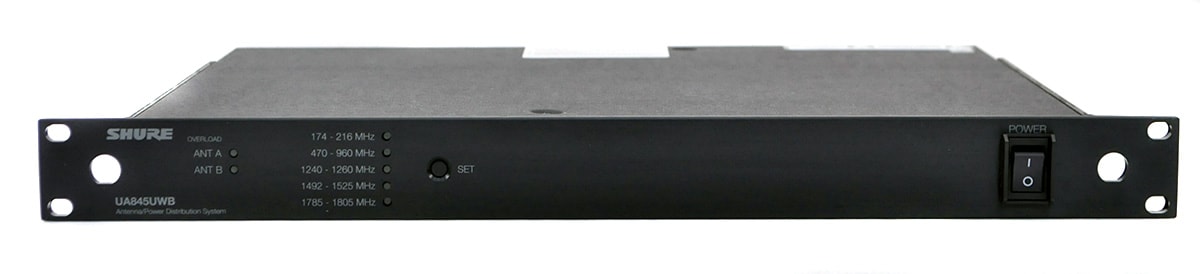

SHURE / UA845UWB-J

Shure's wideband antenna distribution system allows four receivers to use the same set of antennas. The RF signal booster compensates for insertion loss when distributing antenna inputs to multiple outputs.

· Up to 5 receivers can be connected.
· AC power and DC15V (2.5A) power supply are possible.
· Supported frequency bands: New frequency band, Type B (470-960MHz), 1.2GHz band (1240-1260MHz).

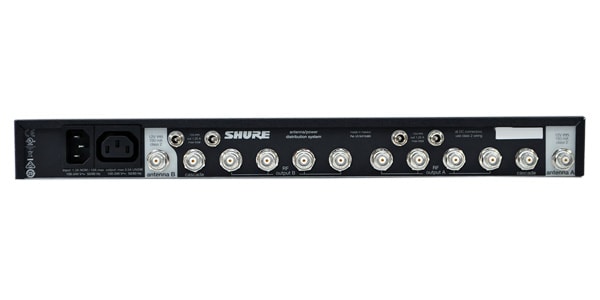

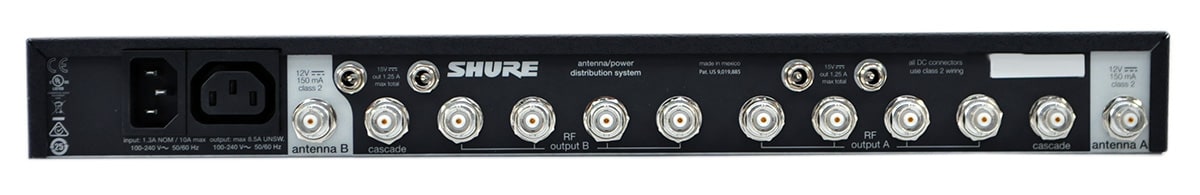

· RF cascade output is possible.
Dimensions: Width 483 x Height 45 x Depth 295 mm
Weight: 3.3 kg

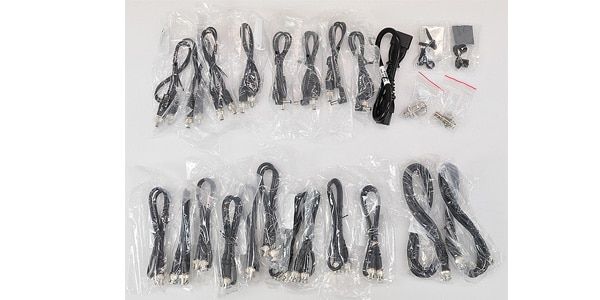

Accessories: 4 locking DC power cords (for ULXD4), 4 non-locking DC power cords (for QLXD4, BLX4R), 10 55 cm BNC cables, 2 180 cm BNC cables, 2 bulkhead adapters, 1 AC power cable (IEC), 1 AC power cascade cable (for connecting a second UA845UWB or UR4, ULXD4D, ULXD4Q receiver), complete rack mount hardware kit
Compatible products: AD4D, AD4Q, ULXD4, ULXD4D, ULXD4Q, QLXD4J, BLX4R
