Cymatic Audio / UTRACK24ADATMODULESE

This great value set includes the uTrack24, a 24-channel, 1U rack-mountable multi-track recorder that can record to a USB-connected HDD drive, and the dedicated interface card, the uTrack24 ADAT Module! Equipped with 24x24 balanced inputs and outputs, it is suitable for all types of recording, including band performances and live recordings.

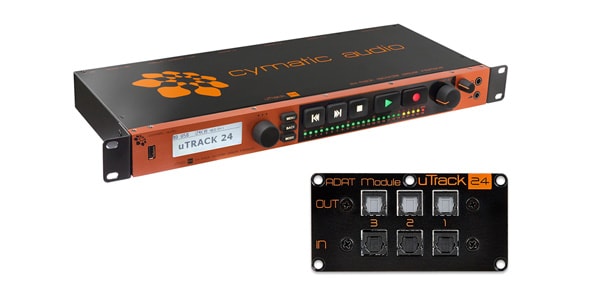

■ Multitrack Recorder + Interface Card, UTRACK24 + UTRACK24ADATMODULE

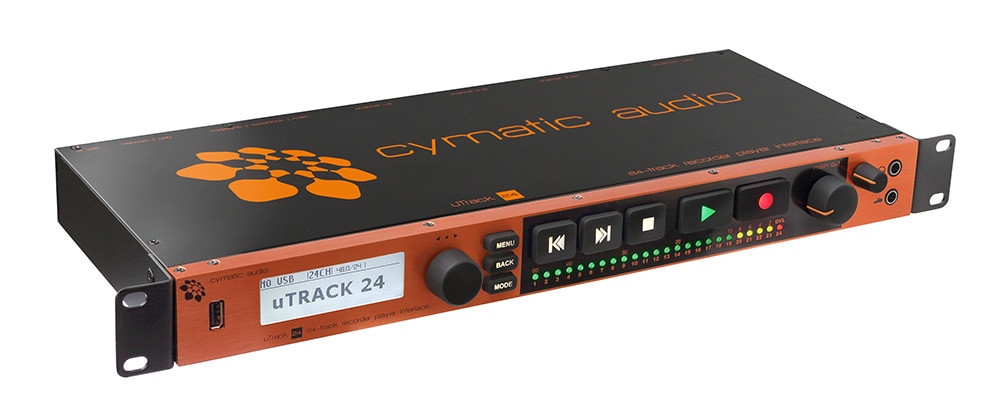

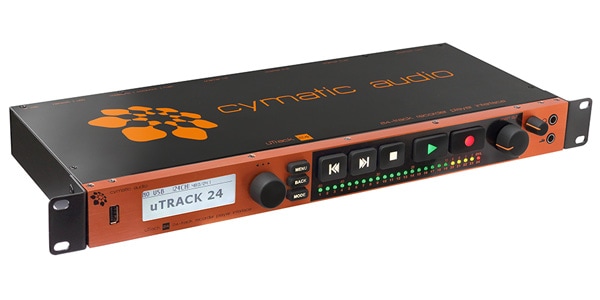

■ Multitrack Recorder ""UTRACK24""

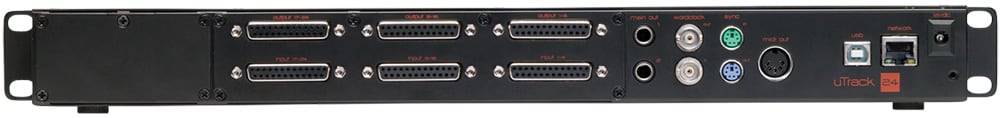

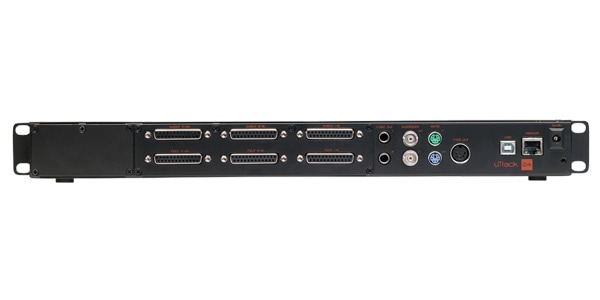

- D-sub 25-pin (TASCAM format), analog balanced input/output*1
- Optional 24-channel digital input/output slot (future expansion slot)
- 24-bit/96kHz sampling rate (24 channels 24-bit 44.1/48 kHz, 8 channels 96 kHz)
- Direct recording to a hard disk drive*2 connected to the front-panel USB port

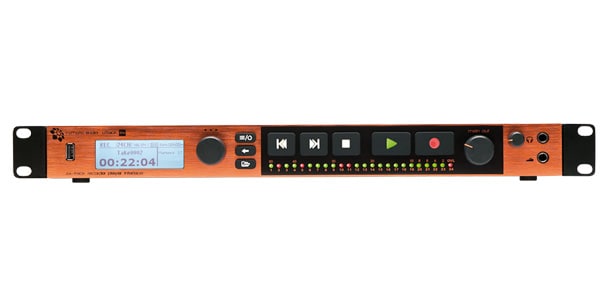

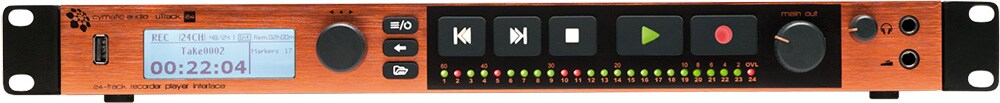

- Tri-color LED hardware meters for each input channel
- Large, easy-to-operate transport control buttons
- The built-in DSP mixer outputs a stereo internal mix (level, pan, mute, and solo controls) to the front-panel headphone jack. When adjusting the internal mix, 24 input level meters are displayed as 24-segment hardware meters, allowing for accurate mixing even without external meters.
- Two uTrack24 units can be synchronized and used as a 48-track recorder. (Supported via a firmware update)
- RJ-45 network connection will enable control from dedicated external software. (Currently unused)
- External synchronization via BNC word clock input/output
- A large LCD screen, dedicated menu buttons, and a rotary encoder with pushbuttons allow for quick setup.


*1 Input/output (D-sub 25-pin) cables are not included. Purchase them separately.
*2 This product does not include built-in storage. (A separate USB hard drive is required.) Be sure to use a USB HDD (hard drive). Use of USB flash drives (including SSDs) is not recommended.

■Interface Card: Track24 ADAT Module
-Interface Card
-ADAT
-For uTrack24
