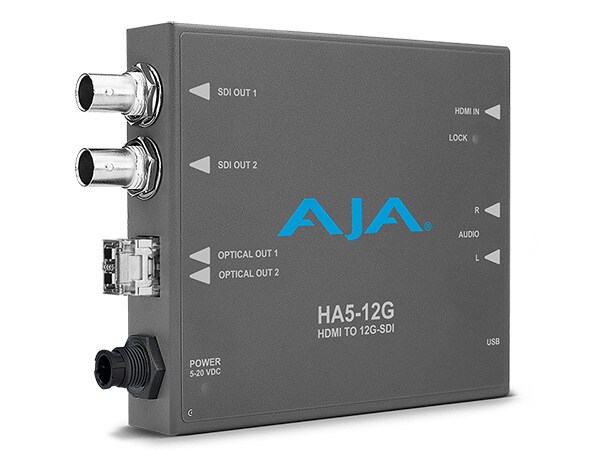

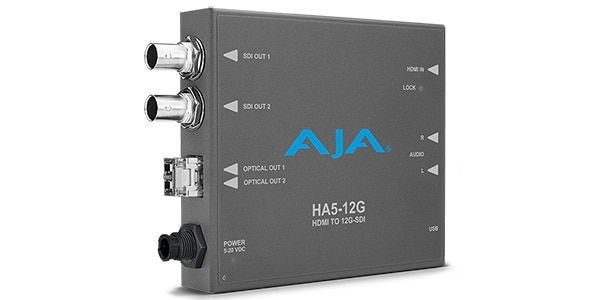

AJA Video Systems / HA5-12G

Converts HDMI 2.0 input to 4K/UltraHD single link 12G-SDI output.

Main features

-Converts up to 4K/UltraHD 60p from HDMI 2.0b to 12G-SDI and distributes to two inputs

-Supports up to 60p input in 4:4:4/4:2:2/4:2:0

-HDMI EDID emulation

-Supports 4K/UltraHD source mapping with 2SI (2 Sample Interleave)

-Analyzes HDR infoframe data from HDMI input to match HDMI v2.0b/CTA-861-G

-HDR Infoframe decoder defined in CTA-861-G and HDMI v2.0b

-Selectable embedded audio source: HDMI or analog

-Input signal Lock LED next to the HDMI input connector indicates the type of SDI output signal according to the HDMI input signal:

-No light = no signal, green = SD-SDI, red = HD-SDI, orange = 3G-SDI, purple Blue = 6G-SDI, Blue = 12G-SDI

Configured via USB port using Mini-Config software

5-20 VDC power supply (Universal power supply DWP-U-R1 included)

5-year warranty

HDMI 2.0 to 12G-SDI converter

2 x 12G-SDI DA (distribution) outputs

Supports up to 8 channels of HDMI audio or 2 channels of analog audio (RCA)

8 or 2 channels of digital audio embedded into 12G-SDI

Video formats:

(4K) 4096 × 2160p

(UltraHD) 3840 × 2160p

(2K) 2048 × 1080p

(HD) 1920 × 1080p

(HD) 1920 × 1080i

・(HD) 1280 × 720p
■Digital video input:

・1 × HDMI Type A connector, HDMI v2.0b

・YCbCr 4:2:2/4:4:4/4:2:0

・RGB 4:4:4, SMPTE or full level

・8, 10, 12-bit (HFR 4K/UltraHD 4:4:4 up to 8-bit)

・HDR Infoframe decoder as defined in CTA-861-G and HDMI v2.0b

・(4K) 4096 × 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

・(UltraHD) 3840 × 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

-(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

-(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

-(HD) 1920 x 1080i 25, 29.97, 30

-(HD) 1280 x 720p 50, 59.94, 60

■Digital video output

-12G-SDI BNC x 1, SMPTE-259/292/424/2081/2082

-YCbCr 4:2:2/4:4:4

RGB 4:4:4, SMPTE or full level

8 or 10 bit

2 sample interleaved (2SI) 4K/UltraHD source mapping

1 x 12 Gb SDI

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1 x 6 Gb SDI

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080p (RGB 4:4:4) 50, 59.94, 60
・1 x 3 Gb SDI (Level A or B Dual Link)
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i 25, 29.97, 30
(HD) 1280 x 720p* 50, 59.94, 60
・1 x 1.5 Gb SDI
(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080i 25, 29.97, 30

(HD) 1280 x 720p 50, 59.94, 60

*1280 x 720p is level A only

■Digital Audio Input: HDMI Embedded Audio, 24-bit, 8-channel

■Analog Audio Input: 2 x RCA connectors, 2-channel -10dBu (nominal)

■Digital Audio Output: SDI Embedded Audio, 24-bit, 8-channel

■User Interface: Connect the included cable to the USB port

and access Mini-Config from Mac or Windows The software allows you to check the device settings and status.
■SIZE: 116.84(W) x 102.11(D) x 22.86(H) mm 0.3 kg
* The HA5-12G consumes approximately 11W of power. It requires convection cooling. It is normal for it to be hot to the touch. When installing the device, ensure there is an air passage for proper internal cooling.
Do not stack the HA5-12G with other mini-converters.
