■ DSP plug-in
■ Thunderbolt 3
■ The UAD-2 Live Rack Core comes with basic UAD plug-ins such as the Teletronix LA-2A, 1176 compressor, and Pultec EQ.

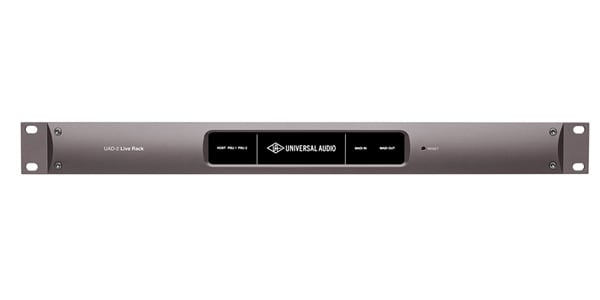

The 16-channel MADI effects processor UAD-2 Live Rack enables live sound engineers to use real-time UAD processing and industry-leading UAD plug-ins to deliver studio-quality mixes in the field.
Designed to withstand the rigors of live sound, you can combine up to four UAD-2 Live Rack units for signal processing over up to 64 channels of MADI.
■ Main features
・16-channel MADI effects processor for live mixing with real-time UAD QUAD core processing and UAD plug-ins
・Achieve a live sound mix that utilizes the well-established UAD powered plug-in
・UAD plug-in suite including Teletronix LA-2A, 1176 compressor, Pultec EQ, etc. is included as standard
・UAD plug-ins licensed with your UA account can be used*
・Combining up to 4 UAD-2 Live Rack units to process up to 64 channels of optical MADI signals**
・Save a snapshot file that makes it easy to recall all settings related to the show
・Import snapshots via MIDI or Soundcraft Vi's CUE feature
・Connect to Soundcraft Vi console via Ethernet for snapshot CUE control
(Belkin USB-C to Gigabit Ethernet adapter and Cat 5 Ethernet cable are required separately)
・Thunderbolt 3 connection with Mac (for UAD plug-in control)
*Some UAD plug-ins are not compatible with this product. Please see the support page
**Up to 4 UAD-2 Live Rack units can be combined at sample rates of 44.1/48 kHz and up to 2 at 88.2/96 kHz.
Specifications are subject to change without notice.
■ Live Rack application
The Live Rack application gives FOH engineers intuitive access to drag-and-drop, copy-and-paste, keyboard navigation, plug-in zoom, save and recall channel strip presets, and snapshot settings.
Designed for smooth operation in live settings, the Live Rack app has a large text and GUI that allows you to adjust parameters quickly and easily. It also features MIDI snapshot recall and software integration with a networked Soundcraft Vi console.
■ Safety device function

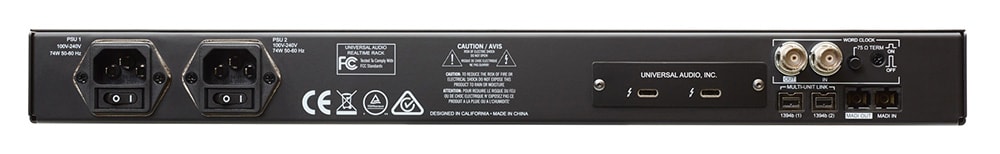

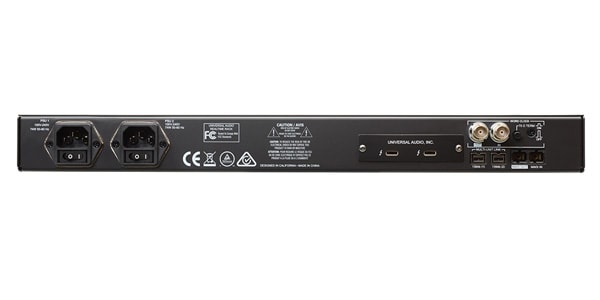

UAD-2 Live Rack is equipped with professional safety features to withstand live sound applications that require high reliability. Due to the internal redundant power supply, UAD-2 Live Rack will continue audio processing even if one of the power supplies fails. If the Live Rack app or computer fails, or if the Thunderbolt cable isn't connected, UAD-2 Live Rack will handle the audio with the last plug-in settings you made. Also, if the Live Rack app is in "safe mode", it will prevent catastrophic configuration changes during the show.
*Please refer to manufacturer site
for the latest operating environment.
