IK MULTIMEDIA / UNO Drum

A portable analog/PCM drum machine that freely creates analog/digital grooves.

An ultra-compact drum machine has arrived from Italy's IK Multimedia, which is known for its product lineup of music apps and peripherals that can be used on mobile devices. It is a brother model of the analog (hardware) synthesizer UNO Synth, and like UNO Synth, it is a drum machine jointly developed with the Italian analog synthesizer maker Soundmachines. It is a model that can be easily programmed while having a hybrid specification that combines a fat, punchy analog sound with a PCM sample, and advanced programming functions.

○ Product overview of UNO Drum
・UNO
Drum is a range that combines fat and punchy analog beats with sharp edges by combining a core kit (2 types of kick, snare, clap, hi-hat) with 6 types of real analog sound sources and 54 types of PCM samples. Can produce a wide groove. PCM samples can be assigned to 12 elements including toms, rims, cowbells, rides, crash cymbals, kicks, snares, claps, and hi-hats, making it possible to build the strongest kit that combines analog and PCM.

・SampleTank, 6 types of analog sound sources designed by Soundmachines
Equipped with 100 types of preset kits that combine 54 types of PCM samples carefully selected from 4. Of course, each kit can be freely edited and saved in your favorite preset.

・The editing of each element that is the material of the sound is also UNO

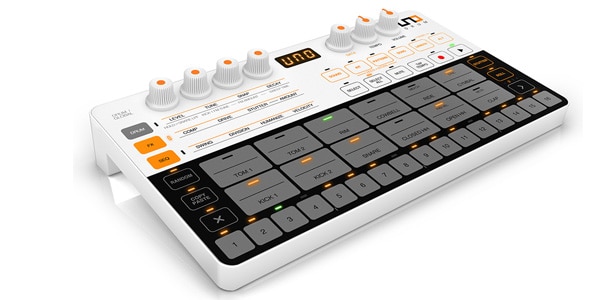

The matrix-type panel, which was also popular with Synth, allows you to quickly adjust LEVEL, TUNE, DECAY, etc. with the knob. In addition, you can enjoy the parameters unique to analog sound sources in real time by operating the knobs.

・UNO
Drum has a built-in 64-step sequencer, and you can program fine drum patterns with just the main unit. You can use the pads on the panel to step through patterns or record patterns in real time.
In order to create a more natural groove, it is also possible to automate the eight parameters included in the tone step by step. You can save the programmed pattern as a song that combines up to 64 patterns. Each pattern in the song can be triggered freely in any order.

・UNO
Drum is designed to integrate with your computer-based DAW system at home and set up with iOS mobile devices such as the iPad. In addition to USB MIDI, MIDI IN / OUT with a 2.5 mm jack allows you to easily connect and play traditional MIDI devices. In addition, the UNO Drum itself has an audio input, so you can daisy-chain other synthesizers such as the UNO Synth without an additional mixer.

■ Features:
■ Specifications:
○ Main specifications of UNO Drum
[Synthesis]
・Type: Analog method (6 voices by real analog circuit) + PCM method
(54 types of samples)
・Polyphony: 11 voices

[Preset]
・100 drum kit
・100 patterns (64 steps)

[Pad and control]
・12 touch sense pads with 2 levels of velocity zone
・4 dynamic encoders

[Sequencer]
・64-step sequencer
・Real-time and step recording
・8 real-time parameter recording for each step
・Song mode that allows you to freely combine up to 64 patterns

[Effect]
・3 types of performance effects (STUTTER, ROLL, RANDOM)
・2 types of analog master effects (COMP, DRIVE)

[Connecting terminal]
・Audio out: 3.5mm mini stereo jack
・Audio-in: 3.5mm mini stereo jack
・MIDI IN/OUT terminal: 2.5mm mini jack (converted to DIN with the attached dedicated cable)
・USB terminal: Micro USB type

[Power supply]
・AA batteries x 4
・USB bus power
