BAE / 1084 PAIR Stereo Pair Microphone Preamp/EQ (PSU Set)

BAE's stereo pair of mic preamps/equalizers with selectable HF frequency center and low pass filters.

*This product is a stereo pair.

■Channel Strip

The BAE 1084 is designed in exactly the same way as the original NEVE 1084, with the same chassis structure, Elma switches, and Carnhill transformers. Introduced 10 years after the 1073, the 1084 has several enhancements, notably a selectable HF frequency center and low-pass filter.

■Main Features

- Class A, transformer-coupled design in a 1U chassis
- 80dB GAIN supports low output ribbon microphones
- Input impedance switchable from 1200-300Ω
- Supports line level input
- High impedance DI for guitars, basses, etc.
- Equipped with polarity reversal switch
- Equipped with the same Carnhill St Ives transformer as the 1073 and 1084

■Specifications

Number of channels: 1
Frequency response: 10Hz-55kHz
Equipped with phantom power
EQ: 3-band EQ, high-pass filter, low-pass filter
Analog inputs: 1 x XLR (mic/line), 1 x 1/4"" (DI Hi-Z)
Analog outputs: 1 x XLR

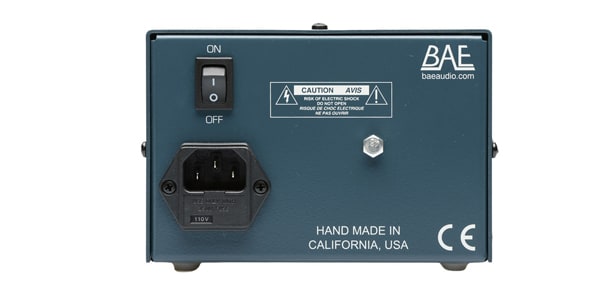

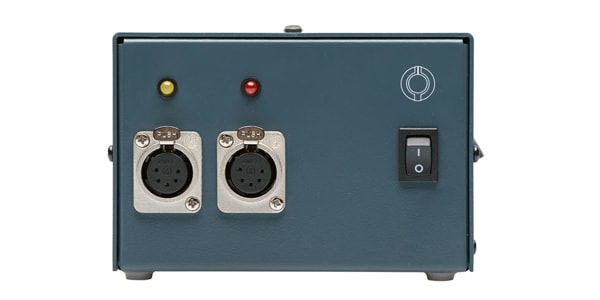

Power requirements: Dedicated external power supply included
Dimensions: 19W x 1.75L x 9D (1U rack size)
Weight: 4.54kg
