OYAIDE / SLP-240S

Simply cut the cable, insert it, and secure the cover to create a high-strength, high-durability, high-performance solderless straight plug.

■Plug for solderless cable
■S-type plug
■Plug: SLP-240S
■Body: Diamond-cut brass
■Plating: Nickel
■Insulator: POM
■Cover: Machined brass
■Surface finish: Matte chrome plating

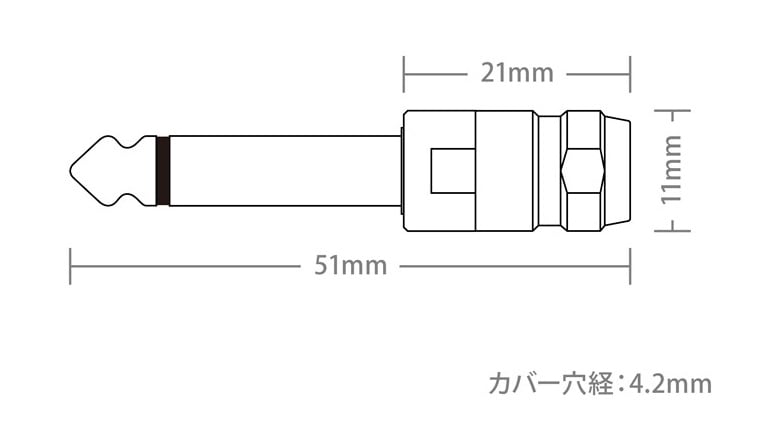

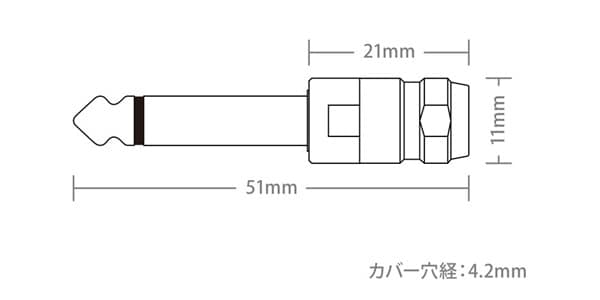

■Cover hole diameter: 4.2mm
*Please use the dedicated SLD-ZERO cable.

～Manufacturer's description～

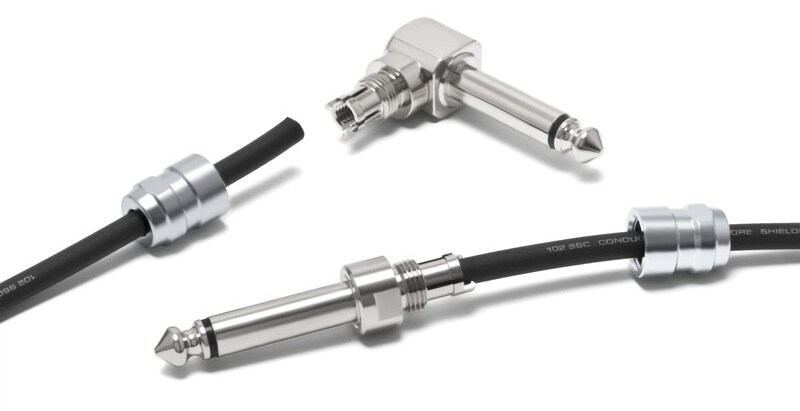

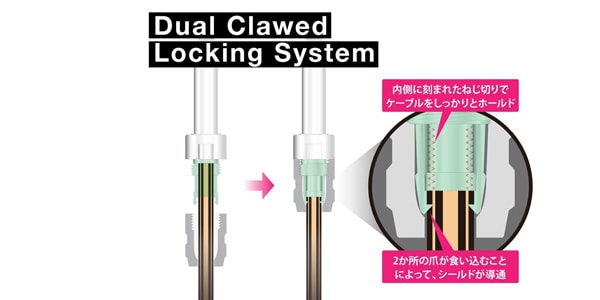

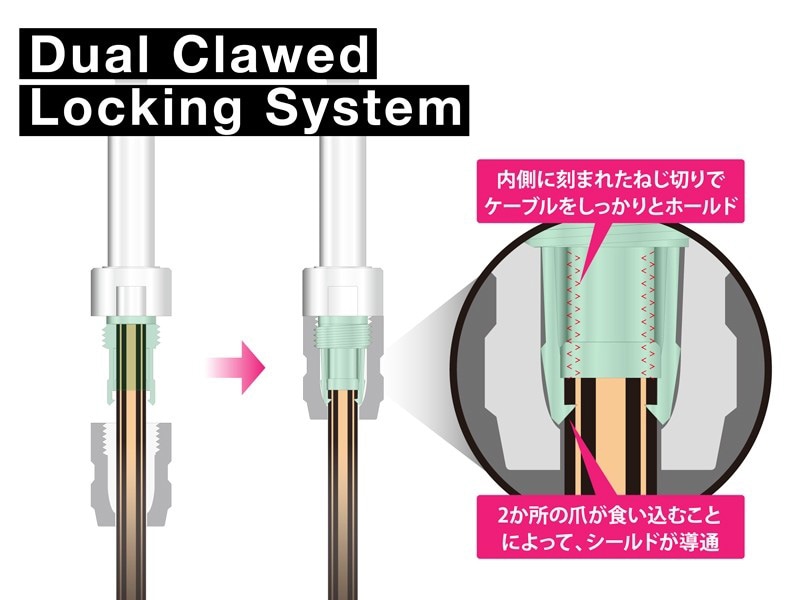

NEO's original solderless plug SLP-240S / L is a unique solderless plug that combines high performance, high strength and durability thanks to NEO's unique Dual Clawed Locking System (patent pending).

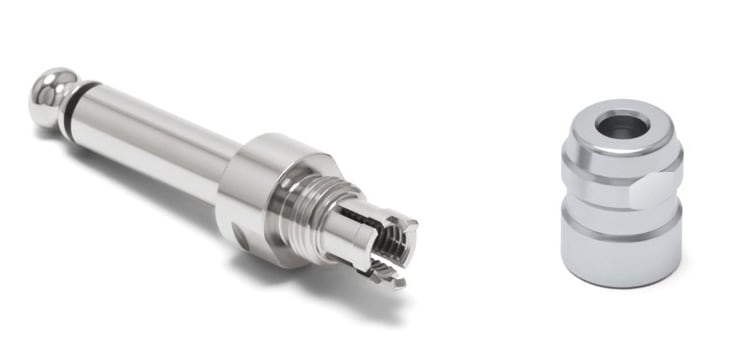

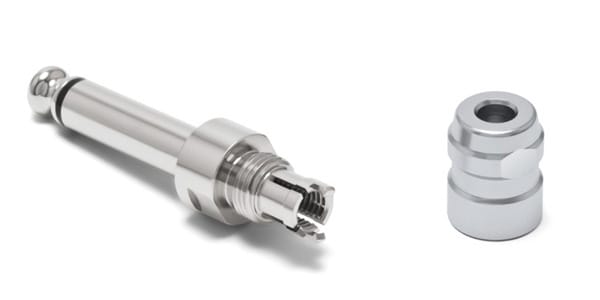

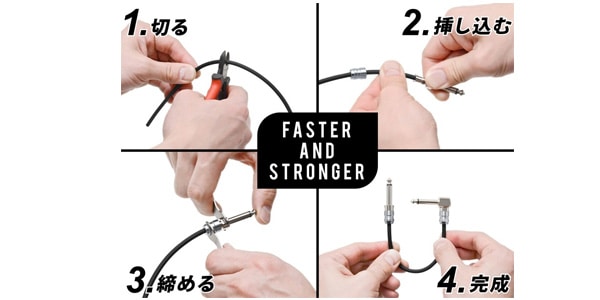

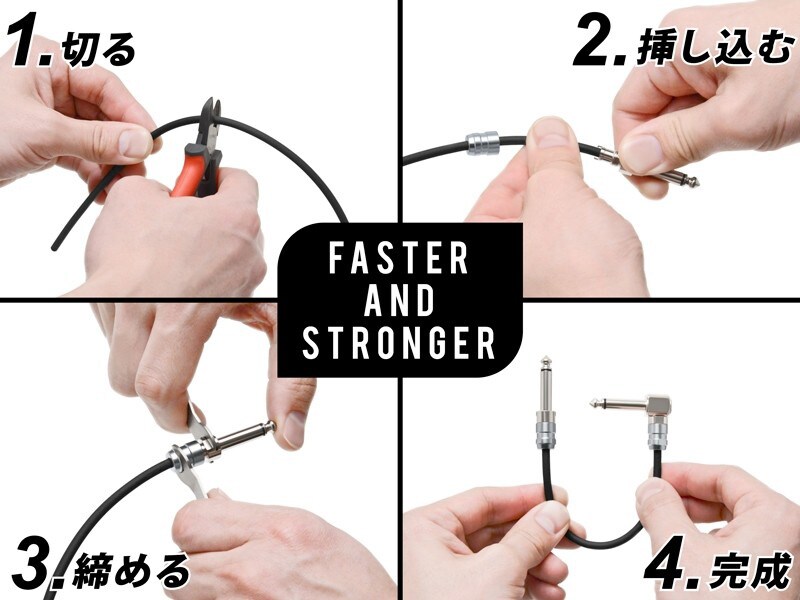

Each part, carefully cut out from a single brass bar by diamond cutting, functions without any waste. By passing the cover over the cable and inserting it into the body, it will connect with the center pin terminal. Then, tighten the cover and finish by fixing it with two wrenches, which tightens the claw-shaped contacts on the main body and the flange, and the two claws bite into the outer sheath of the cable, making the shield conductive.

Furthermore, the cable is held firmly and firmly fixed by the threads engraved on the inside of the flange.

[Precautions when using]

- If you want to reuse it, place your fingers on the claws on the main body, hold the cable and gradually spread it. When the cable has spread enough that it can be easily removed, pull out the cable. Since it is a brass part, if you try to spread it with force, the flange may break and it may become impossible to reuse.
- Please use the dedicated SLD-ZERO cable.

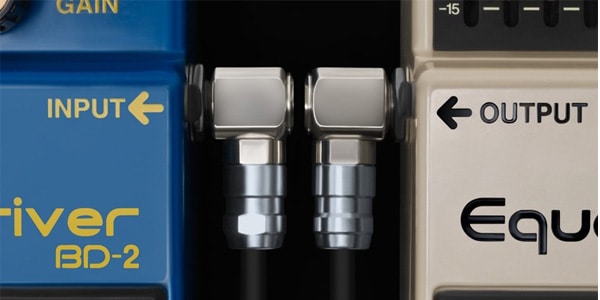

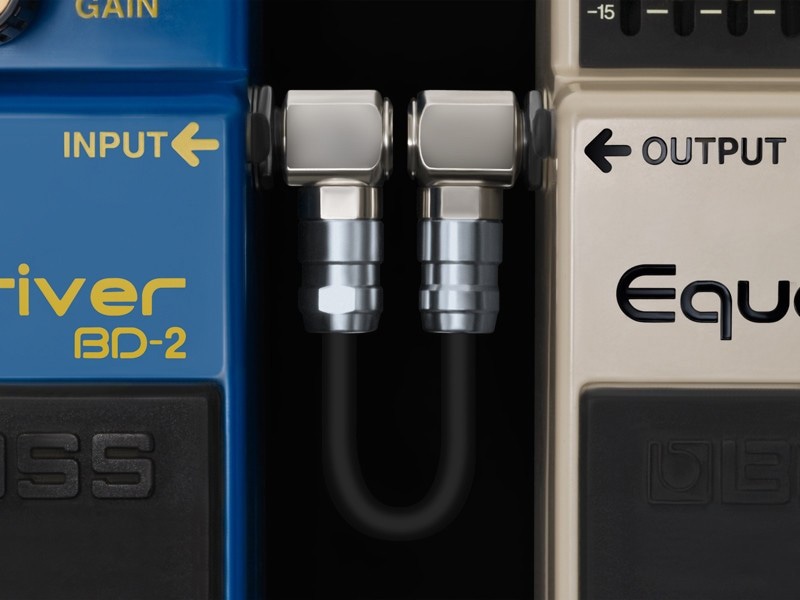

- Be sure to use two wrenches, and be careful not to fix the L-type by holding the plug body.
