PANASONIC / WX-SP104

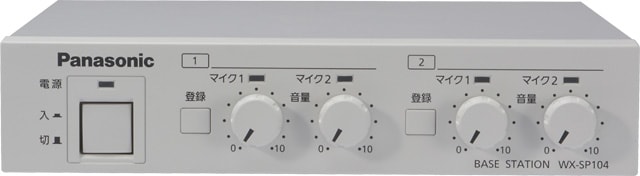

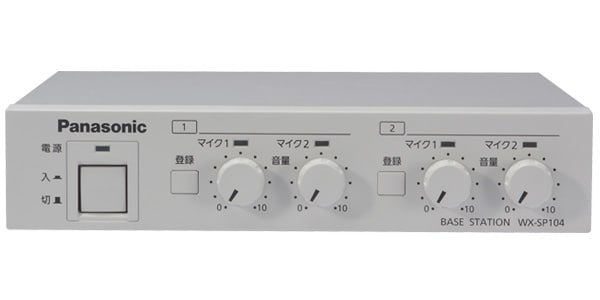

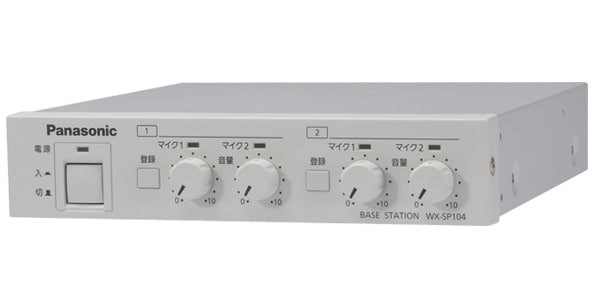

This is a volume control unit for PANASONIC wireless microphones. It is half the size of 1U and saves space. The audio output can be selected according to the channel output, mixing output, or connected device. By connecting the mixing output of another base station to the mixing input, you can mix up to 8 microphones.

●Features
oHalf the size of 1U, it saves space.
oIt can adjust the volume of wireless microphones (WX-ST100, WX-ST300) and also supply power to the connected antenna station (WX-SR102).
oAudio output can be selected according to channel output, mixing output, or connected device.
oBy connecting the mixing output of another base station to the mixing input, mixing of up to 8 microphones is possible.

●Specifications
Power supply: AC100 V 50Hz / 60 Hz (uses the dedicated AC adapter included)
Power consumption: Maximum 12 W
Frequency response: 100 Hz to 10 kHz ±1 dB
Distortion rate: 1% or less (100 Hz to 10 kHz)
S/N: 70 dB or more
Antenna station connection
Number of connections: 2
Connection connector: RJ-45
Output power: 24 V ±10% (base station output terminal) constant output (not linked to the power switch)
Output current: Maximum 500 mA
Audio input: 2 systems (microphone 1, microphone 2) (per connector)
Audio circuit: 4 circuits (with front volume)
Audio input
Number of systems: 1 system (mixing input (additional input terminal))
Rated input: -20 dBV (With front volume) Balanced

Input impedance: 10 kΩ or more

Input terminal: Euroblock connector

Audio output

Number of systems: 5 systems ([1] Mic 1, [1] Mic 2, [2] Mic 1, [2] Mic 2, Mixing output)

Rated output: -20 dBV Balanced

Output terminal: Euroblock connector

Display (indicator): Power, [1] Mic 1, [1] Mic 2, [2] Mic 1, [2] Mic 2

Ambient temperature/humidity range: 0 ℃ to +40 ℃ / 10% to 90%

Dimensions

Main unit: 210 (width) x 44 (height) x 210 (depth)

AC adapter: 66 (width) x 32 (height) x 142 (depth) (excluding AC adapter cable and power cord)

Weight

Main unit: Approximately 1.0 kg
AC adapter: Approx. 0.3 kg (excluding power cord)
Finish: AV light gray paint
