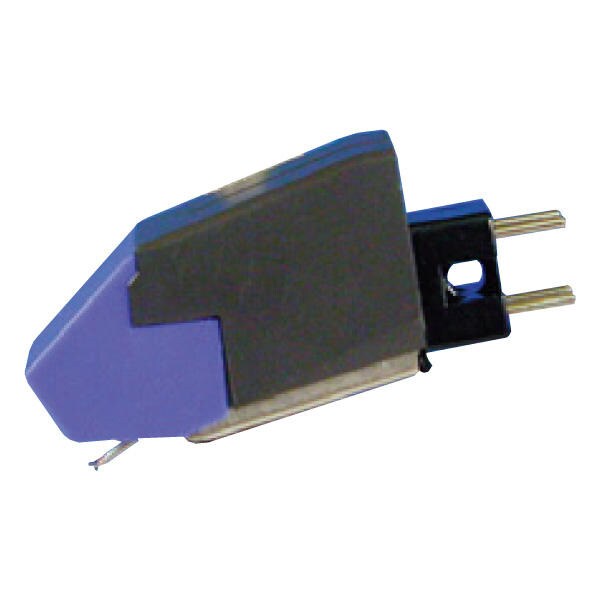

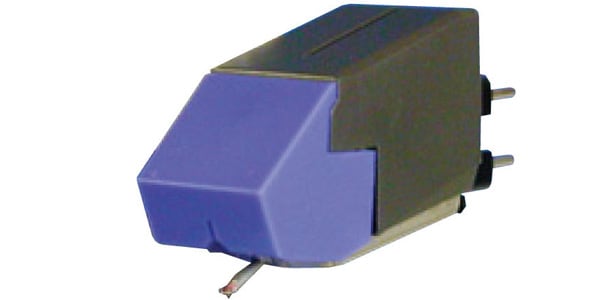

NAGAOKA / C-502M/P

This MM stereo cartridge is designed specifically for Nagaoka's plug-in type (T-4P type) amplifiers. The output voltage is 3mV and the stylus tip is a 0.6mil conical, bonded diamond.

■MM Stereo Cartridge (T-4P Type)
*Compatible only with turntables/tone arms compatible with the T-4P standard.
■Plug-in Type Cartridge
■Output Voltage: 3mV (5cm/sec)
■Frequency Response: 20Hz-20KHz
■Channel Separation: 20dB (1KHz)
■Channel Balance: Less than 2dB
■Integrated Resistance: 47KΩ
■Integrated Capacitance: 100pF
■Cantilever: Aluminum Alloy
■Stylus Tip: 0.6mil Conical, Bonded Diamond
