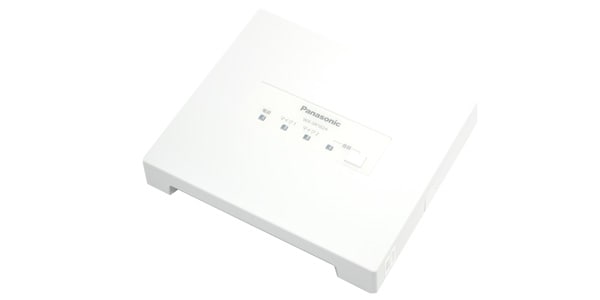

PANASONIC / WX-SR102A

A built-in antenna receiver for Panasonic wireless microphones, WX-ST100 / WX-ST300. Two microphones can be used at the same time. By switching the wireless output, you can select the usable area from five levels.

Frequency: 1895.616 MHz to 1902.528 MHz
Power supply: Voltage DC24V, Connector RJ-45, Power source Base station (WX-SP104) or Tabletop loudspeaker amplifier (WA-HA031, WA-HA061, WA-HA121), Current consumption 130 mA
Field selection: 5-step switching
Microphone reception: Number of reception channels 2
Storage environment: Storage temperature range -30 ℃ to +60 ℃
Storage humidity range: 10 % to 95 % (no condensation)
Audio output
Number of systems: When DIP switch No.1 is set to ""OFF"", 2 systems (microphone 1, microphone 2), when DIP switch No.1 is set to ""ON"", 1 system (mixing)
Type: Balanced output mono
Connector: RJ-45
Rated output: -20 dBV
Frequency response: 100Hz - 8 kHz
Volume control: Variable in 2 dB steps (range +6 dB - -16 dB)
Indicators
Power, microphone 1, microphone 2, registration
Operating temperature range: 0 ° C - 40 ° C
Dimensions: Height 160 mm x Width 185 mm x Depth 32 mm
Weight: Approximately 360 g (main unit only)
Finish: ABS resin sail white (approximate color to Munsell N9.3)
Installation: Ceiling, wall hanging
Accessories: Instruction manual, warranty card, etc. (installation supplies)
