audio technica / AT-LP7

The Audio-Technica AT-LP7 is a full-fledged player that delivers the exceptional Hi-Fi listening experience that can only be found with analog. The unit is equipped with a high-quality phono amplifier that can be switched between PHONO and LINE to suit your listening environment. The tone arm uses Audio-Technica's unique J-shaped universal tone arm, with a height adjustment mechanism that can be used with a variety of cartridges.

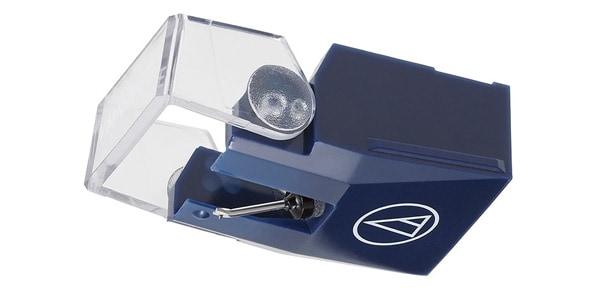

The VM520EB is a VM series cartridge that offers a lineup of seven different replacement styluses, allowing for easy upgrades simply by changing the stylus. Enjoy the difference in sound produced by analog styli.
The tonearm features a uniquely designed J-shaped universal design and is height-adjustable.
To stabilize the platter's rotation, an internal speed sensor is installed, achieving high rotational accuracy. Furthermore, the 40mm-thick MDF chassis suppresses unwanted vibrations. A high-quality phono amplifier is also built-in, allowing you to select PHONO/LINE and switch between MM (VM) and MC types to suit your cartridge.

■Equipped with the VM520EB bonded elliptical stylus VM cartridge and the AT-HS10 aluminum headshell.
- Equipped with a high-information-capacity elliptical stylus as standard, it reproduces rich, high-quality sound even with the included cartridge.
- Lightweight aluminum headshell suppresses vibration.
- Cartridge with a headshell that eliminates the need for screwing.
- Upgrades are possible with a replacement stylus.

■Our unique J-shaped universal tone arm, inheriting a design from the 1960s and 1970s.

・Height adjustment mechanism accommodates a variety of cartridges.

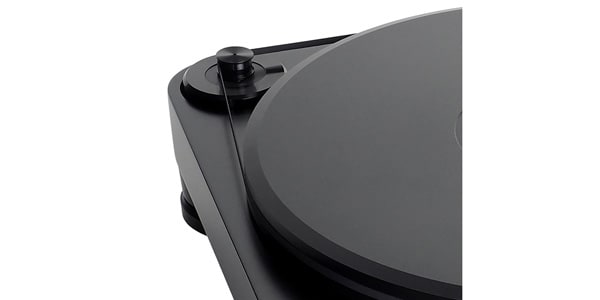

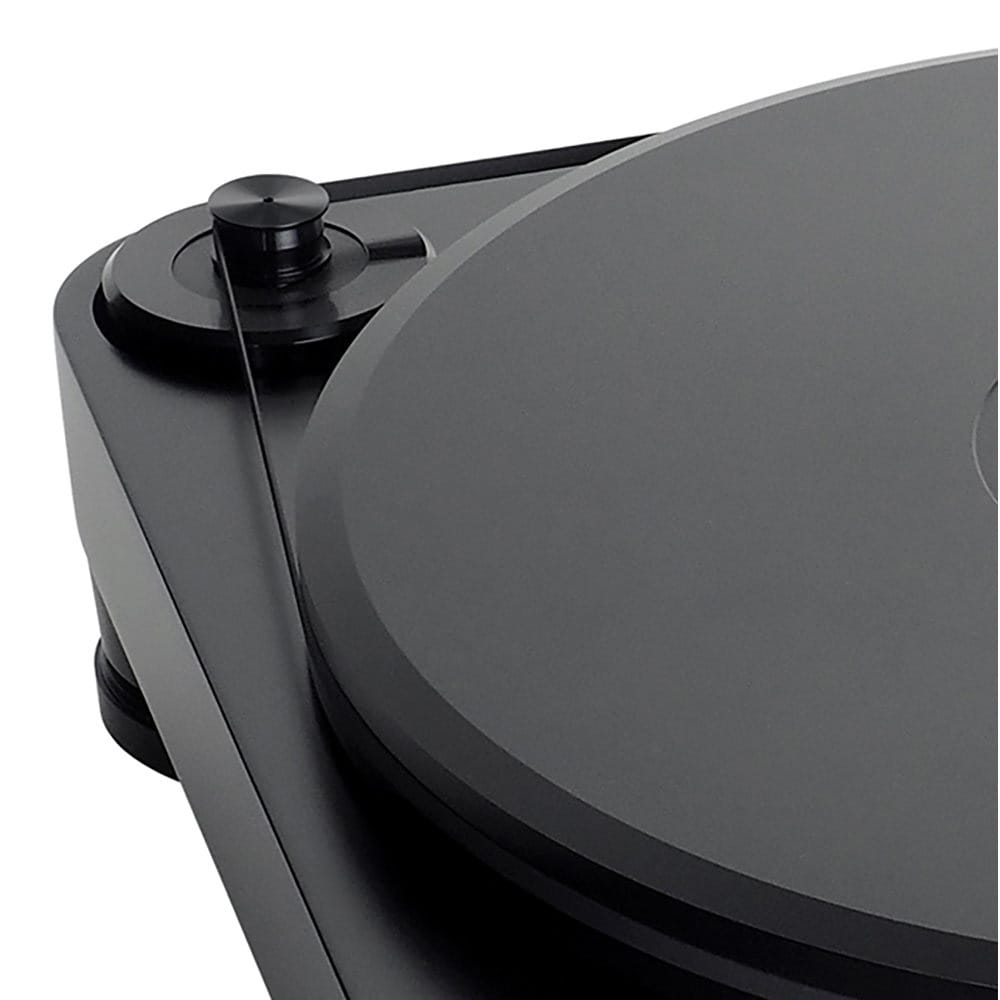

■Belt drive system with high rotational precision.

・A speed sensor detects the platter's rotation speed to maintain stable rotation.

・Switchable between 33/45 RPM.

■20mm thick machined polyoxymethylene (POM) platter.

・Polyoxymethylene (POM): An engineering plastic with excellent mechanical properties, abrasion resistance, and high rigidity.

・High mass maintains stable rotation.

・Excellent damping performance with minimal unwanted reverberation.

■Uses a 40mm thick, highly rigid MDF chassis to suppress unwanted vibrations.

・Suppresses the propagation of unwanted vibrations from motors and other sources, supporting a stable playback environment.

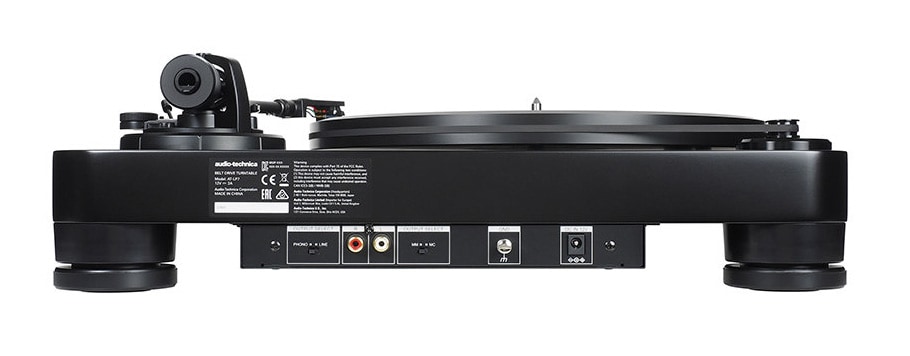

■Built-in high-quality phono amplifier.

・Selectable PHONO/LINE with the built-in phono equalizer. - Equipped with a MM (VM)/MC type cartridge selector switch.

■ Circuit design with low noise thanks to external power supply using an AC adapter.

- Transmits the music signal from the cartridge in its purest form.

■ Insulators with height adjustment mechanism.

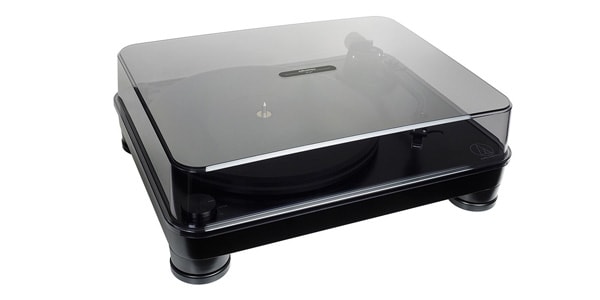

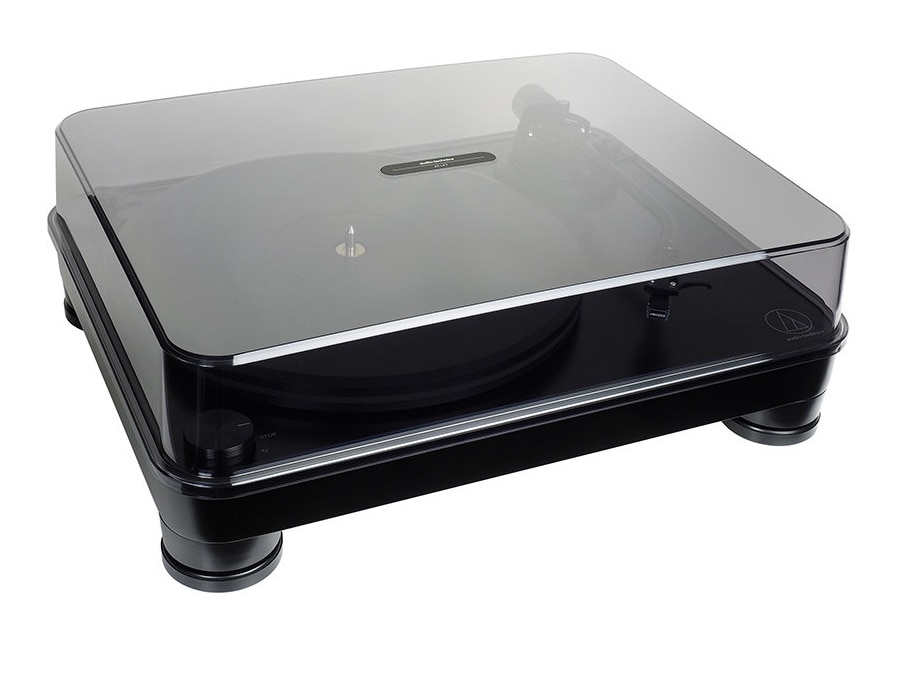

■ Detachable dust cover included.

■Accessories
- Dust cover
- Platter
- Drive belt
- Counterweight
- Headshell (AT-HS10) with VM-type stereo cartridge (VM520EB)
- EP adapter
- Audio cable (approx. 1.4 m)
- AC adapter (approx. 1.3 m)

■Weight
- Approximately 8.3 kg (excluding dust cover)
■Dimensions
- 157 (H) x 450 (W) x 352 (D) mm
■Power Supply
- Power requirements: 100-240 V, 50/60 Hz, 0.6 A Max.
- Power consumption: 5.5 W
- AC adapter 12 V, 2 A
