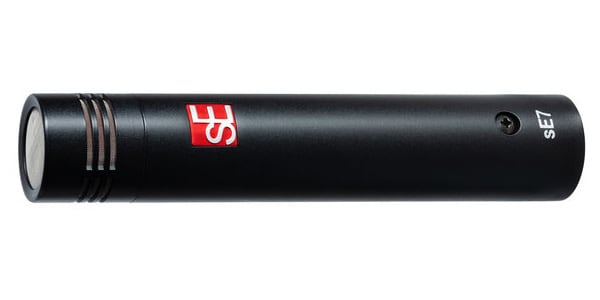

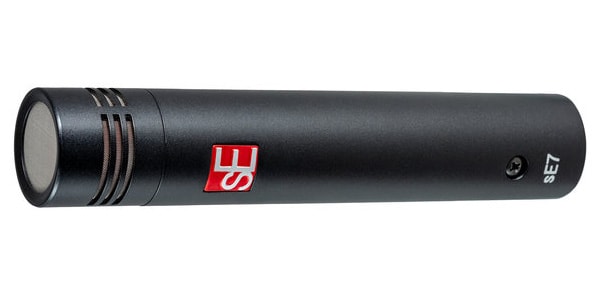

SE ELECTRONICS / sE7

The transformerless design delivers deep, clear sound. It provides a well-balanced, clear, and natural sound quality. Equipped with an attenuation pad and low-cut filter, it is also ideal for picking up instruments with high sound pressure levels such as wind instruments and snare drums. The metal chassis can withstand harsh environments, so you can use it with confidence even on live tours.

■High-Performance Capsule
The sE7's specialized capsule features an ultra-thin diaphragm that provides excellent transient response, resulting in a natural, well-balanced sound quality. Its cardioid pattern is also ideal for many sources in studio and stage applications.

■Quietest pencil microphone in its class
The sE7 features an extremely short signal path and advanced electronic design, making it the quietest microphone in its class. The transformerless design provides excellent clarity and depth without compromising the original sound quality of the source.

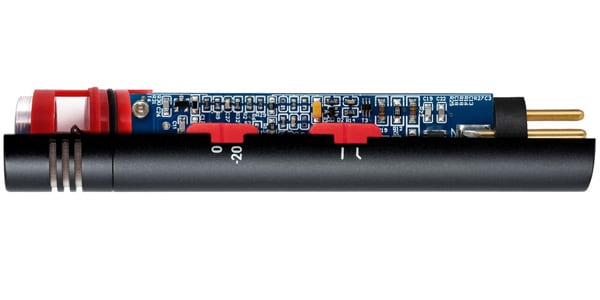

■Attenuation Pad

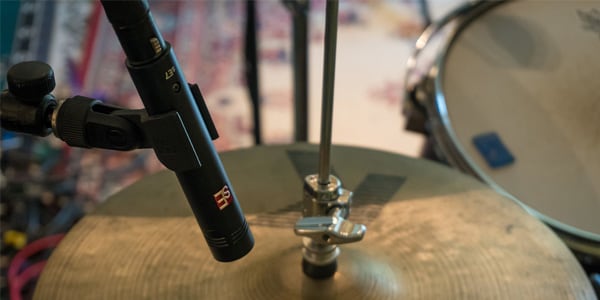

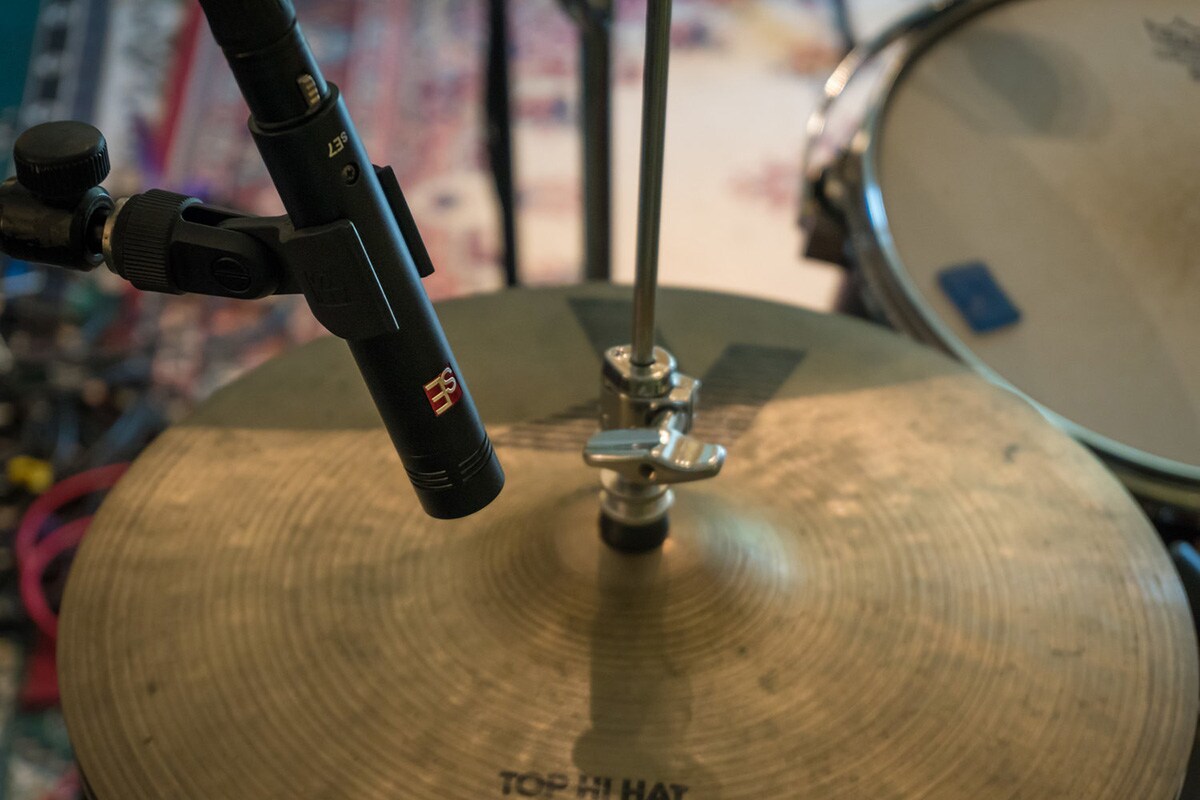

The sE7 features a -20dB attenuation pad switch. This prevents overloading the preamp or mixer, extends the dynamic range, and enables closed-mic techniques in a wide range of applications, such as wind instruments and snare drums.

■Low-Cut Filter
The 80Hz low-cut filter helps balance excessive proximity effect when close-micing by reducing low-frequency rumble and unwanted foot noise.

■Metal enclosure and premium finish
The sE7's metal chassis effectively suppresses electrical interference and noise. It also provides a high-quality finish and gold-plated XLR connectors for reliable signal connection. A custom microphone clip is also included, making it easy to mount to a microphone stand.

Product Specifications: Directivity: Cardioid Frequency response: 20Hz - 20kHz Sensitivity: 19mV/Pa (-34.5dBV) Maximum allowable sound pressure level (SPL): 136/156dBSPL (0/20dB pad) Self-noise: 16dB (A) Dynamic range: 120/140dB (0/20dB pad) Signal-to-noise ratio: 78dB Low-cut filter: 80Hz, 6dB/Oct (switchable) Pad: 20dB (switchable) Power supply: Phantom power 48V (IEC 61938 compliant) Impedance: 200Ω or less Recommended load impedance: 1kΩ or more Current consumption: 3.0mA Connector: XLR 3-pin
■External dimensions: 23 mm (diameter) x 120 mm (length)
■Weight: 128 g
■Accessories
■sE7: Microphone clip (with conversion screw), windscreen
■sE7 Pair: Microphone clip (with conversion screw) x 2, windscreen x 2
