STAX / SRMD10

The SRM-D10 is the first STAX driver unit to support USB digital input, enabling playback of high-resolution sound sources up to PCM384kHz and DSD5.6MHz. It also supports regular analog line input, allowing you to enjoy a wide range of audio sources with high-quality sound in any location.

■Built-in rechargeable lithium-ion battery
■Uses an aluminum case with a shielding effect, with a focus on texture.
■Supports playback of PCM up to 384kHz and DSD up to 5.6MHz (DoP method) via the XMOS USB interface.
■High performance thanks to a high-voltage, high-performance amplifier.
■Carefully selected parts dedicated to high-quality audio.
■Uses a 5-pin PRO bias outlet, allowing the use of Stax ear speakers (5-pin).
■Includes a wide-range switching power adapter.

■Frequency response: 20-40,000Hz / +0,-3dB
■Rated input level: 230mV / 100V output
■Maximum input level: 10V / analog input volume at minimum
■Maximum output voltage: 200Vrms
■Amplification: 53dB (450x)
■Harmonic distortion: 0.025% / 1kHz-10kHz
■Input impedance: 10kΩ / analog input
■Bias voltage: DC580V
■Power supply voltage: DC14V
■Battery operating time: Analog playback approx. 4.5 hours, digital playback approx. 3.5 hours
■Power consumption: 6.4W / USB input, 5W / analog input
■Operating ambient temperature/humidity: 0-35 / 90% or less (but no condensation)
■External dimensions: 75W x 32H x 141Dmm
■Weight: 450g (main unit)

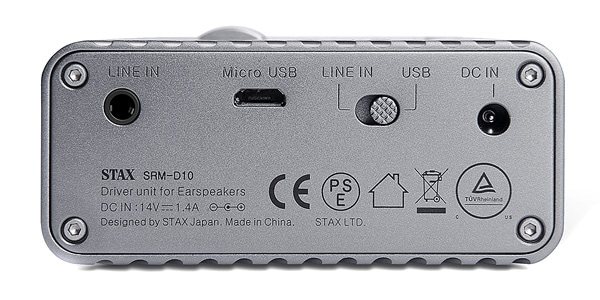

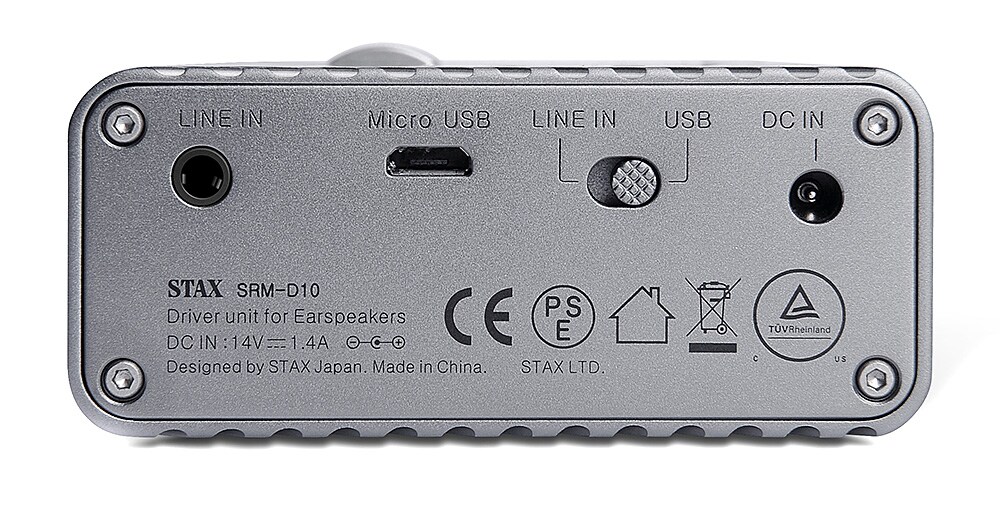

■Input terminals: Micro USB x 1, φ3.5mm stereo mini jack x 1
■Country of manufacture: China
