Lexicon / Alpha

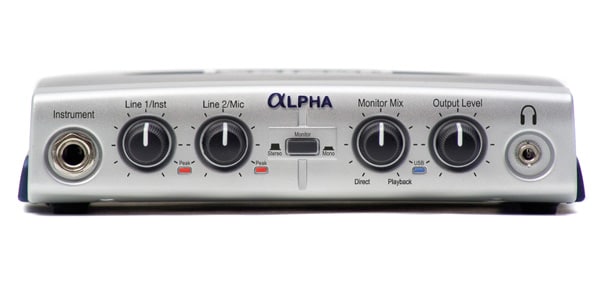

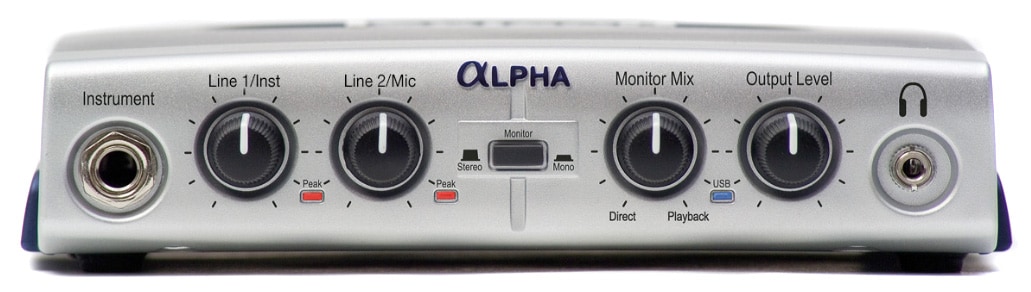

A 24-bit audio interface that can be easily carried. It has high impedance instrument input and headphone output. 2 buses and 2 outputs of USB I / O are useful for mix down on DAW.

■ USB bus power supply
■ 2 I/O
■ Sampling rate: 16, 24-bit / 44.1, 48kHz
■ Direct monitor: Yes
■ Input level adjustment knob & peak lamp
■ Mono / stereo monitoring switch
CUBASE LE, MPX-i Reverb Plug-In included
* Download the installer

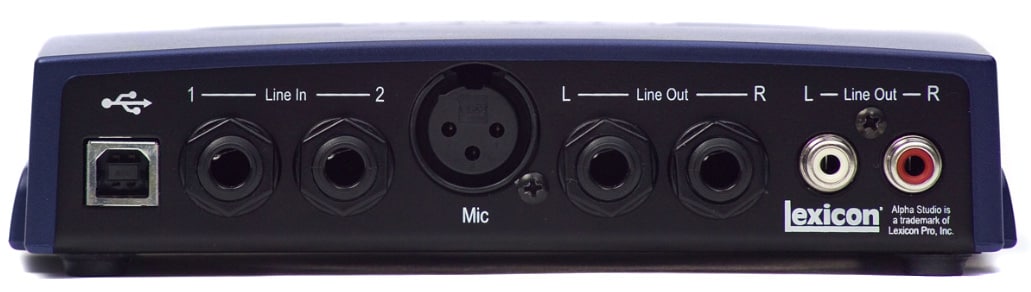

input
2 x TRS line inputs (one XLR mic input (for dynamic mic only), another Hi-Z input shared)
No phantom power

2 x TRS & RCA line outputs
Stereo mini headphone output


■ Outside dimensions D17.2 x W16.6 x H4.1cm
■ Weight 0.6kg
* Not compatible with Mac OS X and El Capitan.

Cubase LE operating environment:

(Windows)
Windows 7 (64-bit), Windows 8.1 (64-bit), Windows 10 (64-bit)

(Mac)
macOS Sierra (10.12), macOS High Sierra (10.13), macOS Mojave (10.14), (64-bit)
CPU minimum specification: 64-bit Intel or AMD multi-core
CPU recommended specifications: Intel i5 or higher
Minimum RAM: 4 GB
Recommended RAM: 8 GB
Hard disk free space: 20 GB
Display minimum resolution: 1440 x 900
Recommended display resolution: 1920 x 1080
Graphics: Graphics card with DirectX 10 and WDDM 1.1 support (Windows only)
Internet connection required
installer download, license activation, account sign up and product registration
Notes: 32-bit plug-in is not supported
