ObsidianWire / CSC60LP

Even when you roll back the volume, the high frequencies are maintained, keeping the overall tone clear. The tone control does not affect the volume, allowing for intuitive operation.

■Circuit for electric guitar
■For 60s Les Paul

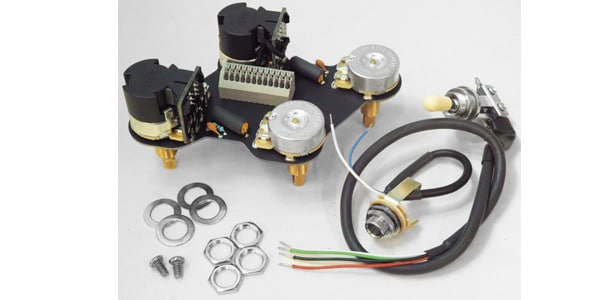

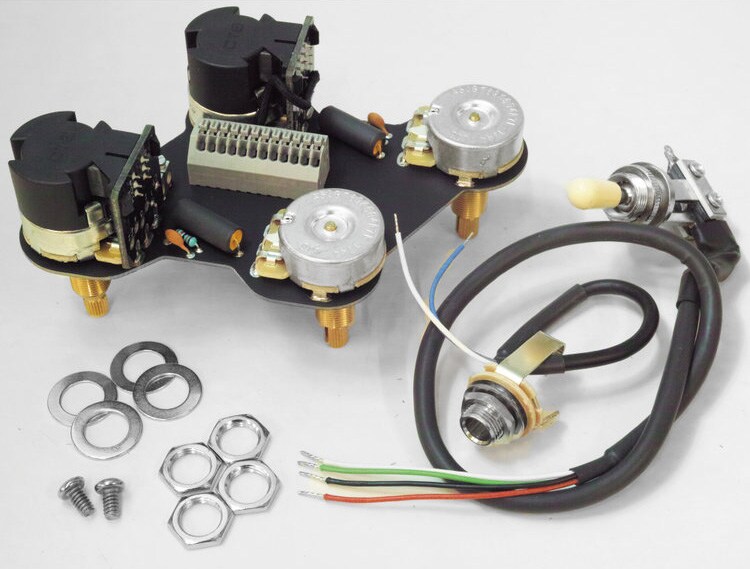

■Components and accessories
・2 x ObsidianWire Select 500k (±6%) CTS pots (matched to ±2%), long shaft (also suitable for short shaft guitars with included extra nut)
・2 x ObsidianWire Select 500k (±6%) CTS pots (matched to ±2%), split shaft, push/pull switch
・1 x Switchcraft short toggle switch
・1 x Switchcraft J11 mono output jack
・1 x ObsidianWire Select 0.022μF 150 series polyester film capacitors (hand-selected to be ±10%)

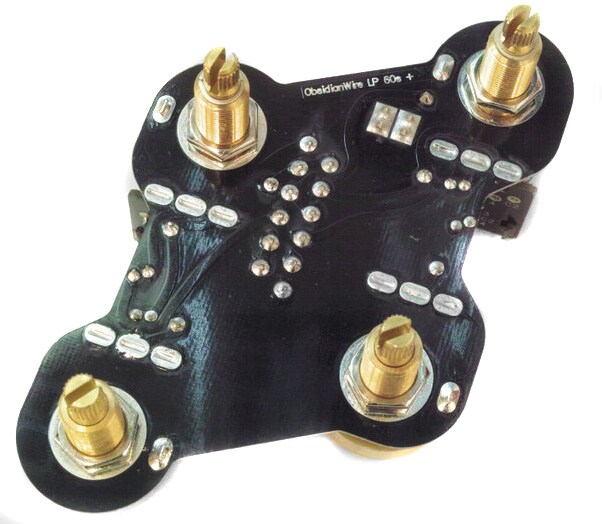

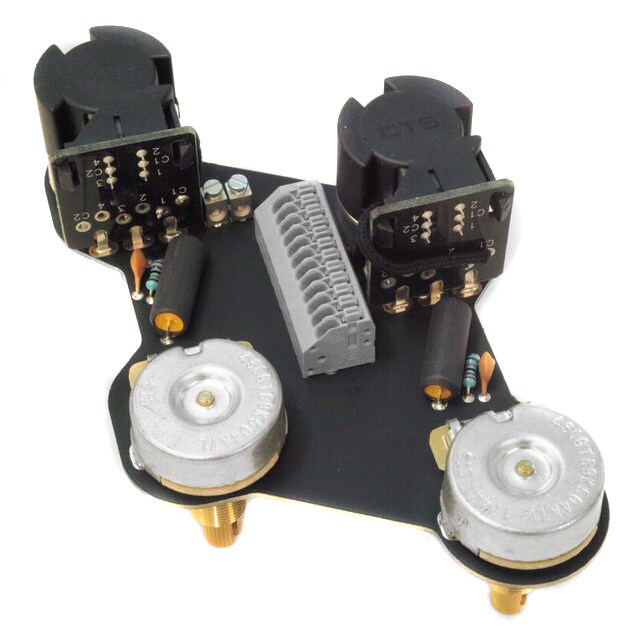

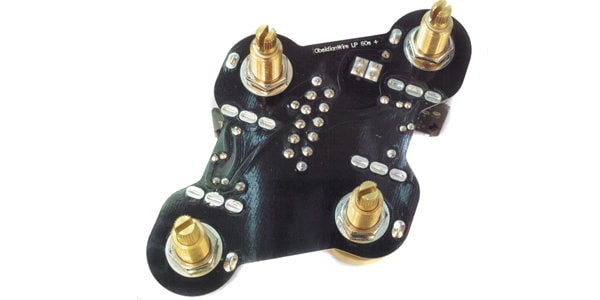

・1 x printed circuit board (components already installed)

■ PU selector when both switches are down (traditional Les Paul)
1. Bridge humbucker
2. Mix of bridge humbucker and neck humbucker
3. Neck humbucker

■ PU selector when both switches are up
1. Bridge single coil
2. Mix of bridge single coil and neck single coil
3. Neck single coil

■ Neck volume PU selector when only the bridge volume switch is up
1. Bridge humbucker
2. Mix of bridge humbucker and neck single coil
3. Neck single coil

■ PU selector when only the bridge volume switch is up
1. Bridge single coil
2. Mix of bridge single coil and neck humbucker
3. Neck humbucker

■ Compatible models: Gibson Les Paul made in the USA
* If you use it with an Epiphone model, you need to widen the body hole for US spec and fit the 24 spline knob.

* We do not check the compatibility of parts or guarantee installation. Thank you for your understanding.
