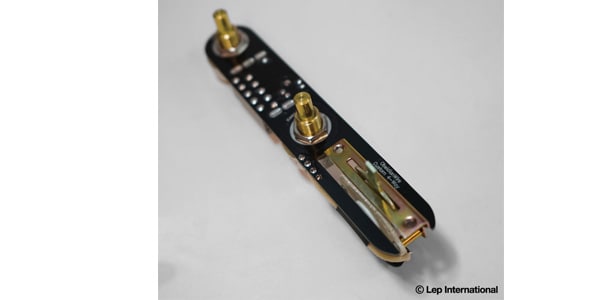

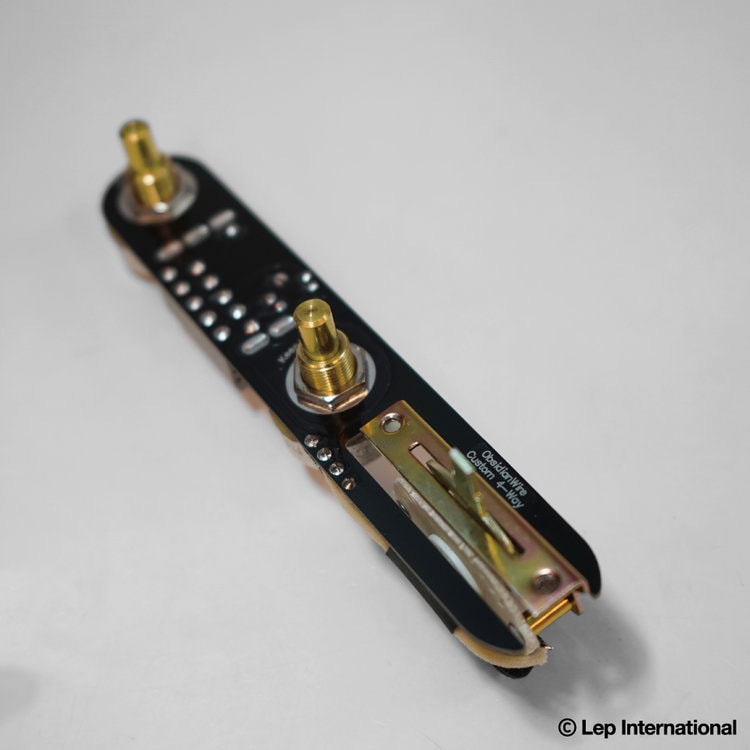

ObsidianWire / C4WAYTELE500K0022

Variations

A high-quality wiring kit for standard Telecasters. Using high-quality parts and easy installation, you can get authentic vintage tones. You can create new tones with the 4th switch position while keeping the traditional Telecaster tone.

■ Circuit for electric guitar
■ For Telecaster

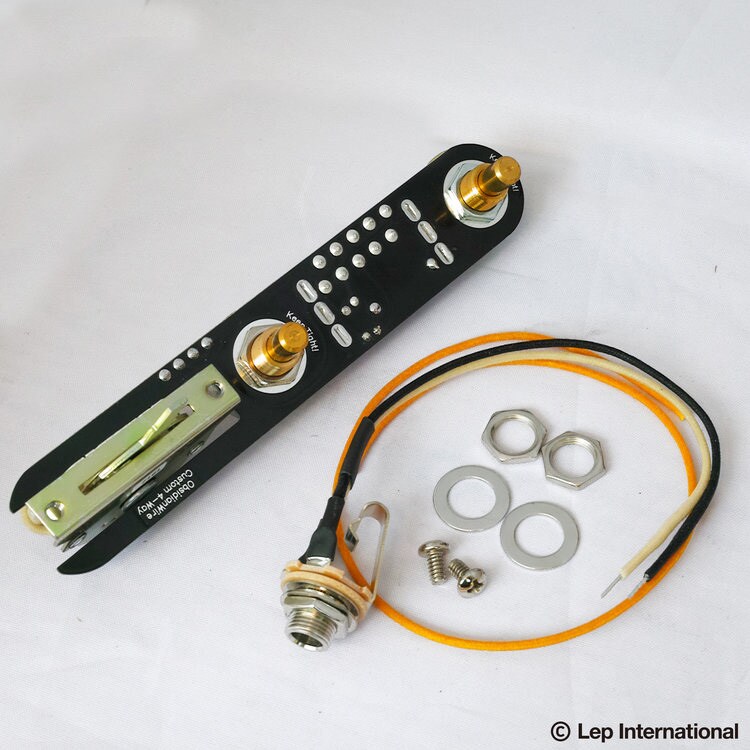

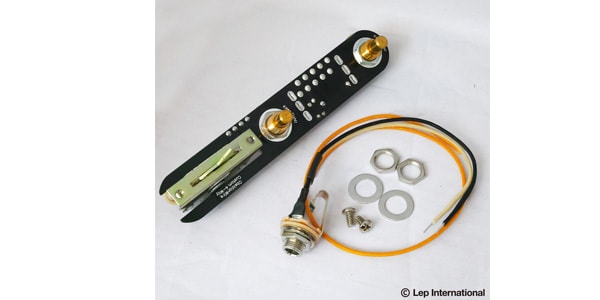

■ Components and accessories
・2 x ObsidianWire Select 500k (±6%) CTS pots (matched to ±2%), solid shaft (1/4 inch shaft)
・1 x Oak Grigsby 4-way switch
・1 x Switchcraft J11 mono output jack
・1 x ObsidianWire Select 0.022μF 150 series polyester film capacitor (hand selected to be ±10%)
・1 x ObsidianWire Custom Spec Treble Bleed Mod

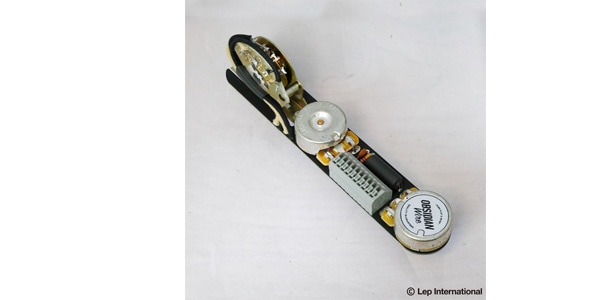

・1 x Printed circuit board (components already installed)

■4-way switch position
1. Neck + bridge pickup (series)
2. Neck pickup
3. Neck and bridge mix
4. Bridge pickup

■Compatible models: USA, MEX Telecaster
*As it uses inch-sized pots, for Japanese models, you will need to prepare a control plate made by Fender USA.

*We do not check the compatibility of parts or guarantee their installation. Thank you for your understanding.
