ObsidianWire / C4WAYTELE250K0047

A high-quality wiring kit for standard Telecasters. Using high-quality parts and easy installation, you can get authentic vintage tones. Even when you lower the volume, only the low frequencies pass through the pot, and the high frequency signal line is separated to reduce muddy sound.

Electric guitar circuit, Telecaster wiring

■Electric guitar circuit
■For Telecaster

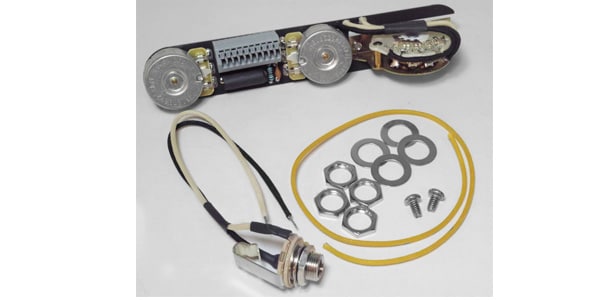

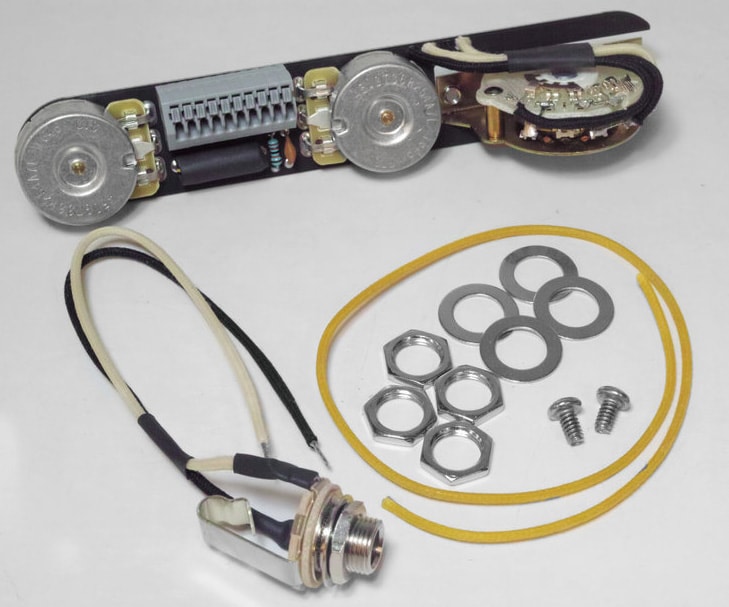

■Components and accessories
・2×ObsidianWire Select 250k (±6%) CTS pots (matched to ±2%), solid shaft (1/4 inch shaft)
・1×Oak Grigsby 4-way switch
・1×Switchcraft J11 mono output jack
・1×ObsidianWire Select 0.047μF 150 series polyester film capacitor (hand selected to be ±10%)
・1×ObsidianWire Custom Spec Treble Bleed Mod

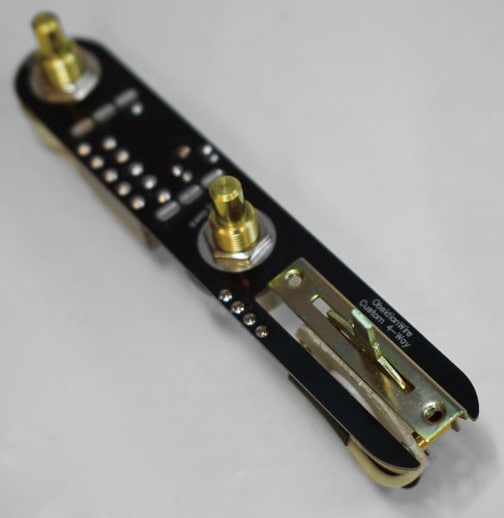

・1 x Printed circuit board (components already installed)

■4-way switch position
1. Neck + bridge pickup (series)
2. Neck pickup
3. Neck and bridge mix
4. Bridge pickup

■Compatible models: USA, MEX Telecaster
*As it uses inch-sized pots, for Japanese models, you will need to prepare a control plate made by Fender USA.

*We do not check the compatibility of parts or guarantee their installation. Thank you for your understanding.
