ObsidianWire / TVTELE500K0022

A high-quality wiring kit for standard Telecasters. Using high-quality parts and easy installation, you can get authentic vintage tones. Even when you lower the volume, only the low frequencies pass through the pot, and the high frequency signal line is separated to reduce muddy sound.

■ Circuit for electric guitar
■ For Telecaster

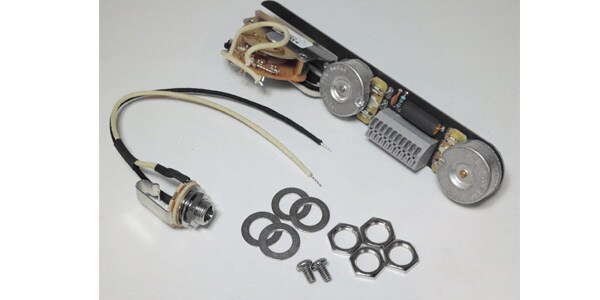

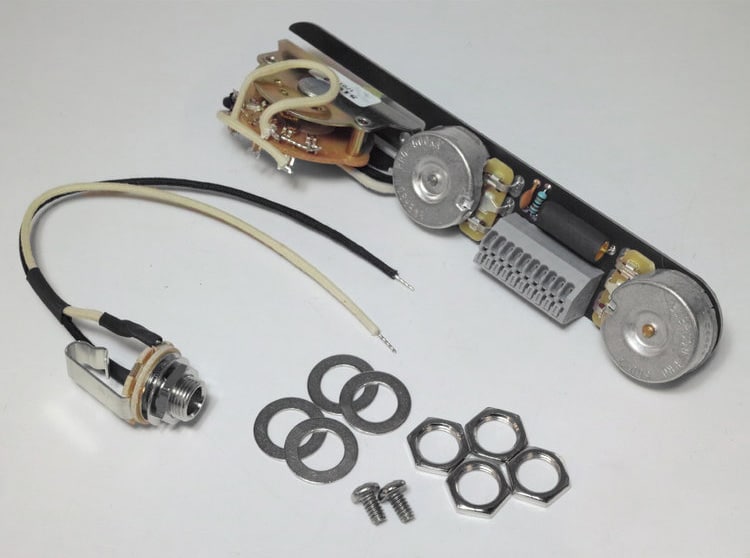

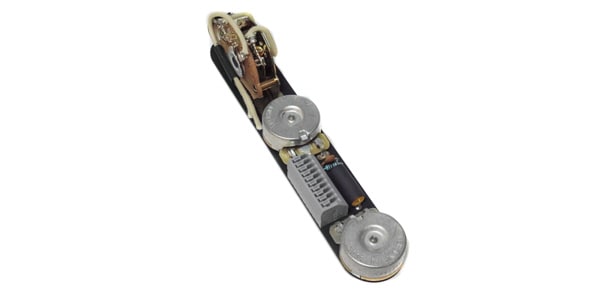

■ Components and accessories
・2 x ObsidianWire Select 500k (±6%) CTS pots (matched at ±2%), solid shaft (1/4 inch shaft)
・1 x Oak Grigsby 3-way switch
・1 x Switchcraft J11 mono output jack
・1 x ObsidianWire Select 0.022μF 150 series polyester film capacitor (hand-selected to be ±10%)
・1 x ObsidianWire Custom Spec Treble Bleed Mod

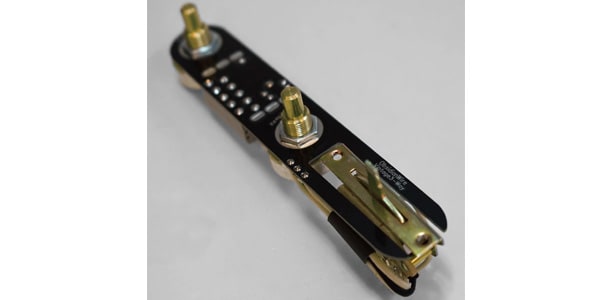

・1 x printed circuit board (components already installed)

■ Compatible models: USA, MEX Telecaster
* Since inch-sized pots are used, for Japanese models, you will need to prepare a control plate made by Fender USA.

* We do not check the compatibility of parts or guarantee their installation. Thank you for your understanding.
