ROLAND / JUNO-DS76 定番シンセ 数量限定純正ソフトケース付

The 76-key model of the JUNO-DS series synonymous with the synthesizer entry model. A lightweight body is good for keyboardists who often travel for shows and rehearsals, battery-powered operation realizes street performances, a mic connection terminal and vocal effects are great for playing and singing, equipped with a rich functions such as step sequencer, vocoder etc., despite an entry model!

■ Outline
・76-key synthesizer keyboard
・Ultra lightweight 6.9 kg
・Compatible with batteries
・Equipped with 8 pads
・Vocoder compatible
・There is a tone color selection button for each category of musical instrument, and tone color selection is speedy.
・Supports dual (layer) and split, equipped with dedicated buttons.
The volume balance of dual tones can be adjusted with a slider.
・Equipped with cutoff and resonance knobs, it is a PCM sound source,
Possible to operate resonance sweep sound.
・Expression pedal compatible
ㆍAudio data such as MP3 in USB can be assigned to the pad.
Equipped with an 8-track pattern sequencer.
ㆍSupports microphone input, which is convenient for singing on the keyboard.
Includes various vocal effects.
ㆍEquipped with USB MIDI/AUDIO interface function.
Recording from a microphone connected to JUNO-DS to a PC,
AUDIO signal from PC can be output from JUNO-DS audio out.
ㆍEquipped with MIDI controller mode. Can be used as is for DTM production.
DAW control buttons can be switched with one touch.


■ Specifications
[Keyboard part]
・Number of keyboards: 76 keys
・Keyboard type: Semi-weighted
・Velocity: ○
・Aftertouch: -

[Sound source part]
・Sound source method: PCM sound source (GM2 compatible)
・Maximum polyphony: 128
・Number of parts: 16
・Number of patches: 1200 or more
・Drum kit: 30 types or more
・Performance: 64 (including GM2 tone)
[User Memory]
・ Patch: 256
・ Drum kit: 8
・ Performance: 128
・ Favorites: 100
*New sounds can be imported from the JUNO dedicated sound source site Axial.
*Wave expansion slot: 1 (rewritable)
*Sample import support: WAV (44.1kHz, 16-bit)

[Effect]
・Multi-effects: 3 systems, 80 types
・Chorus: 3 types
・Reverb: 5 types for keyboard/8 types for microphone

[Other functions]
・Audio player: ○ (WAV, AIFF, MP3)
・Arpeggiator: 128 species
・Rhythm pattern: 30 types x 8 groups

[Control part]
・Pitch bend
・Modulation lever
・Control knob x4
・LEVEL slider x4
・Multi-color pad x8

[Display]
・Screen: LCD
・Resolution: 256 x 80

[Input/output]
・Headphone terminal: ○ (stereo standard)
・Output terminal: OUTPUT L/MONO-R (mono standard)
・Input terminal: MIC INPUT (mono standard), EXT INPUT (stereo mini)
・Sustain/Pedal terminal: ○ (PEDAL HOD, PEDAL CONTROL)
・MIDI terminal: ○ (IN, OUT)

[External connection]
・USB: ○ 2.0 MIDI, AUDIO (USB COMPUTER terminal)
・Bluetooth: ×
・External memory: ○ (USB MEMORY terminal, Hi-Speed ​​flash memory compatible)


[Power supply]
・Power adapter: DC9V DC IN
・Battery drive: ○ (Rechargeable Ni-MH battery AA x 8)
*Approximately 5 hours drive during continuous use.
*Batteries are sold separately.
*Manganese batteries and alkaline batteries cannot be used.
・Current consumption: 600mA
(Rechargeable NiMH with a capacity of 1,900mAh
When using batteries. It depends on the usage condition.
You Approximately 4 hours when connected to a USB memory. )

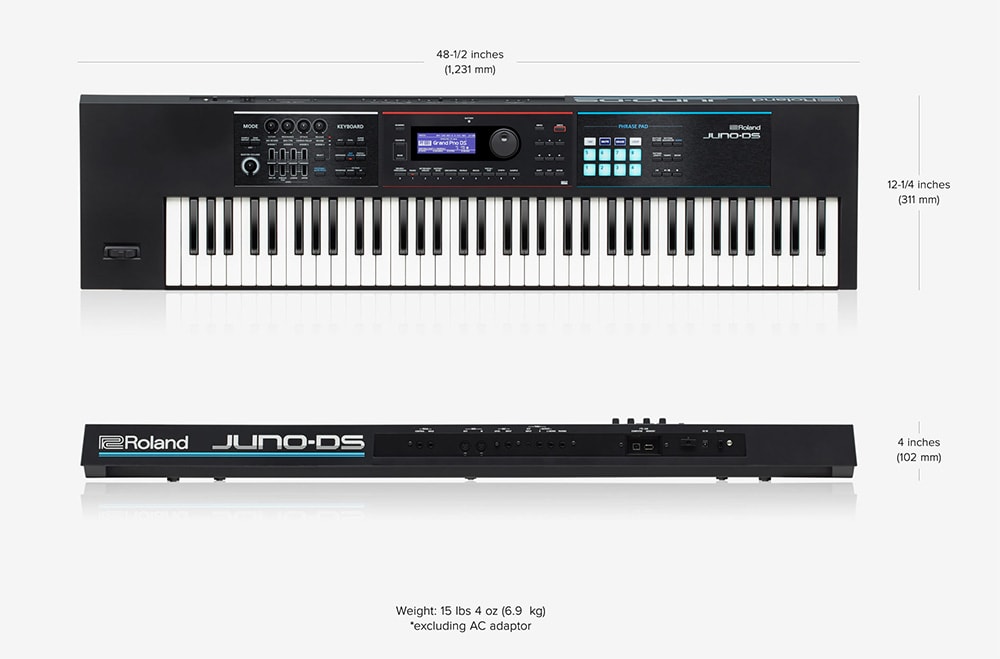

[Body]
・Width: 123.1 cm
・Height: 10.2 cm
・Depth: 31.1 cm
・Weight: 6.9kg


[accessories]
・AC adapter
・Ferrite core (including mounting band)
