SENNHEISER / 509600

A set of two items: SENNHEISER receiver EK 500 G4 and transmitter SKP 500 G4. B-type 30ch can be selected. Up to eight units can be used simultaneously. Equipped with a receiver headphone monitoring terminal. Up to eight hours of operation with two AA alkaline batteries.

◆Portable boom set

A two-piece set consisting of a plug-on (sender) and a belt pack (receiver).

■Features

- Professional model that does not compromise on functionality or sound quality
- Portable receiver
- B-type 30ch can be selected
- Up to 8 units can be used simultaneously
- Easy setup between transmitter and receiver with infrared sync
- Equipped with scan function to avoid radio interference
- Equipped with receiver headphone monitoring terminal
- Supports AF balanced output
- Up to 8 hours of operation with 2 AA alkaline batteries
- Camera shoe mount adapter included
- Plug-on transmitter that can supply 48V power included

■Package contents:
EK 500 receiver x 1
SKP 500 transmitter x 1
POP1 pouch x 1
CA 2 camera adapter x 1
CL 1 3.5 mm jack cable x 1
CL 500 XLR conversion cable x 1
4 dry batteries

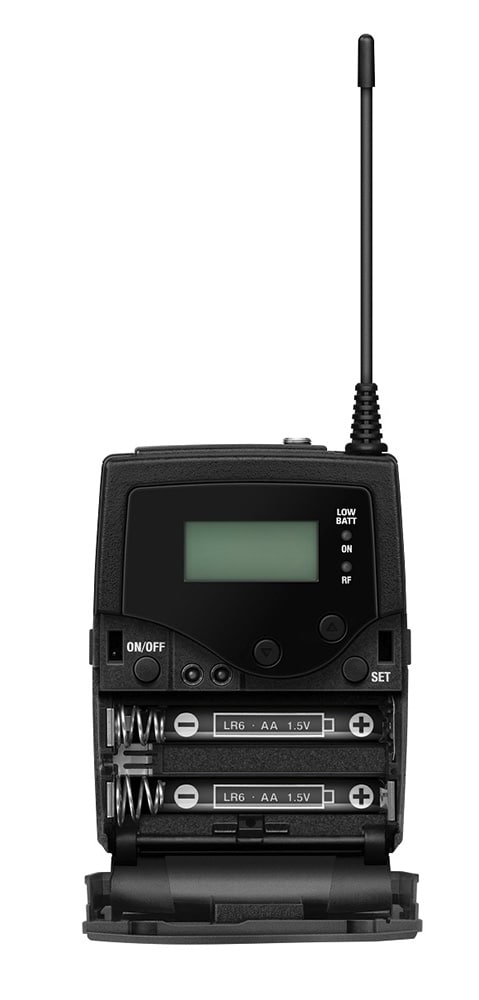

●Receiver EK 500 G4
Model number: EK 500 G4
Modulation: Wideband FM
Frequency range: 806.125-809.750 MHz
Receiving frequencies: 30 frequencies, switched at 125kHz intervals
Receiving method: Adaptive diversity
Intermodulation attenuation: 65 dB or more
Blocking: 70 dB or more
Compander: Sennheiser HDX
Squelch: Low: 5 dBV, Middle: 15 dBμV, High: 25 dBμV
Pilot tone squelch: Switchable on/off
Antenna input: -
AF output level (peak deviation, 1kHz): 3.5 mm jack: +11 dBu
AF output adjustment range: 42 dB (adjustable in 6 dB steps)
Signal-to-noise ratio (1mV, peak deviation): Line: 115 dBA or more / Phones: approx. 90 dBA
Power supply: 2 alkaline batteries or BA 2015 rechargeable battery
Current consumption: 140 mA
Dimensions: Approx. 82 x 64 x 24 mm
Weight: Approx. 130 g

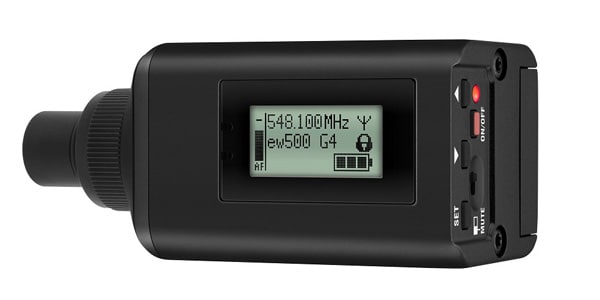

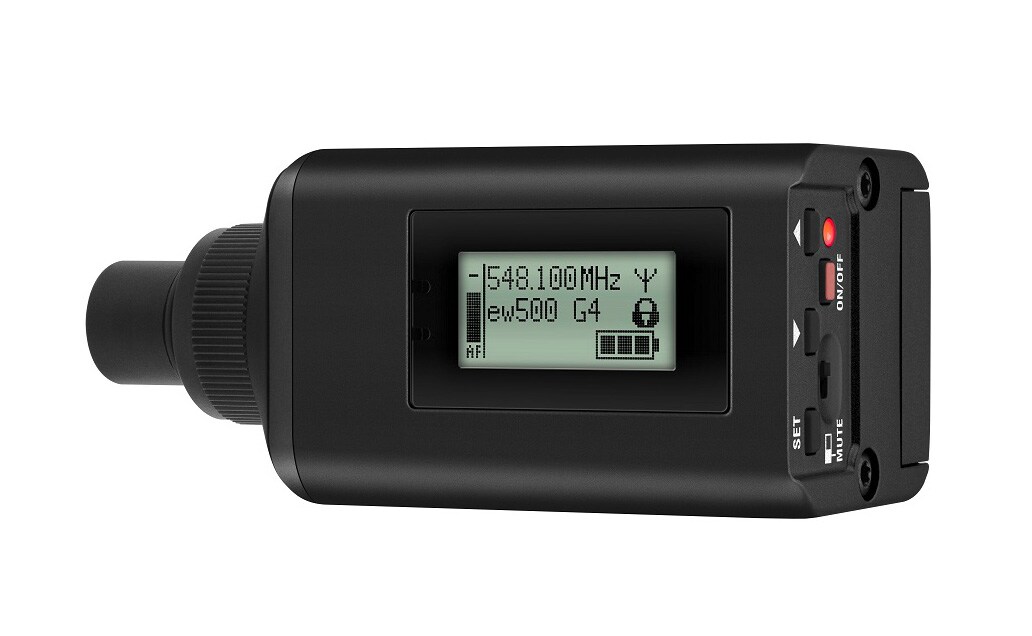

●Transmitter SKP 500 G4
Model number: SKP 500 G4
Frequency range: 806.125-809.750 MHz
Transmitting frequency: 30 frequencies, switched at 125 kHz intervals
RF output: 10 mW
Compander: Sennheiser HDX
Mute switch: AF/RF mute, disabled, switchable
Pilot tone squelch: switchable on/off
Input connector: XLR -3F
Input sensitivity adjustment range: 48 dB (adjustable in 3 dB steps)
Signal-to-noise ratio (1 mV, peak deviation): 115 dBA or more
48V phantom power supply: Supported
Power supply: 2 1.5 V AA alkaline batteries or BA 2015 rechargeable battery
Operating time: 8 hours (48V off)
Dimensions: Approx. 105 x 43 x 43 mm
Weight (including battery): Approx. 195 g
