SENNHEISER / 509582

A portable lavalier set with SENNHEISER receiver EK 500 G4, transmitter SKP 500 G4, and lavalier microphone MKE 2-ew. Up to eight units can be used simultaneously. Equipped with a receiver headphone monitoring terminal. Runs for up to eight hours on two AA alkaline batteries. Includes a camera shoe mount adapter.

◆Portable lavalier set
A set of professional lavalier microphone MKE2 and belt pack (transmitting and receiving).

■Features
- Professional model that does not compromise on functionality or sound quality
- Portable receiver
- B-type 30ch can be selected
- Up to 8 units can be used simultaneously
- Easy setup with infrared sync between transmitter and receiver
- Equipped with scan function to avoid radio interference
- Equipped with receiver headphone monitoring terminal
- Supports AF balanced output
- Up to 8 hours of operation with 2 AA alkaline batteries
- Camera shoe mount adapter included
- Professional standard MKE 2 omnidirectional lavalier microphone included

■Package contents:
EK 500 receiver x 1
SK 500 transmitter x 1
MKE 2 lavalier microphone x 1
Wind jammer x 1
CA 2 camera adapter x 1
CL 1 3.5 mm jack cable x 1
CL 500 XLR conversion cable x 1
4 dry batteries

●Receiver EK 500 G4

Model number: EK 500 G4
Modulation: Wideband FM
Frequency range: 806.125-809.750 MHz
Receiving frequencies: 30 frequencies, switched at 125kHz intervals
Receiving method: Adaptive diversity
Intermodulation attenuation: 65 dB or more
Blocking: 70 dB or more
Compander: Sennheiser HDX
Squelch: Low: 5 dBV, Middle: 15 dBμV, High: 25 dBμV
Pilot tone squelch: Switchable on/off
Antenna input: -
AF output level (peak deviation, 1kHz): 3.5 mm jack: +11 dBu
AF output adjustment range: 42 dB (adjustable in 6 dB steps)
Signal-to-noise ratio (1mV, peak deviation): Line: 115 dBA or more / Phones: approx. 90 dBA
Power supply: 2 alkaline batteries or BA 2015 rechargeable battery
Current consumption: 140 mA
Dimensions: approx. 82 x 64 x 24 mm
Weight: approx. 130 g

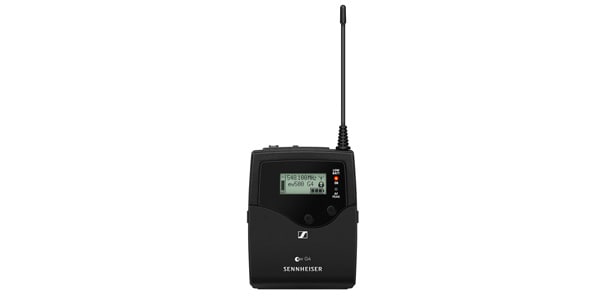

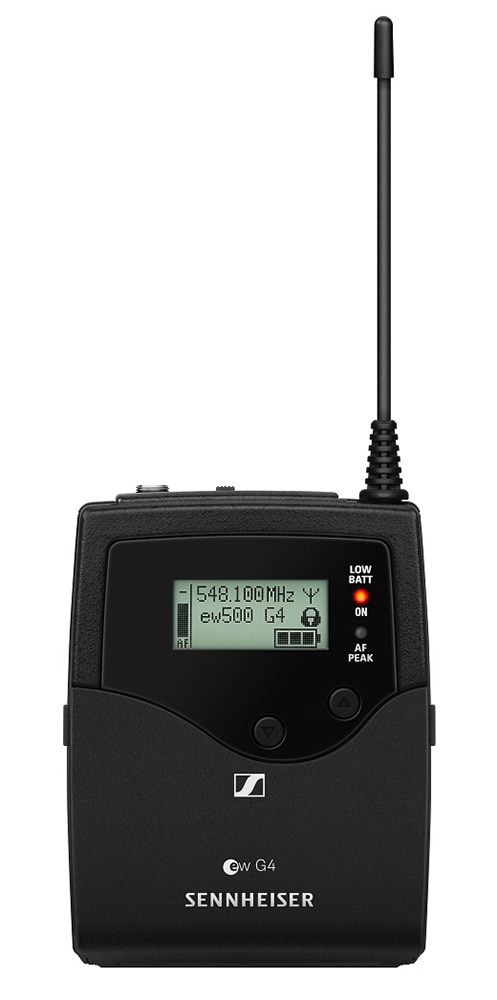

●Transmitter SK 500 G4
Model number: SK 500 G4
Frequency range: 806.125-809.750 MHz
Transmitting frequency: 30 frequencies, switched at 125 kHz intervals
RF output: 10 mW
Compander: Sennheiser HDX
Mute switch: AF/RF mute, disabled, switchable
Remote switch (RMS1) connection: -
Pilot tone squelch: switchable on/off
Input connector: 3.5 mm jack
Input sensitivity adjustment range: 60 dB (adjustable in 3 dB steps)
Signal-to-noise ratio (1 mV, peak deviation): 115 dBA or more

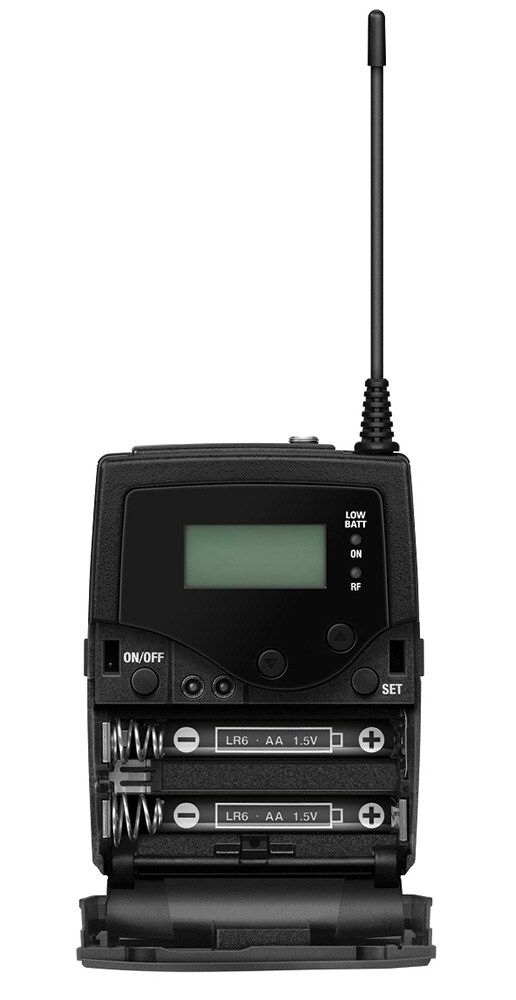

Power supply: 2 1.5 V AA alkaline batteries or BA 2015 rechargeable battery
Operating time: 8 hours (normal)
Dimensions: approx. 82 x 64 x 24 mm
Weight (including battery): approx. 160 g

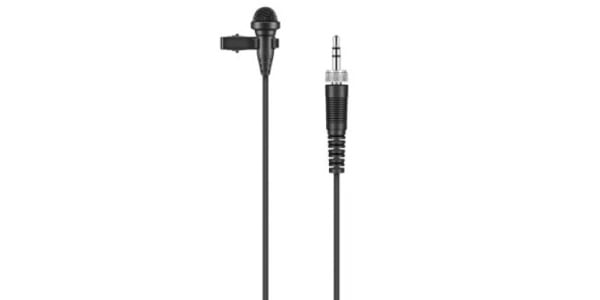

●Lavalier microphone MKE 2-ew
Model number: MKE 2-ew
Transducer principle: prepolarized condenser
Pickup pattern: omnidirectional
Sensitivity: 5 mV/Pa, ± 3 dB
Sound pressure level: 142 dB SPL
Frequency response: 20 - 20,000Hz ± 3 dB
Equivalent noise level: 26 dB A-weighted (DIN IEC 651)
39 dB CCIR-weighted (CCIR468-1)
Connector: 3.5 mm jack
Cable length: approx. 1.6 m
