SENNHEISER / 508052

A base combo set of SENNHEISER handheld, rack, and belt pack. Uses a half-rack size receiver with selectable B-type 30ch. Ideal for meetings, classes, and speeches. Up to 8 units can be used simultaneously. Equipped with a scan function to avoid radio interference. Head sold separately.

◆ Base Set Combo (SK, SKM)

Three-piece set consisting of handheld (sender), rack (receiver), and belt pack (receiver). Head sold separately.

■Features
- For meetings, classes, and speeches. Speech model for facilities

- Professional model that does not compromise on functionality or sound quality

- Half-rack size receiver with B-type 30ch selectable

- Up to 8 units can be used simultaneously

- Easy setup with infrared sync between transmitter and receiver

- Equipped with scan function to avoid radio interference

- Receiver OLED display shows detailed status such as remaining battery level of transmitter

- Equipped with receiver headphone monitoring terminal

- Consolidated monitoring and control of multiple systems with Control Cockpit software

- Handheld transmitter with hand switch

- Lightweight and robust metal housing

- Up to 8 hours of operation with 2 AA alkaline batteries

- Compatible with separately sold BA 2015 rechargeable batteries

■ Package contents

EM 300-500 receiver x 1

AC adapter (NT 2-3) x 1

Rod antenna x 2

GA 3 rack mount kit x 1

Dry battery x 2

SKM 300-S transmitter x 1

SK 1 x 300-RC transmitter
*Microphone capsule and microphone sold separately

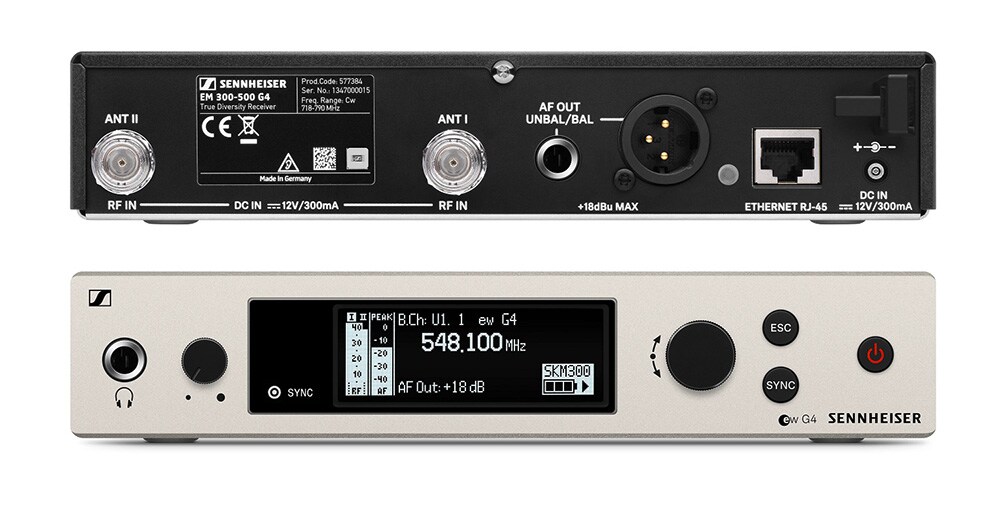

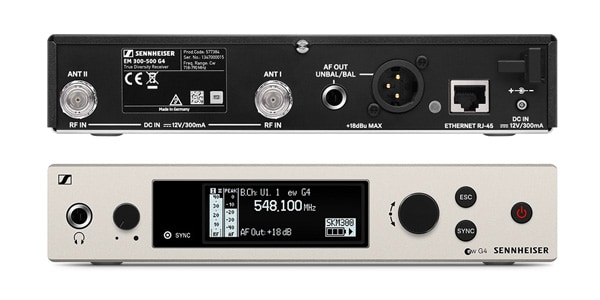

●Receiver EM 300-500 G4
Model number: EM 300-500 G4
Modulation: Wideband FM
Frequency range: 806.125-809.750 MHz
Receiving frequency: 30 frequencies, switched at 125kHz intervals
Receiving method: True diversity
Intermodulation attenuation: 70 dB or more
Blocking: 75 dB or more
Compander: Sennheiser HDX
Squelch: 5-25 dBμV (adjustable in 2 dB steps)
Pilot tone squelch: switchable on/off
Antenna input: 2 x BNC connector
AF output level (peak deviation, 1kHz): 6.3 mm jack: +12 dBu / XLR -3M: +18 dBu
AF output adjustment range: 48 dB (3 dB steps)
Signal-to-noise ratio (1mV, peak deviation): 115 dBA or more
Power supply: 12 V DC
Current consumption: 350 mA
Dimensions: Approx. 202 x 212 x 43 mm
Weight: Approx. 980 g

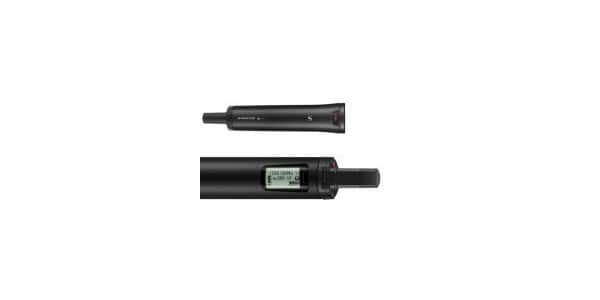

●Transmitter SKM 300 G4-S
(※Microphone head sold separately)
Model number: SKM 300 G4-S
Frequency range: 806.125-809.750 MHz
Transmitting frequency: 30 frequencies, switching at 125 kHz intervals
RF output: 10 mW
Compander: Sennheiser HDX
Mute switch: AF/RF mute, PTT, PTM, disabled, switchable
Pilot tone squelch: switchable on/off
Input sensitivity adjustment range: 48 dB (adjustable in 6 dB steps)
Signal-to-noise ratio (1 mV, peak deviation): 115 dBA or more
Power supply: 2 1.5 V AA alkaline batteries or BA 2015 rechargeable battery
Operating time: typically 8 hours
Dimensions: approx. ? 50 x 265 mm
Weight (including batteries): approx. 390 g

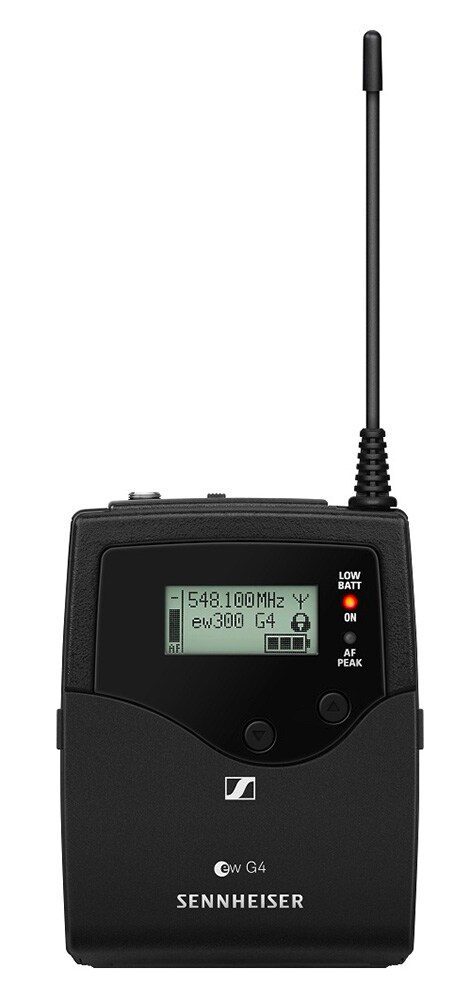

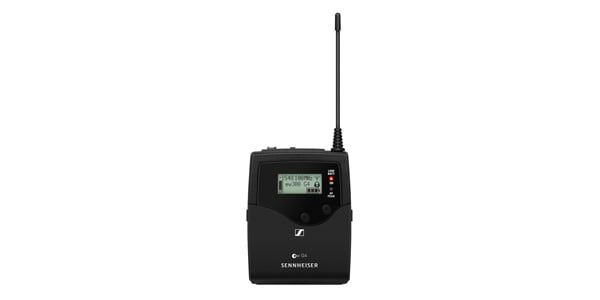

Transmitter SK 300 G4-RC
Model number: SK 300 G4-RC
Frequency range: 806.125-809.750 MHz
Transmitting frequency: 30 frequencies, switching at 125 kHz intervals
RF output: 10 mW
Compander: Sennheiser HDX
Mute switch: AF/RF mute, disabled, switchable
Remote switch (RMS1) connection: supported
Pilot tone squelch: switchable on/off
Input connector: 3.5 mm jack
Input sensitivity adjustment range: 60 dB (adjustable in 3 dB steps)
Signal-to-noise ratio (1 mV, peak deviation): 115 dBA or more
Power supply: 2 1.5 V AA alkaline batteries or BA 2015 rechargeable battery
Operating time: typically 8 hours
Dimensions: approx. 82 x 64 x 24 mm
Weight (including batteries): approx. 160 g
