SENNHEISER / 508044

A set of two radios: a handheld radio and a rack radio made by SENNHEISER. Uses a half-rack size receiver with selectable B-type 30ch. Ideal for meetings, classes and speeches. Up to eight units can be used simultaneously. Equipped with a scanning function to avoid radio interference. Head sold separately.

◆Base set-SKM
A two-piece set consisting of a handheld (sender) and a rack (receiver). Head sold separately.

■Features
- For meetings, classes and speeches. Speech model for facilities
・Professional model that does not compromise on functionality or sound quality
・Half-rack size receiver with B-type 30ch selectable
・Up to 8 units can be used simultaneously
・Easy setup with infrared sync between transmitter and receiver
・Equipped with scan function to avoid radio interference
・Detailed display of transmitter battery level and other status on receiver OLED display
・Equipped with receiver headphone monitoring terminal
・Comprehensive monitoring and control of multiple systems using Control Cockpit software
・Handheld transmitter with hand switch
・Lightweight and sturdy metal housing
・Maximum 8 hours of operation with 2 AA alkaline batteries
・Compatible with optional BA 2015 rechargeable battery

■Package contents
1 EM 300-500 receiver
1 AC adapter (NT 2-3)
2 rod antennas
1 GA 3 rack mount kit
2 dry batteries
1 SKM 300-S transmitter
1 microphone holder *Microphone capsule and microphone sold separately.

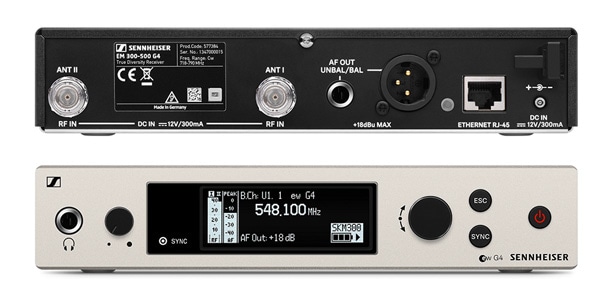

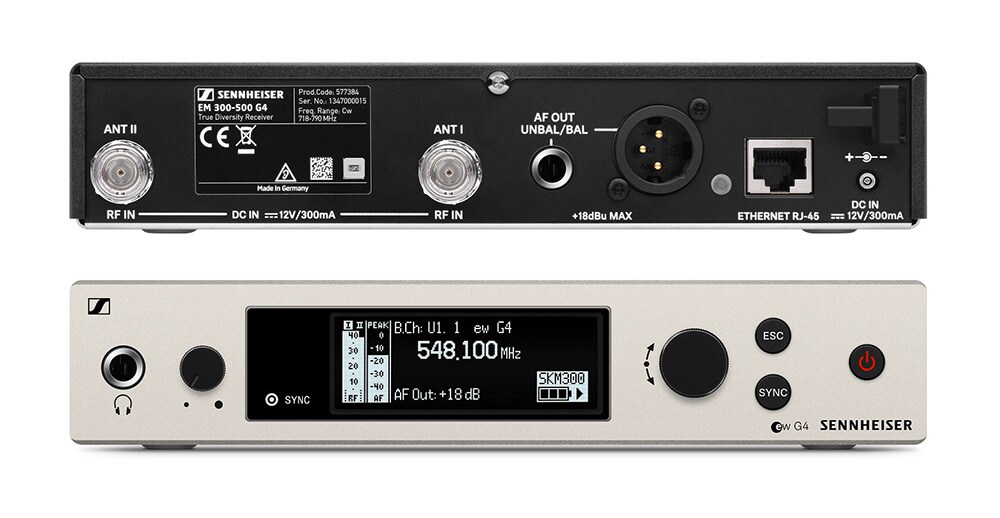

●Receiver EM 300-500 G4
Model number: EM 300-500 G4
Modulation: Wideband FM
Frequency range: 806.125-809.750 MHz
Receiving frequency: 30 frequencies, switched at 125kHz intervals
Receiving method: True diversity
Intermodulation attenuation: 70 dB or more
Blocking: 75 dB or more
Compander: Sennheiser HDX
Squelch: 5-25 dBμV (adjustable in 2 dB steps)
Pilot tone squelch: switchable on/off
Antenna input: 2 x BNC connector
AF output level (peak deviation, 1kHz): 6.3 mm jack: +12 dBu / XLR -3M: +18 dBu
AF output adjustment range: 48 dB (adjustable in 3 dB steps)
Signal-to-noise ratio (1mV, peak deviation): 115 dBA or more
Power supply: 12 V DC
Current consumption: 350 mA
Dimensions: Approx. 202 x 212 x 43 mm
Weight: Approx. 980 g

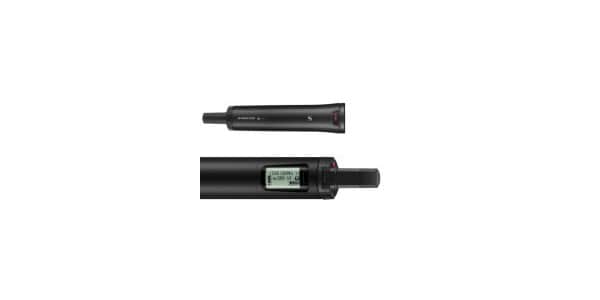

●Transmitter SKM 300 G4-S
(※Head not included)
Model number: SKM 300 G4-S
Frequency range: 806.125-809.750 MHz
Transmitting frequency: 30 frequencies, switched at 125 kHz intervals
RF output: 10 mW
Compander: Sennheiser HDX
Mute switch: AF/RF mute, PTT, PTM, disabled, switchable
Pilot tone squelch: switchable on/off
Input sensitivity adjustment range: 48 dB (adjustable in 6 dB steps)
Signal-to-noise ratio (1 mV, peak deviation): 115 dBA or more
Power supply: 2 1.5 V AA alkaline batteries or BA 2015 rechargeable battery
Operating time: typically 8 hours
Dimensions: approx. ? 50 x 265 mm
Weight (including battery): approx. 390 g
